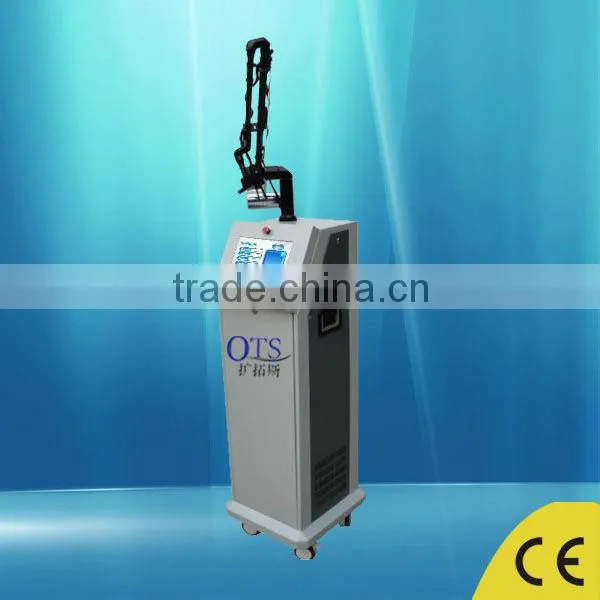

CO2fractional Laser &RF-CO2 Fractional Laser

CO2fractional Laser &RF-CO2 Fractional Laser thumbnail-1
CO2fractional Laser &RF-CO2 Fractional Laser photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Laser Type:
CO2 Laser
Q-Switch:
No
Style:
Stationary
Contact Supplier Request Quote Chat Now
Beijing Quartuslaser Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Laser Type CO2 Laser
Q-Switch No
Style Stationary
Certification CE
Place of Origin Beijing, China
Brand Name QTS
Model Number QTS-GL60
Feature Pore Remover, Pigment Removal, Pigmentation Correctors, Skin Tightening, Whitening, Skin Rejuvenation, Wrinkle Remover, Tattoo Removal, Acne Treatment

Specifications

laser wavelength& three output mode Ultra pulse contiunous pulse dot matrix out put

≤CO2 Fractional laser & RF---CO2 Fractional laser



Working theory



Fractional laser effect principle is "focal photothermal effect".Skin tissue has ability to repair itself .The skin was injury by trauma .But it could heal itself .The wound area is too large,the results of repair of scar formation . The would is small ,the skin can completely recover . Fractional laser effect to every skin only on one of the small region to generate thermal stimulation,retaining portion of skin is not affected,the role of tissue to the skin to stimulate collagen receipt hyperplasia,and no effect of skin tissue can be used as thermal diffusion region ,avoid the possibility of thermal injury and other skin firming pores purpose.



Treatment range

Mainly used on local and facial skin ,dispel scars ,wrinkle ,acne ,tattoo,stains ,pigmentation.Repair lighting ,aging skin ,improve uneven ,rough ,relaxation skin , big porse ,moles ,warts ,acne ,skin tag .Treatment of hemanginoma . Coagulation &Vaporization.

Perfect skin ,whitening wrinkle removal ,acne prevention ,facial beauty ,for human tissue burning ,vaporization and coagulation .Mainly used for local and facial skin ,large pores

,rough skin ,the skin relaxation phenomena ,especially applicable to dispel various scars and wrinkles ,acne ,tattoo ,stains ,and pigmentation ,as well as on the surface of any part of a variety of moles ,warts acne ,skin tag ,treatment of hemangioma.

Technical parameters

Laser wavelength :10.6μm±0.1μm

Three output mode :Ultra pulse ,continus output and dot matrix output

The output terminal of power:1~30W

Lattice point output energy of each :5mj--100mj(16 speed adjustable )

Fractional output total energy:125mj+1ki

Scanner focal length :f = 50mm(FFLS) or f=100mm(HFLS)

Focal spot diameter:≤0.1mm   ≤0.2mm ( FFLS) (HFLS)

Treatment of depth :2000μm(FFLS),600μm (HFLS)

Guidelines for glory :Green semiconductor laser(532nm,≤5mw)

System control :microcomputer control

Exhaust system :built -in smoke system

Cooling system :built -in closed water cooling circulation system

Display :interface(10.4 inch color touch screen )

Light guide system :2 joint torsion spring joint arm (export)

Way of working :galvanometer scanning (lattice)

FFLS scan size : a maximum of 15 15 mm

HFLS scan size : a maximum of 20 20 mm

The oval ,triangular (standard and adjustable)

Scan rate :>10m/s continuous :1~30W,every step 1W adjustable

Pulse frequency modulation : 0---999Hz,every step 1HZ adjustable

Environment temperature :5°c~40°c

Relative humidity :≤80%

Power supply :220V,50Hz,3A

Dimensions:450mm550mm1400mm

weight :40kg

Scanning pattern :rectangle ,square ,triangle ,circle ,ellipse ,straight line ,hexagon

Pulse interval :0---5000ms ,every step 1ms adjustable





CO2fractional laser &RF-CO2 fractional laser

CO2fractional laser &RF-CO2 fractional laser



Curative effect contrast

CO2fractional laser &RF-CO2 fractional laser
