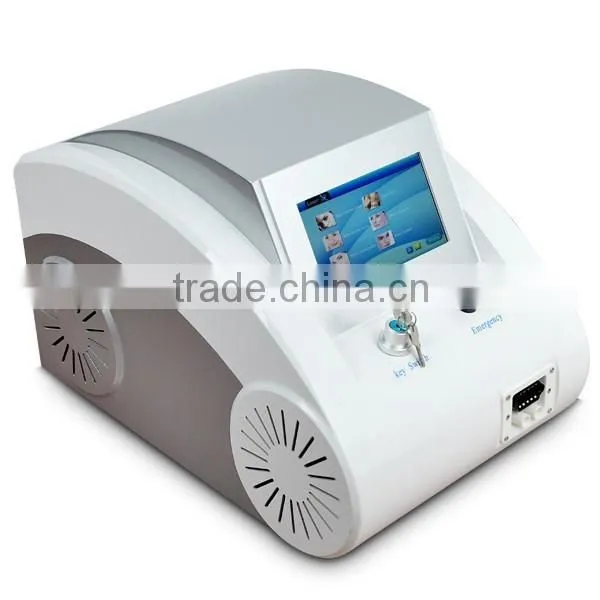

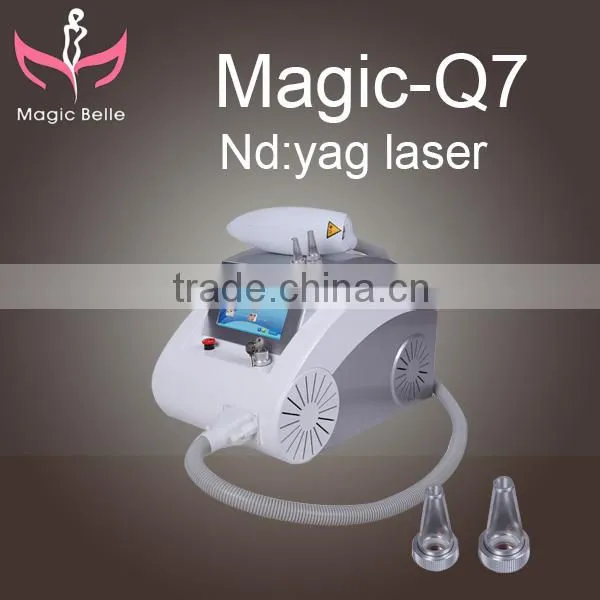

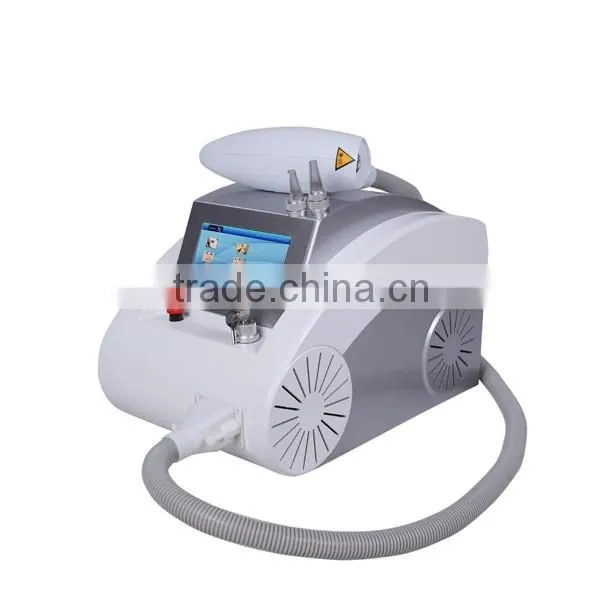

Beauty Salon Preferred!!!Portable Q Switched Nd Yag Laser For Tattoo Removal

         Beauty salon preferred!!!Portable Q Switched Nd Yag Laser For Tattoo Removal

Product Description

The Q-switched ND YAG laser takes specific wavelengths light in high energy, which are absorbed by the pigment and shatters the pigment into particles, breaking them into very small fragments , some parts will

consequently bounce out of the skin and the other parts will spilt even further into minute particles; which eventually will be engulfed by the phagocytes and ultimately gets eliminated by the lymphatic system.

working principles

Laser Tattoo Removal uses theory that the specific wave length (1064nm or 532nm) of laser will be absorbed by specific pigment.

The high energy of laser, absorbed by the specific pigment, could cause the pigment to swell and explode, partial fragments of the pigment will be shot out of the body,

and the other pigment fragments will be removed by your body's immune system over a period of time.

Because the normal skin absorb little energy induced by laser at the wavelength of 1064nm or 532nm, so the laser could selectively targets and destroys tattoo pigments while leaving.

The energy of Q-switched ND: YAG laser can be absorbed by the blue and black melanin.

The melanin will be fragmented so small that they can be metabolized by the lymphatic system or egested out of body.

Thus the tattoo or other pigmentations will be removed without damage to the normal tissue.

The treatment is safe and convenient without downtime and side effects.

Application

1064nm wavelength tip:mainly cure the black,blue ,cyan, bluish violet old red tattoo and pigments;

532nm wavelength tip: mainly cure the red,green,brown colored tattoos and pigments;

BD-LS wavelength tip: whitening , shrinking pore , remove acne , remove blackhead.

Machine Advantages

1.Water flow and temp monitor ,it will automatically stop working when water temperature is in excess of the preset temperature or machine has little water flow.

2.Infrared ray aiming: imported infra-red indicator greatly increases the spot accuracy and the efficiency, saving cost accordingly .

3.Multilingual arbitrary languages selective .

4.New High power hand piece, strong output energy .

5.Integrated laser cavity, anti-vibration and anti-swing, no beam deflection.

6.Green Power Supply, Europe CE standard, integrated design, easy maintenance .

7.Adopt the world’s most advanced ABS insulation material, anti-interference capability and portable type easy for remove.

8.Q-switched without permanent replacement .

9.Remove pigmentation without side effects or scar .

10.Adopt imported lamp with original packaging, Greatly improve the whole life .

11.Adopt special diffuse reflection cavity, high reflection efficiency, high power endurance .

 Technical Specifications

How to choose laser

Click on Laser into the mode selection.

Enter the laser Treatment Operation screen:

Parameter adjustment of the laser treatment

Laser treatment projects operating practices

1064nm: regulation of energy to start with a laser gun head alignment operation portion emitting (the distance between the gun and the skin of approximately 10cm), one portion followed by a portion emitting until you see can be micro oozing (smear repair factor repair). 532nm:regulation of energy to start with a laser gun head alignment operation portion emitting (the distance between the gun and the skin of approximately 10cm), one portion followed by a portion emitting until you see can be micro oozing (smear repair factor repair). BD-LS(Black doll):Clean skin, daub medical carbon on the face (wait for 8-10 minutes).let it absorbed into the pores. until the medical carbon become the smoke Disappear . Then clean the face can be. Note:1064nm,532nm treatment 48 hours can not in contact with water, the Black doll treatment 24 hours can’t in contact hot water.

Operation skills for laser tattoo removal system

Requirement before treatment:

1) Beautician should make record for customers, fully understanding customers’ skin condition and chose the right laser mirror,

    at the same time communicate with your customer freely to let she or he feel relax.

2) Clear treating part skin and wait until it is totally dry and sterilize every apparatus.

Requirement before treatment:

1. Preparation before treatment by:

1) No inflammation in the treatment part.

2) No treatment for pregnant woman.

3) Fomentation on the treatment part avoid skin dehydration.

4) No cosmetic left ,clean the treatment part.

5)Taking photo before treatment, compare the effect after operation.

2. Skin appearance after treatment:

1) Reddish swelling on treatment part on the moment, it will disappear shortly.

2) To some special customers need to be higher, when you make the Volt too high, there comes the scab, but it will drop off naturally

     after 7 days, not to scratch it, skin becomes normally about 2 days. Taking some Vitamins can lighten the pigment circumfluence.

     Usually there is a feeling of scorching or slight bleeding, it is normal and no scar.

3) When the scabs fade away, the treatment part shows pink, 2-3 weeks later it appears coffee color, and 1-2 months later recover.

3. Care after treatment:

1) Can wash the skin with water or Non-stimulator after treatment.

2) If there is slight bleeding when adjust the Volt higher, please wipe off and smear the Antiphlogistin (such as Illotycin) until the scar

    drops off. Not cosmetic or other medicines.

3) If the treatment parts is flush and feeling it not comfortable, can do ice compress.

4) Before the scab dropping off, the treatment part must be care not to touch water, not being scratching, avoiding certain food of hot,

     dark color of coffee, Coco Cola etc. Prohibit smoking and drinking .Let the scabs desquamate naturally not scale off in a force.

5) Not taking plenty of sports avoiding of sweat infection.

6) After the scab desquamating, No need to coat the Illotycin (Erythromycin) again, just smear the suntan lotion (SPF15 upwards) even

     in the room preventing UVA/UVB and keep along 3 to 6 months because of the treatment skin sensitivity to the sunlight. Using suntan lotion

     or umbrella preventing can improve the effect early.

7) Period for laser treatment: According to the different treatment parts and pigment dark or not, the treatment may be several times. Normally

    one period of treatment is 1-2 times, every time at 20-30 days interval. If there is no special, every 2-4 weeks go to clinic check again, if there

     is anything abnormally, please cure it early.

8) Pigment fadeaway is a slow process, for the pigmentation skin, normally it is 1-3 months. In order to get more favorable effect, repeated

     treatment should be 1-3 months interval.

Maintenance:

1. Notice to use purified water or de-ionized water, not the mineral water or tap water.

2. Be careful not to irradiate the machine avoiding the surface of machine injured.

Common Questions and Fixing:

No signal after power on. The reason is that the power plug doesn’t reach it, please directly connect the power plug.

No signal after power on because of the fuse blowing. Please replace the fuse with 5A/220V AC or 5A/110v AC.

No signal on the screen because that the Crash-stop switch being pressed. Please lift the Emergency-stop switch up.

Touch-off light is off state pressing the button on the screen when the machine is on pre-ignition. One reason is that the Xenon Lamp is damaged need

to replace a new one.

Another reason is that the life time for Xenon is full, change a new one. Water leaking out of machine, because of the impact during on shipment process.

May in the tube joint. Please call the service people to deal with it.

If you feel the energy is not big enough or the curing treatment is not well enough, the reason maybe the temperature is too higher or no water in the machine

and damaged the body machine. Please stop firstly, after half an hour starting the machine again.

Accessories

After-sale service

USERNAME:                                                                                          TEL:                                                                                                ADDRESS:

 This warranty card must be presented in conjunction with the official purchase invoice to be valid. Please fill out the warranty card, to ensure compliance

with the warranty principle subject to alteration, this card void. This card needs to be stamped with the official seal valid. The after-sales service, please

contact the company.

PRODUCT NAME:

MODLE NO:

PURCHASING DATE:

Terms of service: Free consulting services The Company at any time the phone, emial or online to answer customers' use, maintenance, repair issues.

Product within one year of free warranty service Since the date of purchase (ie equipment delivery use date), in addition to human factors (operation,

maintenance, and modification of the device structure) do not follow the product instructions, equipment problems, and can enjoy the warranty service

warranty regulations. Warranty Regulations The instrument host warranty for one year, can enjoy free repair within one year.

Other after-sales service description:

1. Malicious damage to the machine no warranty.

2.Warranty cause a malfunction due to human factors, maintenance services of the company are charged parts costs and labor costs.

3.Equipment failure, faster repair your equipment, be sure the fault conditions described clearly.

4.The Company reserves the final interpretation of after-sales service.

Parking&shipping

CE

Terms of payment

Company Information

FAQ

Q1: What about the delivery?
♥ Magicbelle reply: just depend on your actual request and door to door services by air or by sea is acceptable. Such as DHL, UPS, TNT, FEDEX… by air; and the sea transportations.

Q2: What’s the delivery time?
♥ Magicbelle reply: 3 -10 days working days, if stock enough.

Q3: How about the package?
♥ Magicbelle reply: Wooden case/ Carton/ Aluminum case (standard export packing with fully
polyfoam or pearl wool) are available.

Q4: Do you have any timely technology supports?
♥ Magicbelle reply: Professional technology supporting team will help you to solve the after sales problem. Also any questions you can contact us by telephone, viber, whatsapp, online chat (FaceBook, skype, mail) and so on.

Q5: What’s the payment method?
♥ Magicbelle reply: T/T, WESTERN UNION, ESCROW and etc.
