Home > Health & Medicine > Beauty Equipment > Skin Beauty Equipment > Real Super Fast Hair Removal OPT SHR Machine

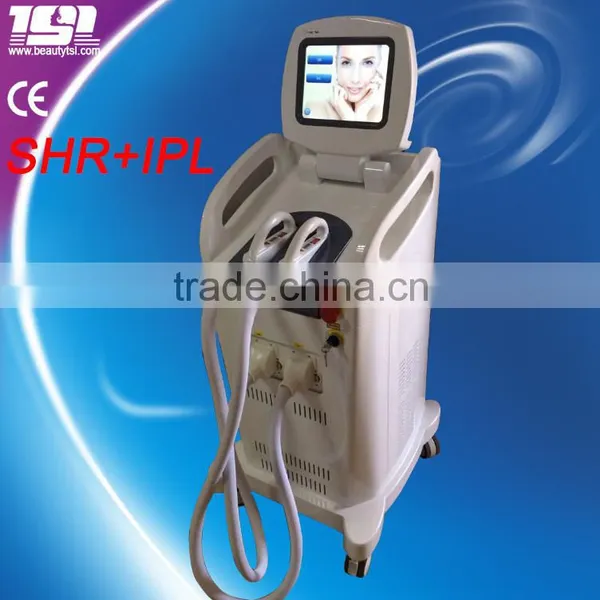

Real Super Fast Hair Removal OPT SHR Machine

Guangzhou Lingmei Electronic Technology Co., Ltd.
5Yrs
Real Super Fast Hair Removal OPT SHR Machine thumbnail-1
Real Super Fast Hair Removal OPT SHR Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
IPL+ RF:
Yes
Certification:
CE,RoHS,ISO
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
IPL+ RF Yes
Certification CE,RoHS,ISO
Place of Origin Guangdong, China
Brand Name TSL
Model Number TSL-F01 OPT SHR machine
Feature Acne Treatment, Anti-Puffiness, Blood Vessels Removal, Breast Enhancers, Dark Circles, Face Lift, Hair Removal, Pigment Removal, Pigmentation Correctors, Pore Remover, Skin Rejuvenation, Skin Tightening, Wrinkle Remover

Product name: Real super fast hair removal OPT SHR machine

Real super fast hair removal OPT SHR machine

Advantage

OPT SHR machine

1. SHR machine is with single pulse mode can emit energy averagely.
2. SHR filtered violet light and infrared light,which will eradiate and absore water from target skin.So SHR does not have any side-effect to body.
3. Identified function makes operation simple, makes treatment safely!
4. With bigger frequency(from 1 to 10 Hz),which accelerate operation speed and short a lot of time for treatment.
5. With stationary technology &In-motion technology. Moving IPL can use less time to do treatment on back, leg and arm.

Applications

 Applications of OPT SHR machine

1.Hair Removal
Remove unwanted hair from any part of the body.
2.Skin Rejuvenation
Removal or reduction of age spots, visible blood vessels, diffuse redness and uneven pigmentation while improving skin texture.
3.Thread Vein Removal
Removal or reduction of facila thread viens.
4.Acne Clearance
Reduction of inflammatory acne when used in combination with a topical cream or gel.
5.Vascular Lesions
Removal or reduction of port wine stains, thread veins and other vascular lesions.
6.Pigmented Lesions
Removal or reduction of freckles, age spots and other pigmented lesions.



Technical Parameter

Technical parameter of OPT SHR machine

Wavelength

430nm/530nm/560nm/590nm/640nm-1200nm

Handpiece number

2 piece with 5 filters

Spot size

12*30(mm) &15*50(mm)

Cooling system

semiconductor+air+water+cooling gel

IPL light energy

1-50(j/cm²)

Pulse duration

1-10ms

Pulse NO.

1-6

SHR pulse duration

1-7ms

SHR frequency

1-10HZ

SHR energy

1-50J/CM2

Skin cooling

-4°c-10°c

Display

10.4″color touch screen

Output power

2500W

Voltage

110v,50hz or 220v,60hz

Machine Size

(L*W*H):42cm*38cm*90cm

Net weight

60kg

Gross weight

91kg

Package size

69cm*64cm*102cm



Wavelength Functions

Wavelength

Treatment of OPT SHR machine

430-1200nm

Acne removal

480-1200nm

Age spots, sun spots & pigmentation removal, skin rejuvenation

530-1200nm

Freckles removal, Skin rejuvenation

560-1200nm

Whitening skin, Skin rejuvenation

580-1200nm

Vascular removal, fade melasma, skin rejuvenation

640-1200nm

Thick Hair removal

690-1200nm

Soft Hair removal

How to use

 Hair removal of OPT SHR machine

1. Cut or shave hair to 1-2mm or ask patients to shave at home 2-3 days before treatment.

2. Clear treatment area.

3. Turn on machine,

1). Use SHR, adjust pulse width at 7ms, frequency 5HZ, energy 10J/cm2.

2). Use normal hair removal treatment, put the 640nm or 690nm filter into the slot, select

"hair removal",adjust the parameter, set it to ‘ready’ .

4. Put cooling gel on treatment area about 2mm.

5. Wear protect goggles for patient and operator.

6. Shot the treatment area, let the crystal tip to touch cooling gel, You are permitted to have

1/3 overlapping on treatment area.

7. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients

   feel warm or hot, you may put ice bag on treatment area until heat disappear.

Skin rejuvenation

1. Clear treatment area.

2. Turn on machine ,put the 560nm filter into the slot, select "skin rejuvenation",adjust the

parameter, set it to ‘ready’ .

3. Put cooling gel on treatment area about 2mm, you are suggested to put cooling gel in refrigerator to keep temperature of gel during 0-4°C.

4. Wear goggles for patient and operator

5. Shot the treatment area, let the crystal tip to touch cooling gel. You are permitted to have

1/3 overlapping on treatment area.

6. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients

   feel warm or hot, you may put ice bag on treatment area for 30 minutes until heat-feeling

   disappears.

Pigmentation Therapy

1. Clear treatment area.

2. Turn on machine ,put the 480nm or 530nm filter into the slot, select "pigmentation

therapy",adjust the parameter, set it to ‘ready’ .

3. Put cooling gel on treatment area about 2mm, you are suggested to put cooling gel in

   refrigerator to keep temperature of gel during 0-4°C.

4. Wear goggles for patient and operator

5. Shot the treatment area, let the crystal tip to touch cooling gel. You are permitted to have

1/3 overlapping on treatment area.

6. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients

feel warm or hot, you may put ice bag on treatment area for 30 minutes until heat-feeling

disappears.

Vascular Therapy

1. Clear treatment area.

2. Turn on machine ,put the 580nm filter into the slot, select "vascular therapy",adjust the

   parameter, set it to ‘ready’ .

3. Put cooling gel on treatment area about 2mm, you are suggested to put cooling gel in

   refrigerator to keep temperature of gel during 0-4°C.

4. Wear goggles for patient and operator

5. Shot the treatment area, let the crystal tip to touch cooling gel. You are permitted to have

1/3 overlapping on treatment area.

6. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients

feel warm or hot, you may put ice bag on treatment area for 30 minutes until heat-feeling

disappears.

Acne Therapy

1. Clear treatment area.

2. Turn on machine ,put the 430nm filter into the slot, select "acne therapy",adjust the

parameter, set it to ‘ready’ .

3. Put cooling gel on treatment area about 2mm, you are suggested to put cooling gel in

refrigerator to keep temperature of gel during 0-4°C.

4. Wear goggles for patient and operator

5. Shot the treatment area, let the crystal tip to touch cooling gel. You are permitted to have

1/3 overlapping on treatment area.

6. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients

feel warm or hot, you may put ice bag on treatment area for 30 minutes until heat-feeling

disappears.



Wrinkle removal



1. Clear treatment area.

2. Turn on machine ,put the 580nm filter into the slot, select "wrinkle removal",adjust the

parameter, set it to ‘ready’ .

3. Put cooling gel on treatment area about 2mm, you are suggested to put cooling gel in

refrigerator to keep temperature of gel during 0-4°C.

4. Wear goggles for patient and operator

5. Shot the treatment area, let the crystal tip to touch cooling gel. You are permitted to have

1/3 overlapping on treatment area.

6. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients

feel warm or hot, you may put ice bag on treatment area for 30 minutes until heat-feeling

disappears.


360° show

 Real super fast hair removal OPT SHR machine

Real super fast hair removal OPT SHR machineReal super fast hair removal OPT SHR machineReal super fast hair removal OPT SHR machineReal super fast hair removal OPT SHR machine

Real super fast hair removal OPT SHR machineReal super fast hair removal OPT SHR machine







Handpieces

 Real super fast hair removal OPT SHR machine

Real super fast hair removal OPT SHR machineReal super fast hair removal OPT SHR machineReal super fast hair removal OPT SHR machine
