2016 new design IPL/Laser IPL machine/permanent IPL hair removal

Standard wooden case or aluminum box for laser ipl machine

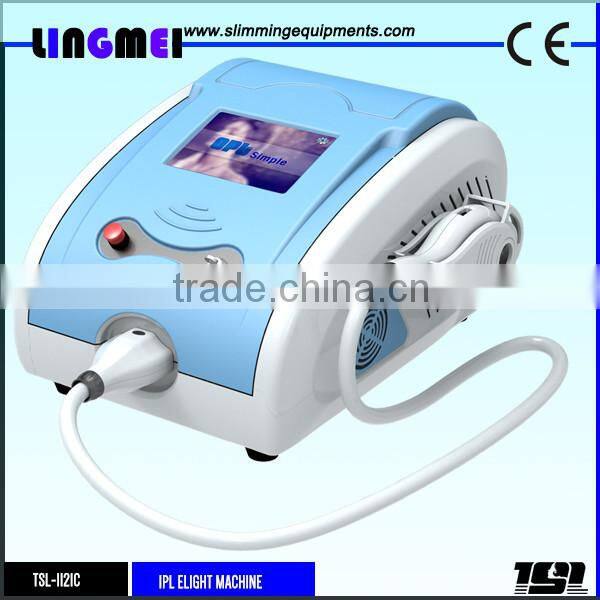

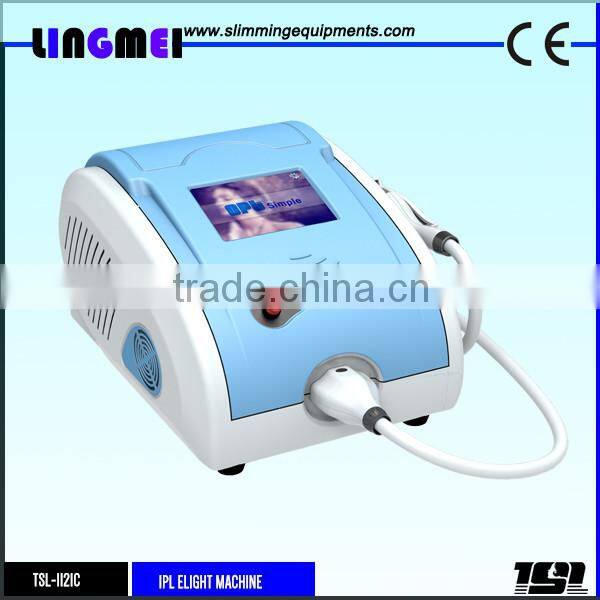

Product name:2016 new design IPL/Laser IPL machine/permanent IPL hair removal

E-Light is the first and only technology that combines optical (light) energy. Gentle pulses of targeted energy isolate the treatment area and leave the surrounding skin free from potentially harmful side effects. In addition to permanent hair reduction for most hair colors and skin types, E-Light effectively and comfortably treats rosacea, spider veins; skin imperfections caused by sun damage, age spots, enlarged pores and uneven skin tones. A series of E-Light treatments will leave your skin smoother clearer with a tighter more youthful appearance.

1.1 Device Structure of laser ipl machine

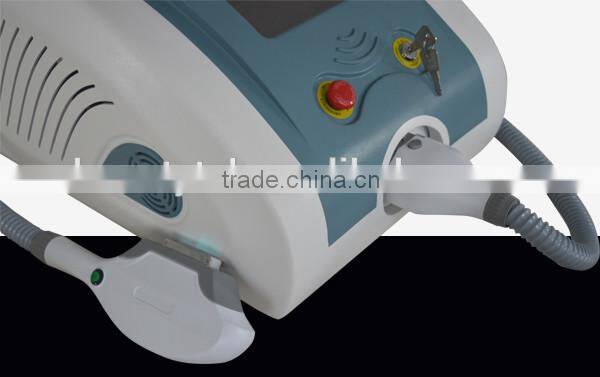

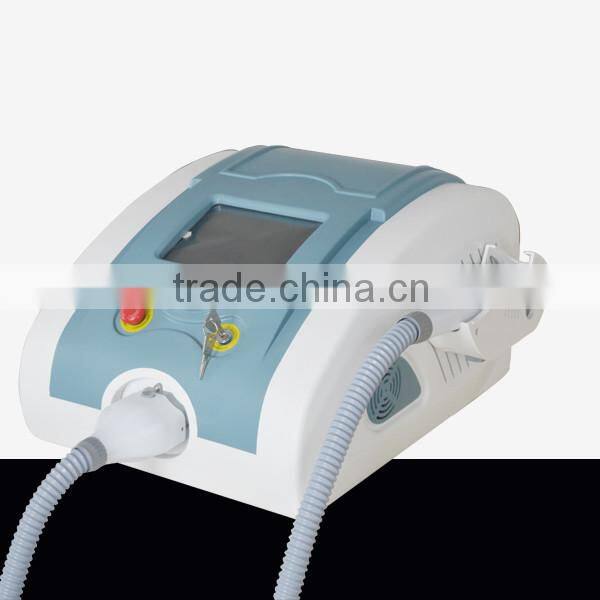

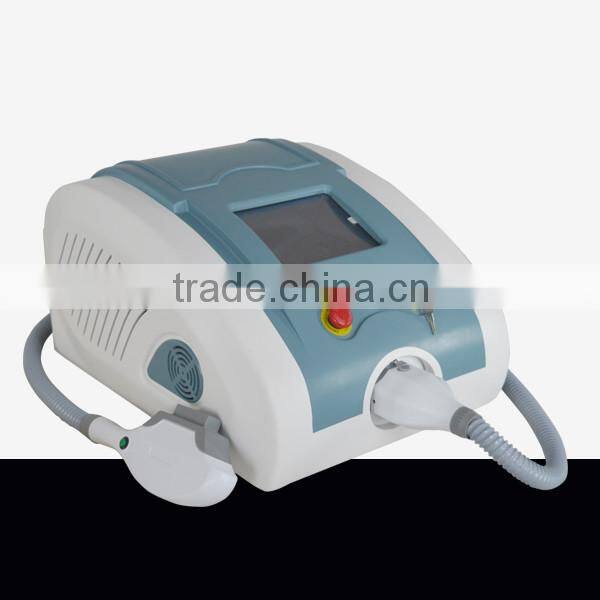

This device is composed of three parts: (1) main unit, (2) control panel, and (3) the E-Light treatment handpiece

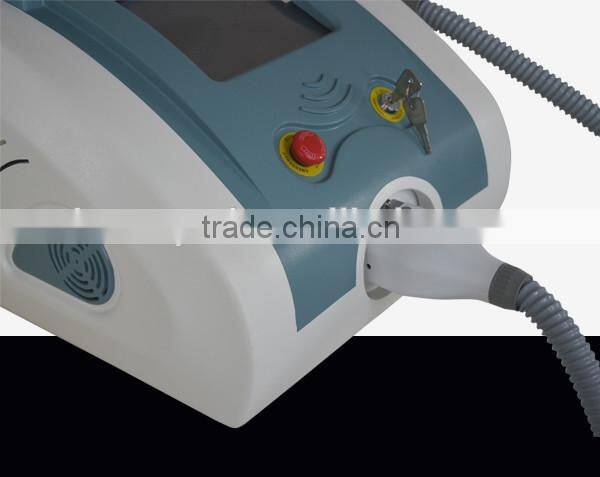

The control panel includes the color 8.4” LCD screen, the power switch and emergency shut off switch. The LCD screen shows the work mode and the parameters of the system.

1.2 Medical Use-Application Areas

1. Permanent hair removal

2. Skin rejuvenation

3. Reduction of pigmented lesions

4. Wrinkle removal

5. Acne Therapy

6. Freckle, vascular lesions and facial blemish removal

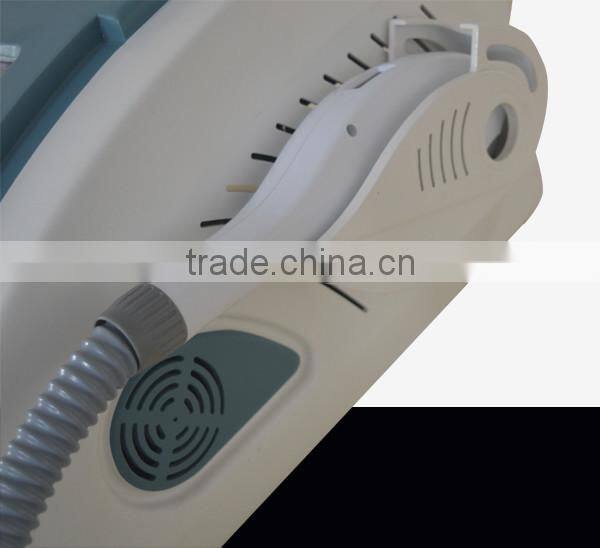

1.3 Main Unit

The Main unit is the integral part of this system; it consists of the following parts.

1.The Power supply module: regulates electrical supply to the entire system.

2.The Control module: Regulates and coordinates the various components of the system for optimum performance.

3.The display module: Displays various information of the system and accept users instruction.

4.High current capacitors: Delivers adequate electrical energy to guarantee sufficient power during operation.

5.Cooling system: Maintains a stable thermal environment for optimum performance.

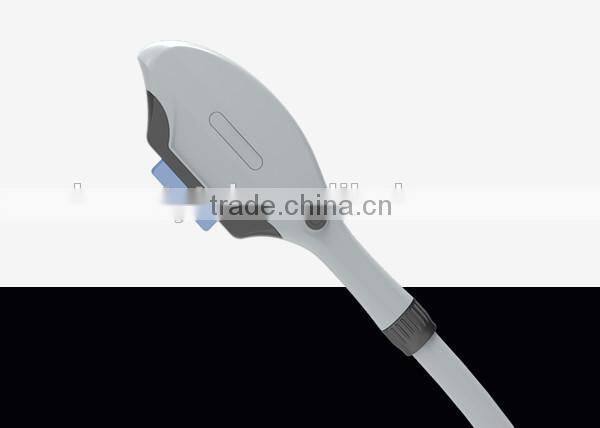

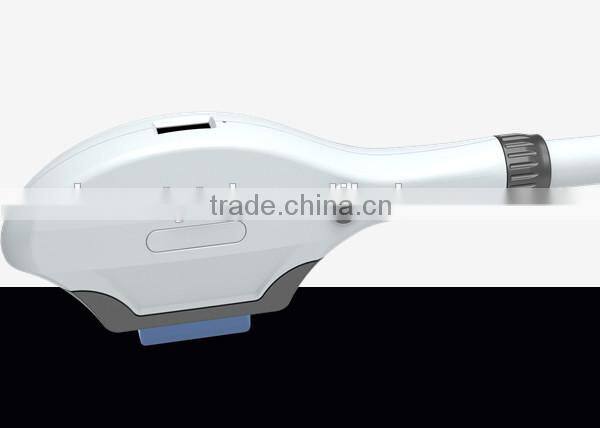

1.4 The E-Light+RF treatment handpiece

The E-Light handle consists of a (1) Cable housing: this contains the power cable, liquid coolant tubing, control data cable; (2) E-Light head: this houses the control switch, flash lamp, sapphire crystal, filter piece and electronic semi-conductor cooling system.

Pressing on the trigger on the E-Light treatment head discharges the flash lamp at the settings as displayed on the control panel. Pushing down the foot switch like-wise discharges the device (on selected models only). The supplied sapphire crystal measures 12mmx 35 mm and is superior in both clarity and longetivity, thereby increasing both the efficiency of the flash lamp and lifespan of the treatment head. It is very important to keep the sapphire crystal clean. Make sure to clean this with a soft cloth after each treatment. A disinfectant such as alcohol can be used between treatments. Dried gel on the crystal filter will reduce efficiency of the flash lamp. Replace the plastic guard over the filter to prevent damage. In the event that the sapphire crystal is damaged (i.e. nicked or cracked) contact your dealer immediately.

1.5 Protection Glasses

One pair of protective glasses is provided with the device. The opaque glasses are to be worn by the patient and the filtered 430-1200 nm glasses are to be worn by the operator. Despite wearing the protective glasses, avoid staring directly into the intense pulses of light during the treatment. Only personnel wearing protective glasses may be allowed to observe the treatment.

1.6 Light-coupling Gel

The light-coupling gel is used to maximize the conduction of light from the flash lamp to the skin. The light-coupling gel must be clear/transparent and not colored/tinted. Colored gels absorb light therefore reducing the effectiveness of the treatment. The light-coupling gel must be chilled but not frozen. Frozen gel diffuses the light emitted by the flash lamp reducing its efficacy. Light-coupling gels must be non-alcohol based. The E-Light produces considerable heat; flammable material must be kept clear of the treatment area.

1.7 The Environment Requirements of laser ipl machine:

Working temperature scope           : +15~+30°C

Relative humidity scope                  : 30%~80%

Atmospheric pressure barometric    : 86kpa -106kpa

The store environment temperature : +5°C ~+55°C

Power supply                                   : 230V AC , 50/60Hz,  10A;

                                                          or 115V AC , 50/60Hz, 20A

1.8 detailed list of equipment of this IPL hair removal:

1.Main host

2.The E-Light handpiece X1

3.Protective glassesX1

4.Protective goggleX1

5.Power cableX1

6.Foot switchX1

7.FunnelX1

8.Plastics hoseX1

9.Key X2

1.9 System Trouble Shooting

1.10 Parameter Selection

Start with a low fluence (i.e. 25 J/cm²). Do a test shot in an inconspicuous area. Evaluate patient response then gradually increase the fluence by increments of 3 J/cm² when a fluence of around 30 J/cm² is achieved, increase by increments of 1 or 2 depending on patient’s response. We strongly recommend that for the 1st treatment, the fluency level be set initially at least 8 to 10 joules/sq cm. below the suggested level of treatment parameter sheet.

Please note that treatment over bony areas such as the malar area, forehead and shins produces more discomfort so reduce the fluence by 2-3 joules. When treating very densely pigmented areas reduce fluence by 2-3 joules.

1.11 Specification of laser ipl machine:

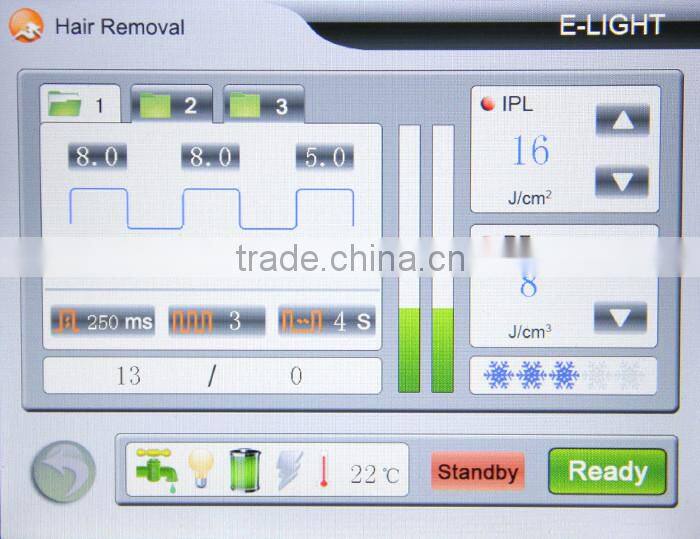

1.12 operation interface:
