Treatment characteristics
1.Terminator 808 + combines the benefits of all 3 wavelengths, It is groundbreaking for the laser hair removal industry.
2. combined wavelengths covering the optimal treatment spectrum 808nm 755nm 1064nm, the treatment Characteristics for different hair
3.Virtually painless
4.All skin types, even tanned skin
Product Information
Hair Removal: the unwanted hair under arms, legs, lips, or other body parts.
Wavelength |
808nm±5nm |
Energy |
3 – 40 J/sqm |
Spot Size |
10x14 sqmm |
Frequency |
1-12Hz |
Pulse Duration |
10-300ms |
Cooling |
5 degrees |
Output Power |
400w |
Electricity |
220V/50HZ, 110V/60HZ |
Warranty |
1 year |
808 diode laser hair removal machine Theory :
The System use special laser with long PulseWidth 808nm, can penetrate to hair follicle.
Using Selective light absorption theory, laser can be preferentially absorbed by the melanin of the
hair And then heating the hair shaft and hair follicle, moreover to destroy the hair follicle and oxygen
Organization around hair follicle. When laser outputs, system with special cooling technology, cool the
skin and protect skin from being hurt and reach a very safe and comfortable treatment!
Features:
1. High power 808nm diode laser, easily to hair removal, no pains, feel cool and comfortable.
2. The sapphire contact cooling system cooling patent technology security, no damage to the skin.
3. Good for all skin types
4. Treatment faster than IPL and long pulsed laser.

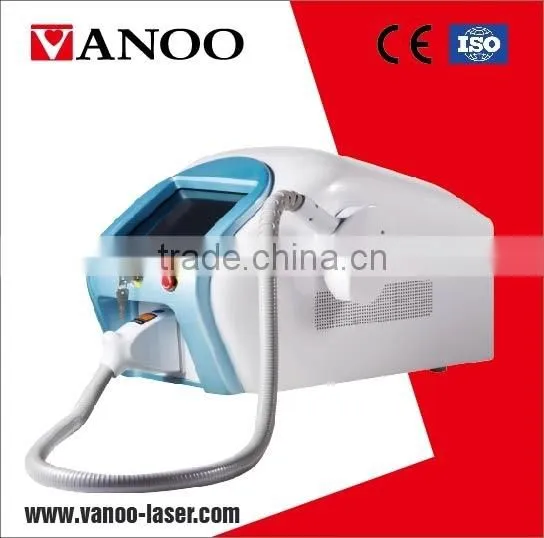

Real portable 808nm diode laser machine photo:
Real portable 808nm diode laser handle photo:
Colorful touch screen
Skin types |
In total 6 skin types for different skin treatments, operator could save the parameters with different skin types. |
Intensity |
3-40 J/sqm, the energy is real and low. All other Energy over 40J is fake or dangerous. |
Frequency |
1-12 Hz. |
Pulse Width |
10-300 ms. |
Cooling |
1-5 degrees, when operator does not shot with handpiece, the cooling degree will automatically come to “0” in 2 minutes. Strong cooling, treatment head can reach 0 ℃ within 1 second, and treatment tip is sapphire |
Temperature |
In order to keep machine safety, operator could adjust a temperature number like 35 centigrade. When machine temperature reaches 35 centigrade, machine can not shot and should have a bit rest. |
Handpiece |
This is to identify handpiece. |
Water flow |
This is to show whether water flow is smooth or not. |
Current shots |
This is to show the shots of one treatment. |
Total shots |
This is to show the shots of all the treatments. |
Some questions:
1. Why our diode laser produces extremely effective hair-free results?
Micro laser bar of our diode laser is imported from GERMANY to ensure effective treatment.
2. Why our diode laser continuous working time can reach over 4 hours and handpiece life span can reach 10million-15mimllion shots?
a) Powerful water circulation, use high powerful diaphragm pump, 4 times water pressure than normal pump.
b) Micro water channel makes ventilation better.
c) Cooling will stop working within 2 minutes when no laser shot, because continuous cooling will easy freeze inside of the handpiece, which easy damage the laser mould.
general package:
Treatment photos:
Before and after photos:
Advantage
1) Machine protections:
a) Cooling: when operator does not shot with handpiece, the cooling degree will automatically come to “0” in 2 minutes.
b) Water temperature: operator could adjust a temperature number like 35 centigrade. When machine temperature reaches 35 centigrade, machine can not shot and should have a bit rest.
c) Water flow: If water flow is not smooth, the icon of water flow will be red.
d) Handpiece: If handpiece is not well connected, the handpiece icon on screen will be red.
e) Any abnormal of above points, machine will stop work by itself.
2) Reasonable parameters:
a) Skin types: There are total 6 skin types, operator could choose different skin types for different treatments. Meanwhile, operator could also save the parameters of these skin types.
b) Intensity: It’s from 3 to 40 J/sqm, which is real and low level.
c) Frequency and energy: This 2 parameters are inverse ratio. Energy becomes higher, the frequency is lower by itself. This is to avoid high energy + high frequency to burn skin.
3) Handpiece: Germany imported micro channel bar, which could reach 10 millions shots.
4) Other functions:
a) The maximum shot number could be adjusted by software, distributor could add the maximum shots, which is good for distributors to sell more handpieces.
b) There are 6 languages for customer to choose.
Vanoo company photos:
Vanoo expo photos:
Certificates:
Why choos vanoo?
Vanoo laser has more than 10 years manufacturing experience in beauty machines in China. We produce the whole machinery with the best quality, so our largest advantage is in the quality control and every detail of product. You know it is difficult to guarantee the quality of the product, This is the difference between us and other factory. So our commitment to customers-The best quality and most reasonable price, not the lowest price.
Contact information:
Effective:
steady energy is achived by
a. Japan made Capacitors which stabilizes.
b. US made laser rod ensures 100,000,000shots.(every shot, steady energy) but during our testing it went to 10 million shots.
c. 2 filters(one to filter out all impurities out of water to keep flow in high speed, and other preventing ion influx and decreasing the chances of laser bar damage.)
d. Japan made radiator tube , so water is always clean and flows fluently giving pleasant feelings while treatment.
e. High speed DC pump made in germany, which keeps TEC chilled water flowing.
f. 2 different power supplies , one for TEC cooling system and other for pump screen and other systems.
