Armpit / Back Hair Removal IPL & RF Beauty 560-1200nm Device For Skin Firming And Facial Lifting- HS-316 Skin Rejuvenation

Working Theory:

Applying the technology of IPL and Bipolar Radio Frequency, the system acts on the entire corium layer, epidermal layer and subcutaneous tissue. On one hand, IPL destroys pathological pigments by photothermolysis effect, and stimulates the collagen and elastic fiber and gets the effect of tightening and whitening, on the other hand, biopolar RF release about 10 MHZ radio wave, high frequency vibration makes the skin molecule creating heat energy by friction, when the temperature reaches 68℃-72℃,the collagens extend will reproduce and recombine, enhance getting the effect of tightening skin and removing wrinkles.

Specifications

*Skin firming & lifting
*Wrinke removal
*Hair removal
*Factory supply directly

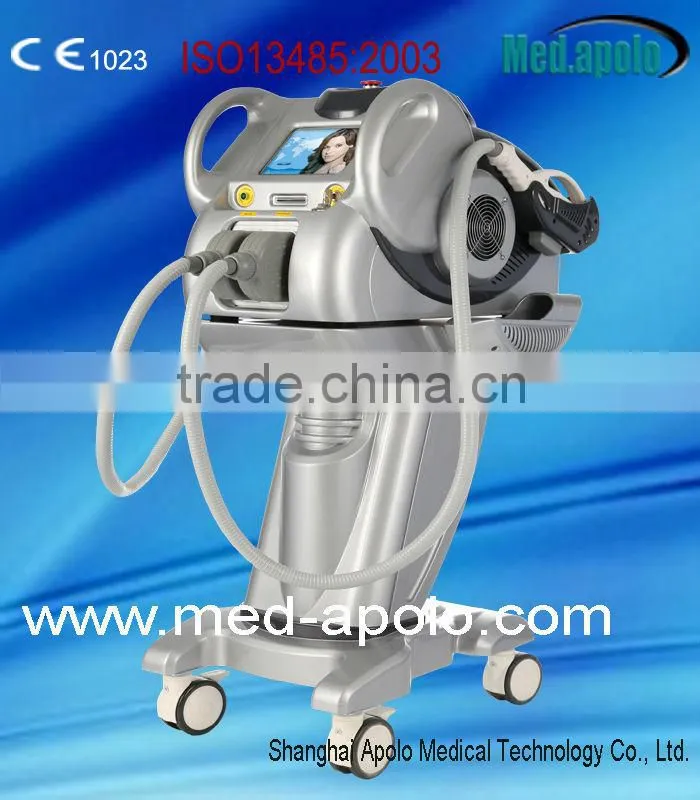

IPL & RF beauty device for skin firming and facial lifting- HS-316



Pls be noted that Shanghai Apolo welcome 3 kind of cooperation mode;



a. Dealer

b. Big Distributor

c. OEM/ODM









Principle of E-light(RF+IPL)



Based on the combination of IPL and RF, E-light could stimulate collagen in different depths of dermis tissue.

RF simultaneously releases energy to make injured tissue to be photo-pyrolyzed with theory of selectively absorbing energy by skin.

Compared with traditional beauty equipement, more energy of E-light could be absorbed by most of pigmentations without harm to normal skin.





 Applications ofIPL & RF beauty device- HS-316

1. Wrinkle dispelling, skin tightening, face lifting;

2. Removing deep-seated speckle, cuticular speckle, corium speckle, fleck, age-pigment, chloasma and so on;

3.Skin rejuvenation

4. Removing unwanted hair in different parts of body.

5.Curing acne and facial vascular lesions.





Specifications ofIPL & RF beauty device- HS-316



IPL SHR Machine advantages:

1. The pulse energy keep stable, not fade away

2. Icons combined with letters on the screen, more easy for understanding and operating

3. Two fans equiped on the sides for better heat dissipation

4. Inner the back of machine, the lines are neat, the consumables keep on the outside, for easy replacement

Model	HS-315
Handpieces	EPL IPL+RF), 1*RF (monopolar or bipolar)
IPL Wavelength	420/510/560/640/690~1200nm(standard) 480/585/755~1200nm(Optional)
IPL Spot size	12*35mm or 12*12/ 12*50/ 15*15/ 15*50mm optional
IPL light Energy	10~50J/cm2
Pulse Duration	2~20ms
Pulse Sequence	1~5 pulses
Delay time	5~60ms
RF tip size	18/28/37mm
RF frenquency	1Mhz Bipolar
RF power output	200W
2 types of wave	pulse/continue
Pulse Duration	1~5 seconds
Pulse Delay time	1~5 seconds
Contact skin cooling	-4~0
Operation interface	8" ture color touch screen
Drive Power	1,200W
Working period	Continuously working for 3~4 hours
Power supply	100/110V,50~60HZ or 230~260V, 50~60HZ
Cooling system	Air&water cooling circulation treatment head with semiconductor cooling
Floor-Standing	Optional
Dimension	63cm*35cm*42cm(L*W*H)
Weight	30kgs

Our Services

1.We will guarantee the quality of our equipment, all the beauty machines will have over 48 hours test, then the QC department check again the stability before packing.

2.If there is a deficiency, please leave message or call us, our technical department will check the machinesituation face to face on internet or you take some videos to show the situation. We will give reply and solve method within 24 hours.





Apolo Company's Advantages:



a. Located in the international Shanghai City, Apolos one of the most leading IPL and laser manufacturers in China and could offer OEM/ODM to big customers without any design fee;



b. We could offer 1~2 year warranty for parts except consumable one;



c. We're one of the limited companies in China who have the ability to dispatch our engineers to do after-service in customers' area;



d.We have free-training to customers.



  =======================================

Shanghai Apolo Medical Technology Co., Ltd.

Company Address:  3F, Building A, No.388, Yindu Road, Xuhui District, Shanghai, China.

Tel:   86-21-34622842 ext 8038

Fax:  86-21-34622840

Skype: dhu_chenjia



IPL Equipment



Treatment Principle

Precipulse IPL Therapy System follows selective photothermolysis principle.Certain wavelength that can be used in and absorbed by targeted tissues.Targeted tissues will be destroyed according to targeted chromophore's selective absorption to light.What's more,the pulse width shall be smarller than or equal to targeted tissues' thermal relaxation time,then its damage to surrounding tissues will be minimized because of insufficient time for heat delivery.
