Working Principle of laser tattoo removal :
Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch neodymium: yttrium aluminium garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.
Laser pigment removal machine though high energy of laser transient emission, make irradiated pigment particles absorb energy expansion rupture. Most or all of epidermal pigment group split into smaller tiny particles immediately ruled out in vitro. Part of dermal pigment group fragment into body macrophage phagocytic particles that ingest and excrete through the lymphatic system, thereby eliminating pigment. Due to normal tissue on 1064nm laser absorption is very few, maintaining the cell frame complete. No scar formation conditions. Because of the laser pigment removal is no damage to normal tissues, its security guaranteed maximum customer without complications from postoperative.
Gradually the pigment becomes lighter and lighter till disappearing. Gradually the pigment becomes lighter and ligher.

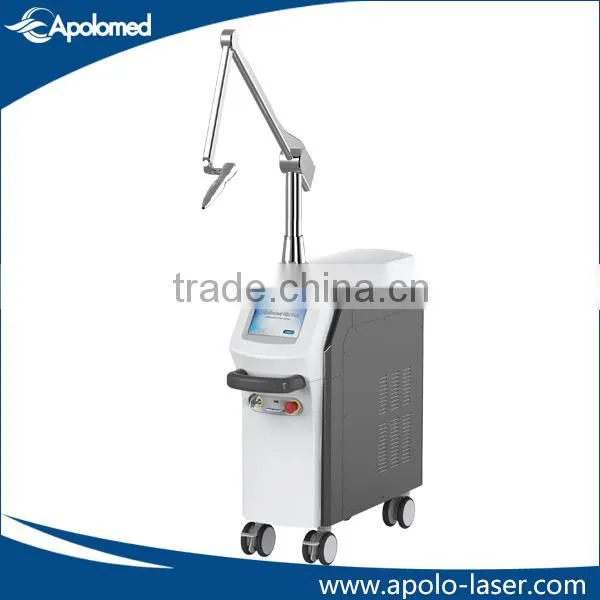

Nd YAG laser hair and tattoo removal machine by factory direct sale by Apolomed
- Factory direct sale Q-Swtich Nd:YAG laser machine
- Single laser rod and double rods optional
- Zoom lens 1~5mm and beam expander 7mm available
- Strong and Stable energy output
- Air & Water circulation cooling system with copper radiator
- Luxry 8" true color touch screen with multi-languages
- IC card and USB function supported
- 1064/532nm Q switched Nd:YAG laser tattoo removal machine and pigmentation removal
1. Principle:
Q-Switched Nd:YAG Laser system,with the advanced laser technology, could make the skin selectively absorbing certain wavelength of laser and achevie curative effect.
2. Application:
2.1 1064nm: birth mark, coffee spot, freckle, senile plaque, pigment from outside injure, black, blue tattoo, eye line, eye brown and lip line etc.
2.2 532nm: red and brown pigment, red spot and mole, capillarectasis and brandy nose.
Apolomed best laser tattoo removal machine, also used for skin rejuvenation
3. Technical specifications of Nd YAG laser hair and tattoo removal machine by factory direct sale
Laser type |
1064/532nm Q-Switched Nd:YAG Laser |
|
Wavelength: |
1064nm,532nm |
|
YAG Bar: |
φ7 / φ6+7mm ( optional) |
|
Treatment head: |
Zoom tip 1064 and 532nm, treatment tip for skin rejuvenation |
|
Pulse Width: |
<10ns |
|
Repeat rate: |
1-10HZ |
|
Spot size: |
1~5mm Applications: 1. Remove all kinds of tattoo. 2. Remove pigmentation formed by pathological changes of pigment skin and mixed color, dermis spot, fleck, black nevus, age pigment, birthmark and Nevus of Ota. 3. Remove all kinds of embroider eyebrow tattoo, embroider lip tattoo, soak lip tattoo, embroider eye line tattoo and lip line tattoo. 4.With skin rejuvenation treatment head (OPTIONAL).can fade acne scar,skin rejuvenation ,skin whitening,astringe pores ,remove black head . |
|
Energy: |
360~1200mJ (for φ7 )/600~1600mJ(for φ6+7mm) |
|
Operate interface: |
7" or 8” True color TFT touch screen |
|
Cooling system: |
Air & water circulation cooling system |
|
Power Supply: |
AC100V or 230V, 50/60Hz |
|
Dimension: |
44*37*105(L*W*H) |
|
Weight: |
35kgs |
Q-Switch Nd YAG laser handpiece and tips:
Advantages of Apolo Q-Switch Nd:YAG laser:
- Stable, reliable and powerful laser output
- Excellent performance without side effects
- Effective air and water cooling system allowing constantly working for 12 hours
- Easy after service: Software upgrade is done via USB. It is a compact and modulariged design with metal chassis. Easy for maintenance.
- Localization with 16 languages, meets the requirement of global market.
- Operations Safety: water flow and water level control system keeps laser machine in safe condition.
- Installation is simple with plug and play connectors.
- Obtained CE Medical certificate
Related products:
1.With infrared light, more accurate shoting treatment area.
2.Different machine chassis option matches style of hospital, clinic, salon, beauty spa, home use, etc.
3.Water temperature and water flow alarm system ensure long time safe working.
4.Germany imported laser rod ensures higher light transmittance, with better working performance.
Features
1. No harm to the hair follicle and normal skin, leaving no scar.
2. Short treating time and easy operation.
3.The high quality controlled solid-state laser complying with international standard
4. Computerized with big LCD and show in double language: English and Chinese.
5.Tiny sense of pain, anesthesia is unnecessary. in most cases, no side effect
6. strong cooling + plug and play handle
5.Taiwan import power supply, confirm the machine stable and strong output energy.
