Specifications
Q Switched nd yag laser tattoo removal equipment:1.Tattoo removal
2.Nevus/Pigment removal
3.Factory supply directly
Q Switched 1064/532nm nd yag laser tattoo removal equipment- Med.apolo HS-220E
Q Switched nd yag laser tattoo removl equipment Working Principle:
The special wavelength of Q-Switched ND:YAG laser can penetrate skin of human body according to the theory of “selective laser decomposing” Q-Switched ND:YAG laser removes pigment by the effect of explosive high energy from laser. Because the pigment particle in objective organization absorbs high energy, so the superficial epidermis will be bounded out of the body at the moment, while the other part of the pigment will spilt into the tiny granules that can be engulfed by macrophages of the body .After the digestion of macrophages, it can be excluded from the lymphatic system of the body. The pigment becomes shallow gradually until disappears totally.
The Q-switched ND:YAG laser absorbed the black, blue with 1064nm frequency and the red, pink, purple, brown with 532 nm frequency of the tattoo or pigmentations removed without damages to normal tissue.
pigmentation and micropigmentation removal effect:
Q Switched 1064/532nm nd yag laser tattoo removal equipment- Med.apolo HS-220E
Q Switched nd yag laser tattoo removal equipment Specifications:
1)Portable Dual 1064&532nm
2)Pulse energy-1064/532nm, 1,600/ 400mJ
3)Spot diameter: 1-7mm
4)Repetition rate:1~10Hz
5)Air Cooling & Close Water Circulation
6)Aiming beam
7)Continue working time: 3 hours;
8)2 pcs of YAG bar:¢6+¢7
9) Pulse duration: <10ns
10) Operation interface: 8" true color touch screen,
11)Power:8,000W
12) Power supply: 85~130V OR 180~260V, 50/60HZ
13) Dimension:38cm*36cm*28cm(L*W*H)
14) Weight:20kgs
Q Switch nd yag tattoo removal equipment treatment effects:
stretch mark removal machine micropigmentation and pigment removal effects:
Q Switched nd yag laser tattoo removal equipment Uses:
1- Tattoo removal (black, blue (with 1064nm) ,red, pink, purple, brown( with 532nm ))
2- Pigmented Nevus
3- Embroider eyebrows ( artificial eyebrow line made by permanent color)
4- Telangiectasia
5- Purify the café`-au-lait spots, freckles and chloasma
6- Birth marks remover

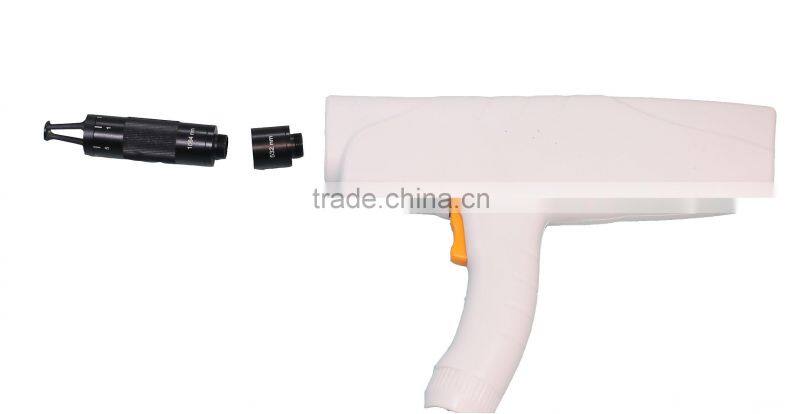

Q Switched nd yag laser tattoo removal equipment Hand pieces:
Q Switched 1064/532nm nd yag laser tattoo removal equipment- Med.apolo HS-220E
