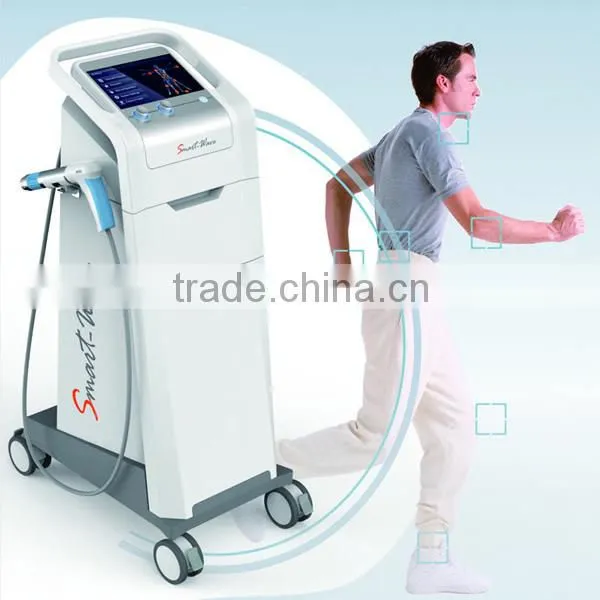

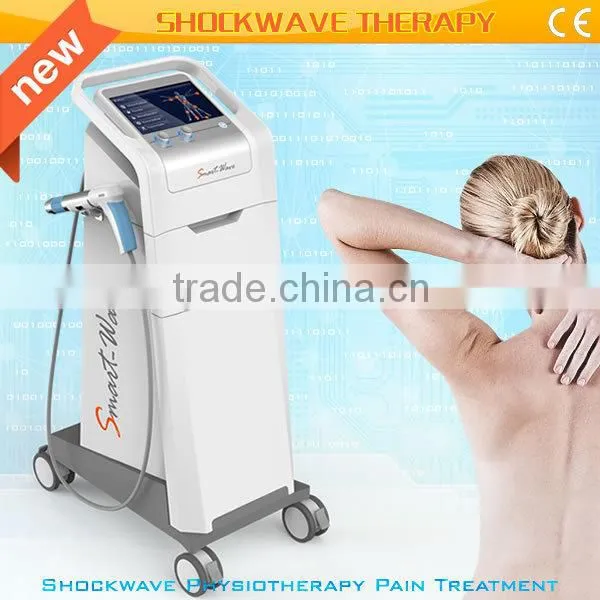

Professional pain relief patellar tendinitis acupuncture shock wave therapy equipment

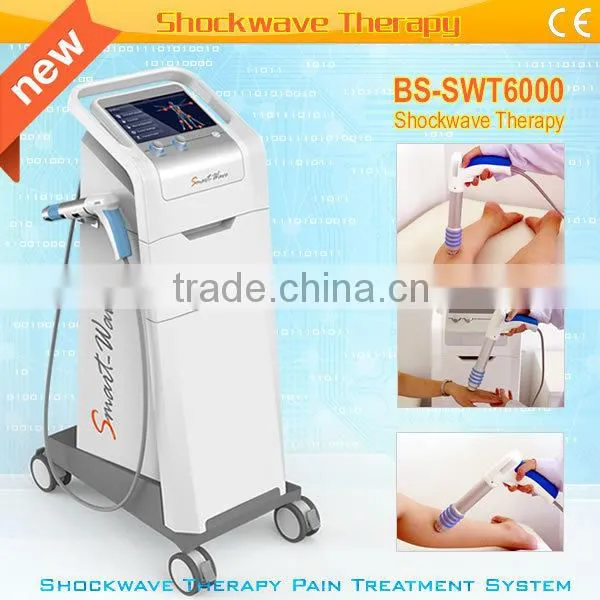

Model: Smart-Wave (BS-SWT6000)
BS-SWT6000 shockwave therapy equipment adopts extracorporal shockwave therapy (ESWT),
which is a method for the treatment of superficial orthopedic disorders developed over the
past 20 years. The extreme method of using bundled sound waves with high intensity was
selected because the mechanical/acoustic waves of force can be focused at a defined point
with a parabolic reflector to ensure that stress limits are not exceeded in the remaining tissue.
The penetrating depth can reach 0 - 60mm.

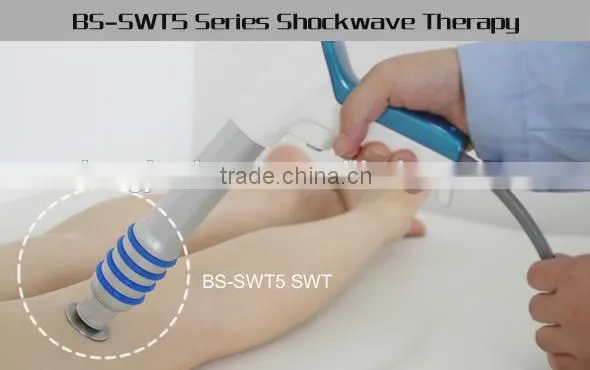

With different tips, the BS-SWT6000 shockwave therapy equipment can cover most typical
applications includes Epicondylitis, Tendonitis, Biceps Tendonitis, Achilles Tendonitis, Lower
Back Pain of muscular origin, Trigger Points, Plantar Fascitis, and aesthetic applications as
Cellulite therapy, Stretchmark elimination, Skin tightening and body reshaping.
This shock wave equipment is widely installed for treatment target which covers:
rehabilitation medicine, orthopedics, sport medicine, medical cosmetology, pain treatment (chronic/acute), dermatology, geriatrics, acupuncture (include Chinese traditional medical), etc.

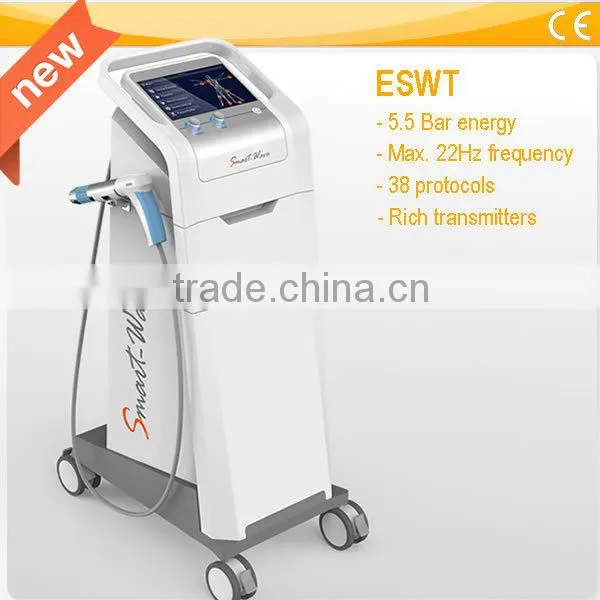

Features of this shockwave equipment:
- Ingrowth of Neovascularization, Reversal of Chronic Inflammation, Stimulation of Collagen
- Projectile creates shockwave based on highly precision controlled air-pressure
- Oil-free air compressor, low noise and durable
- Rich transmitter for various treatments
- With pre-set treatment protocols, and user customized protocols
- Energy levels from 2Bar to 5Bar, adjustable, stepping at 0.1Bar
- Frequency up to 22Hz, adjustable from 1Hz to 22Hz, stepping at 1Hz
- Big touch screen with fast-knobs to set frequency and energy instantly
Typical Indications:
Radial and ulnar epicondylitis Tendinitis of the shoulder / shoulder problems
Calcific tendinitis of the shoulder Status post muscular injury
Patellar tendinitis Patellar tendinopathy
Patellofemoral Pain Syndrome Achillodynia
Plantar fasciitis Heel spurs (spur in heels)
Myotenositis Myofascial trigger point therapy e.g. neck
Sacroiliac joint syndrome Trochanteric bursitis
Periostitis / shin splints Dupuytren's disease
Thumb basal joint arthritis / rhizarthritis
Myofascial trigger point therapy e.g. back, muscular back pain
Parameters:
| Extracorporal Shockwave Therapy |
Energy levels | 2 to 5 Bar, adjustable stepping at 0.1 Bar |
Pulse frequencies | 1 to 22 Hz |
Burst modes | 3 modes or continuous |
Adapter diameter | 35mm (15mm, 20mm, 6mm, 25mm for optional, more for ODM) |
Trigger | Trigger button on handpiece |
Control panel | 10 Inch full size colorful touch screen |
Positive shockwave counter | Yes |
Negative shockwave counter | Yes, with value preset |
Built-in programs | Indication menu with preset treatment protocols |
Weight | 48Kg |
Working Environment | 10 - 28ºC 30~80%RH,500~1060hPa |
Power Specification | AC110V - 220V/50Hz - 60Hz, 16A |
Dimension | 1120 x 350 x 380 mm |
the exhibition of the shock wave equipment the exhibition of the shock wave equipment
Get more information on this shock wave equipment, please feel free to to contact me!
