The premium Q-switched Nd:YAG Laser offers the light of single wavelength 1064/532nm with sequential and uniform energy output, which will be on the target tissue directly to shatter pigments cell, not damage any normal tissue. It is very safe and effective treatment procedure for various tattoo and pigment lesions.
By bonding technology, the treatment performance is more effective than previous, it is our newest development with advantages of no light leakage, no need to debug, lower than 1‰ maintenance and much longer life time.
Specifications
1.CE
2.Two years warranty
3.Permenant hair removal
2014 newest style long pulse nd yag laser hair removal machine
Laser hair removal machine necessary for high voltage (up to several hundred volts) on the human body is dangerous.
To avoid flammable gases in the air or mixed gas and oxygen gas mixture of nitrous oxide to use of
equipment. Some substances such as cotton, if the full contact with oxygen, due to the normal operation
of equipment, the heat generated by spontaneous combustion, so the use of the former, used to wait for
flammable cleaning solvents completely after the use of volatile.Therefore, non professionals are not free to installation and maintenance of the equipment.
No flammable and explosive materials in the site using this equipment, refrain from placing or inflammable
goods stored in the apparatus around. Flammable and explosive items include: gasoline, alcohol, narcotics,
solvents, desiccant, and ointment, such as synthetic resin.
Control System | 8.4" color touch LCD screen |
Laser Type | Long pulsed ND:YAG laser |
Wavelength | 1064nm |
Fluence | 110J/cm2 (Max) |
Pulse Width | 5ms-40ms |
Spot Size | 10mm |
Indicator | Diode Laser (650nm) |
Laser Transmission | High-power Biquartz Optical Fiber (Φ 0.9mm) |
Cooling System | Air+Semiconductor+Water Cooling System |
Voltage | 220V/110V 10A 50/60Hz |
Dimension | 35cmx83cmx87cm |
Net Weight Remove spot and nevus | 60kg |

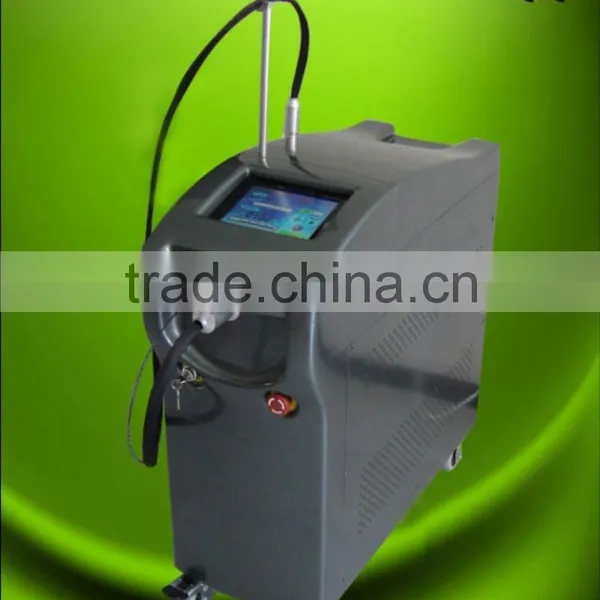

1. Fiber Support: Support the Laser Fiber in case the fiber is folded.
2. Hand Piece: Treatment Hand Piece where laser is released out.
3. Laser Fiber: Laser transmission system.
4. Key Switch: Twist the Key Switch to turn on the machine.
5. Control Panel: Main touch interface screen, set treatment parameters.
6. Emergency Switch: Press this button to stop the machine when machine is abnormal.
1. Water Flow Switch: Connect the laser machine with cooling machine via power lead.
2. Foot Switch Socket: Insert the Foot Switch connector here, pedal one Foot Switch to release laser out.
3. Water Flow In: Connect this hole with "Water Flow In" hole on the cooling machine.
4. Water Flow Out: Connect this hole with "Water Flow Out" hole on the cooling machine.
5. Power Lead Socket: Connect the machine with power supply.
6. Air Switch: Main Switch protects the machine when machine is abnormal.
TREATMENT THEORY
Q-switched nd yag laser radiates the light ia absorbed by the pigmentations and results in an instantaneous blast that is light blasting principle The pigmentation particles are shattered into fragments some can be bounced out of the skin and others can be splited into tiny particles that can be engulfed by phagocytes and then eliminated by the lyphatic system.
