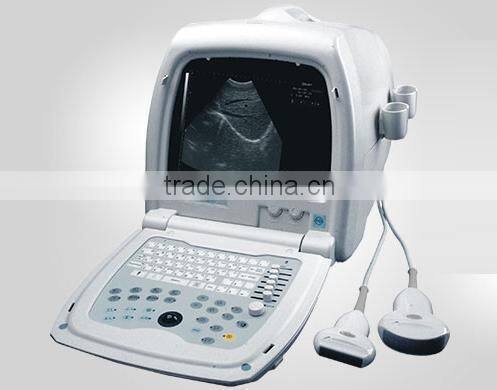

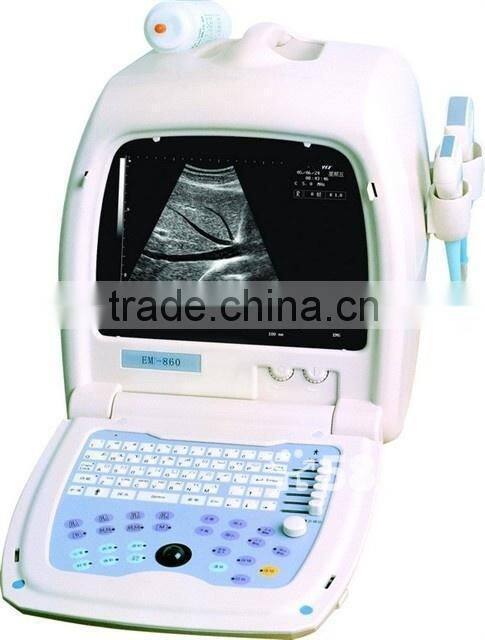

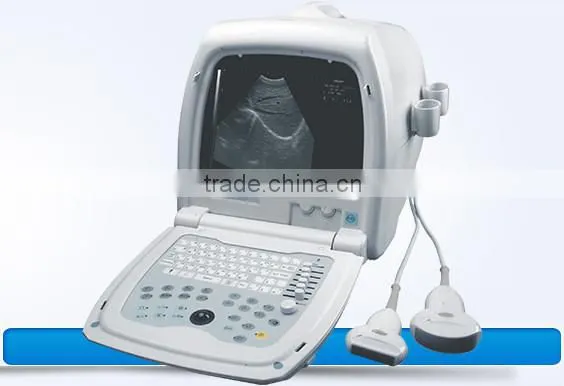

2015 Most Popular ultrasonic equipment
Specification | |
Probe | Electronic convex array, linear array, convex transvaginal probe |
Frequency | 2.0-10.0 MHz |
Display Mode | B, B/B, B/M, M |
Gray Scales | 256 |
Monitor | 10 inch SVGA |
Resolution | Lateral(horizontal) Depth<2mm; Axial(vertical) Depth<1mm |
Max. Measurement Depth | 250mm |
Zoom | *1.0,*1.2,*1.5,*2.0 |
Body Marks | 38 types indicating probe positions |
Various Measurement | Distance, area/perimeter, volume(ellipse method), angle, heart rate, Time, EF slope, fetal age , weight and EDCB
|
Standard Configuration:
| Main Unit |
2 Transducer Connectors | |
256 Frames Cine Loop Memory | |
16 Frames Permanent Storage | |
2 USB Ports | |
Automatic Diagnostic Report Browsed and Printed | |
Measurement & Calculation Software Packages | |
Optional:
| Electronic Convex Array Transducer(2.5/3.5/5.0MHz) |
Electronic Micro-convex Array Transducer(2.5/3.5/5.0MHz) | |
Electronic micro-convex array Transducer(5.0/6.5/7.5MHz) | |
Electronic transvaginal Transducer(5.0/6.5/7.5MHz) | |
Electronic linear array Transducer(5.0/6.5/7.5MHz) | |
Video Printer | |
Laser Printer | |
Needle-guided Biopsy | |
Mobile Trolley | |
Footswitch | |
Flash Stick | |
Features:
1. 2-probe connectors to connect wide-band/multi-frequency convex, linear and transvaginal probes to obtain quality image in any parts of the patient.
2. Extensive software packages including Abdomen, OB/GYN, Urology, Cardiology, Small parts etc.,7 methods(GS,CRL,BPD,HC,AC,FL,LMP)provided for the measure of fetus age and weight, the user could measure womb, left/right ovary, indometrium, bladder, left/right kidney, prostate, left/right atrium, left/right ventricle, valve and cardium, etc. Report Page available.
3. Up to 3-6 obstetric measurement methods available or the user could define it by himself for specific clinical requirements.
4. In single B mode, enlarge the selected area by pressing down the key Zoom In.. The Enlarged area will be automatically optimized or have a Picture-in-Picture display.
5. Cineloop: up to 200 frames, in the meantime, dozens of images could be permanently saved so that typical diseases could be gathered for further study in the future.
6. 6-segment slider TGC and overall gain adjustment.
7. Laser printer applicable to print out the OB/GYN, Urological,Cardiological images and reports for lowering down hospital¡¯s cost involved.
8. USB ports available to transfer the image or relevant data to computer. USB flash disk connectible.
9. Upgradable software and biopsy acupuncture functions. To freeze or defreeze the images by pressing down footswitch.
