best selling portable ultrasound scanner for many desease

FOB Price

USD $1 - $4,000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Guangzhou
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Electronic Endoscope	Brand Name:	Joyful	Model Number:	SUN-806F
Place of Origin:	Guangdong, China

Product Description

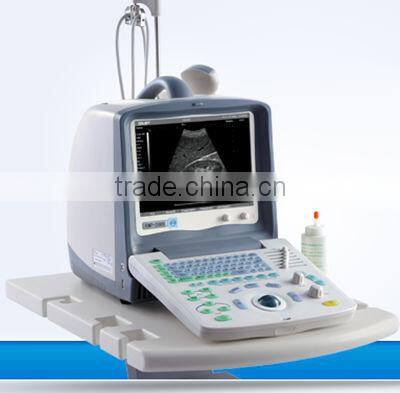

best selling portable ultrasound scanner for many desease

Product description

Main parameter

General	Imaging mode	B, B+B, 4B, B+M, M
	Gray scales	256
	Display	10 inches non-interlaced SVGA
	Probe connector	2 standard
	Beam-forming	Digital Beam-forming Dynamic Receiving Aperture Dynamic Frequency Scanning Dynamic Receive-focusing Dynamic Filtering
	Scanning angle	From 30 to 120 degree (depending on probes)
	Scanning depth (mm)	From 40 to 250 (depending on probes)
Imaging Processing	Pre-processing: Pre-settings, Dynamic range, Edge enhancement, Frame correlation Line correlation, 6-segment TGC adjustment, 4-focus adjustment	Post-processing: Gray transform, Gamma correctin, Rejection, Left-right reverse Up-down reverse, Polarity reverse Min. 11 levels zoom, Partial zoom, Real-time histogram
Measurement & Calculation	B-mode: Distance, circumference/perimeter, area, volume, angle, hip joint, stenosis ratio	M-mode: Distance, time, velocity, EF slope, heart rate Software packages: Abdomen, gynecology, obstetrics, urology, small parts, cardiology
Software packages	Abdomen, gynecology, obstetrics, urology, small parts, cardiology

Optional

Electronic Micro-convex Array Transducer(5.0/6.5/8.5MHz)

Electronic Micro-convex Array Transducer(2.5/3.5/5.0MHz)
Electronic Micro-convex Array Transducer(6.5/7.5/9.0MHz)
Electronic Convex Array Transducer(2.5/3.5/5.0MHz)
Electronic Linear Array Transducer(6.5/7.5/9.0/10.0MHz)
Electronic Endorectal Array Transducer(5.0/6.5/7.5MHz)
Electronic Transvaginal Array Transducer(5.0/6.5/7.5/9.0MHz)
Electronic Transvaginal Array Transducer(5.0/6.5/7.5/8.0MHz)
Video Printer
Laser Printer
Mobile Trolley

Footswitch
Flash Stick
Needle-guided Biopsy

Standard Configuration

Main Unit
1) 10" Non-interlaced SVGA
2) 365 Frames Bi-directional Cine Loop
3) Min. 1600 Frames Permanent Storage
4) 16 Frames Snapshot
5) Body Mark: 64 Types
6) Tissue Harmonic Imaging (THI)
7) Tissue Specific Imaging(TSI)
8) Professional Software Packages
9) 2 Transducer Connectors
10) 2 USB Ports

Functions
Cine loop: 365 frames bidirectional cine-loop
Storage media: Built-in flash, external pen drive
Storage: Min. 50 frames permanent storage and 16-frame snapshot
Body mark: 64 types
Probe auto-detection
10-level acoustic power output adjustment

Product display

Our services

Warranty

There are one year free maintenance for the host machine and more than one year life time.

We guarantee quick and efficient service and maintenance of our device security solutions around the world. We ensure that we will be there whenever or wherever you need us, 24 hours a day, 365 days a year. Like all Onity solutions, our products are backed by a commitment to provide superior global service with local support. we can help you work and reach your goals.

Packaging & Shipping

Packing&Shipping

All items are exported by carton case. Machine will be complete accommodating in it properly.

Contact Us

Guangzhou Joyful Technology Co., Ltd.: Contact namepeter joyful; Phone86-20-32293435; AddressNo.18 Mubei west street,Tianhe District, Guangzhou, China. Guangzhou,Guangdong
