Patient monitor with aid defibrillator
Portable multiple parameters patient monitor is a kind of medical device advance in innovative structure, small size and AC-DC, configuring batteries inside and handles help care for patient shifting. Abundant function could invigilating and measuring heart rate, NIBP (noninvasive blood pressure), breath, ECG, blood oxygen saturation(Spo2), temperature and vital signs.
Technical parameter
Alarm system |
|
Automatic audible and light double alarming include alarming review, upper limit and lower limit could modulate
|
ECG |
|
Optional standard three or five leads cable Three leads: RA, LA, LL. Lead I,II and III Five leads: RA, LA, LL, RL, V. Lead I, II, III, aVR, aVL and aVF. Gain select: ×0.25, ×0.5, ×1, ×2 Heart rate range: Adult 15-300 bpm/min infant/children 15-350 bpm/min Electric current leakage: less than 10μA Protection: 4000V, 50/60Hz isolation & withstanding voltage capacity Anti-defibrillation protection: Anti high frequency electrotome interference Resolution:1 bpm Accuracy: ±1% Arrhythmia analysis & review:Available
|
Respiration rate |
|
Method: RA-LL impedance Testing range: Adult(7~120BrPM) Children and neonate(7~150 BrPM) Resolution: 1 BrPM Accuracy rate: 2 BrP Asphyxia monitoring alarm: available
|
NIBP |
|
Testing method: Automatic oscillography Testing mode: hand-actuated, fast, STAT Auto time testing: available Testing unit: mmHg/Kpa Testing type: systolic pressure, diastolic pressure, mean blood pressure Applicative crowd: adult, children, infant Resolution: 1 mmHg Accuracy rate: 8mmHg Static pressure accuracy: 3mmHg Overvoltage protection: available
|
Blood oxygen saturation (Spo2) |
|
Testing range: 0~100% Resolution: 1% Accuracy rate: 2%(70~100%);3%(0%~69%)
|
Pulse rate |
|
Testing range: 15~300bpm Resolution: 1bpm Accuracy rate: 2bpm
|
Temperature |
|
Range: 0~50 centigrade Resolution: 0.1 centigrade Accuracy rate: 0.1 centigrade Channel: Double
|

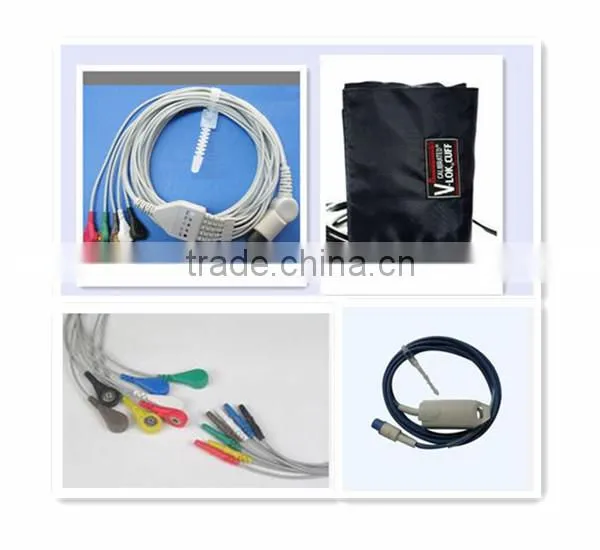

Accessories
1. host machine
2. 5 leads ECG electrode cable one set (include respiration and temperature probe)
3. Adult blood pressure cuff
4. blood pressure extension tube
5. Adult blood oxygen probe
6. Power adapter
7. ECG electrode slices one bag(20 pieces)
8. User manual
Feature
1. 12.1/15.1 inch high resolution color TFT LCD
2. Standard configuration: ECG SPO2 NIBP RESP TEMP
3. Selective configuration: 2-IBP CO2
4. Fashionable feature, reliable performance, Chinese windows operation interface, easy to use.
5.Complete build-in modules, stable performance( extraposition ibpCO2, flexible selective
6. Seven/twelve leads ECG in the same one screen, Cascade ECG waveform display
7. Function of pharmaceutical concentration counter
Color of waveform and data are selective.
9. 72 hours( Max: 480 hours) trend data saving, 40s Holography waveform playback.
10. 72 hours ECG waveform saving and replay.
11. Digital blood oxygen tech, anti-movement interference, powerful anti-weak perfusion.
12. Network: connecting central monitor system, bedside observation, software upgrade,
connecting method: wired and wireless
13. Big character interface
14. rechargeable battery inside, working continuously.
15. Printer inside( Selective configuration)
Selective configuration
1.End-tidal carbon dioxide (ETCO2)
CO2 testing range: 0-13%(0-100mmHg)
CO2 testing accuracy: < 5.0% CO2, ± 2 mmHg; > 5.0% CO2, 10% of value.
Respiration rate: 3~150 BPM
Respiration testing accuracy: 1% ±1BPM
Flux control: 50~250ml/min adjustable
2.Recorder
Specification: build-in, heat array
Waveform tracings: single leads, three leads
Recording: hand-actuated, alarming, timing
Chart speed: 12.5mm/s,25mm/s,50mm/s
Warranty
We offer one year free maintenance for host machine.
We guarantee quick and efficient service and maintenance of our device security solutions around the world. We ensure that we will be there whenever or wherever you need us, 24 hours a day, 365 days a year. Like all Onity solutions, our products are backed by a commitment to provide superior global service with local support. we can help you work and reach your goals.
Choose Me
OEM:Yes
Experienced for many years:Yes
Exhibition Attended:Yes
Research&Develop Team:Yes
CE Certificate:Yes
Custom Personalized Service :Yes
High Quality:Of course!
