Best price promotion portable Patient Monitor for medical monitor
Joyful's medical multi-paremeter patient monitor device is a kind of medical device advance in innovative structure, small size and AC-DC, configuring batteries inside and handles help care for patient shifting. Abundant function could invigilating and measuring heart rate, NIBP (noninvasive blood pressure), breath, ECG, blood oxygen saturation(Spo2), temperature and vital signs
Features
- 12.1/15 inch real color, wide vision, high luminance LCD screenUser-friendly display interface, easy operation
- Large capacity rechargeable internal battery to facilitate patient transfer.
- Browsing & playback function for long time waveform monitoring data record
- Automatic audible and light alarming
- Anti-defibrillation, Anti high frequency electrotome interference.
Specification and Technical parameters
|
Technical Parameter |
ECG |
|
Lead Mode: |
3 or 5 Leads optional |
|
Lead Selection: |
I,II,III / I,II,III,avR,avL,avF,V |
|
Gain: |
X1/4, X1/2, X2, X4, |
|
HR range: |
15~300bpm (Adult), 15~350bpm (Neonatal) |
|
Heart rate accuracy: |
±1% |
|
Resolution: |
1 BPM |
|
Protection: |
Quarantine sustain 4000V,50/60Hz |
|
Anti-defibrillation protection: |
Anti-interference from high frequency electric knife |
|
leakage current |
<10μA |
|
Arrhythmia analysis ,review |
√ |
|
NIBP | ||
Method: |
Automatic Oscillometric |
|
Measurement parameters: |
systolic, mean, diastolic |
|
Measurement mode: |
Manual, automatic and STAT |
|
Units of measurement: |
mmHg/Kpa |
|
Accuracy: |
±3mmHg |
|
Resolution: |
1 mmHg |
|
Automatic measuring time: |
Settable |
|
Over-voltage protection: |
√ |
|
SpO2 | ||
Display |
Waveform and digits |
|
Measuring Range: |
0~100% |
|
Resolution: |
1% |
|
Accuracy |
±2%(70~100%) ±3%(0%~69%) |
|
Pulse Rate | ||
Pulse Rate range: |
15~300bpm |
|
Resolution: |
1bpm |
|
Accuracy: |
±2bpm |
|
TEMPERATURE | ||
Temperature range: |
0~50℃ |
|
Temperature range: |
T1, T2 |
|
Resolution: |
0.1℃ |
|
Accuracy |
±0.1℃ |
|
RESPIRATION | ||
Resolution: |
1 BRPM |
|
Accuracy |
±2 BRPM |
|
Measuring method: |
RA-LL Impedance |
|
Asphyxia monitor alarm: |
√ |
|
Measuring range: |
7~120 BRPM (adult), 7~150 BRPM (children,neonatal) |
|
In-Built Printer (optional) | ||
Waveform description: |
Single lead, three lead |
|
paper speed: |
12.5mm/s,25mm/s,50mm/s |
|
Record: |
Manual, alarm , time setting |
|
EtCO2 | ||
Measurement Range: |
0~13% (0~100mmHg) |
|
Unit |
%, mmHg, kPa |
|
Respiration Rate Range: |
3~150bpm |
|
Respiration Rate Measure Accuracy: |
1% ±1BPM |
|
|
CO2 Measure Accuracy: |
< 5.0% CO2 : ± 2 mmHg > 5.0% CO2 : < 10% of value |
|
Flow Control |
50~250ml/min Adjustable |
|
Power supply |
AC: |
100~250(V), 50/60(Hz) |
DC: |
4 Ah 12V rechargeable sealed battery |
|
|
Environment
|
Temperature : |
Working: 0~40 (℃) Transport and Storage: -20~60 (℃) |
Humidity : |
Working: ≤85% Transport and Storage: ≤93% |
|
Altitude: |
Working: -500 to 4,600m (-1,600 to 15,000ft) Transport and Storage: -500 to 13,100m (-1,600 to 43,000ft) |
|
|
Dimension and Weight |
Net Weight: |
4.5 kg |
Gross Weight: |
6.2 kg |
|
Dimension: |
440mm*340mm*450mm |
|
Standard Configuration |
ECG SPO2 NIBP RESP TEMP PR/font |
|
Optional Configuration |
2-IBP, ETCO2, |
|

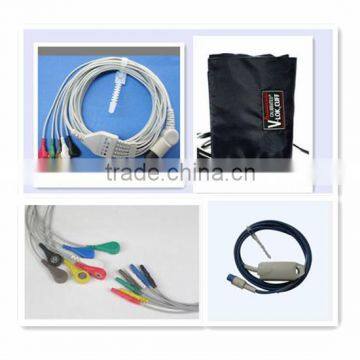

Accessories list
- A mainframe
- 5 leads ecg cable (Breathing probe and temperature probe included )
- A Blood pressure cuff for adult
- A Blood pressure extension tube
- A blood oxygen probe for adult
- Power adapter
- A bag of ECG electrodes (20 pieces)
- A Manual
- 3 certificates for the machine
Warranty
- We offer one year free maintenance for this type of machine
- On-line services in time.
- We guarantee quick and efficient service and maintenance of our device security solutions around the world
The way to order
Packaging: standard package, carton box, or according to customers' require
Delivery: 1 -- 7 working days
Payment: L/C / T/T / Western Union
