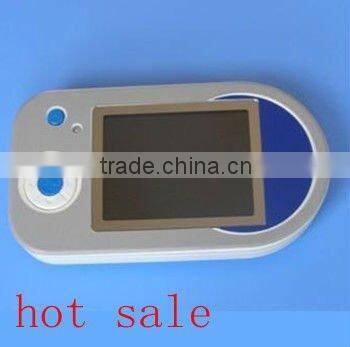

Best price of ecg machine made in China
It integrates the functions of,ECG collection,SpO2,auscultation and PR inspection. The product is applicable for family, hospital, private Clinique, community medical treatment.etc.
Main Parameters
Measurement of auscultation volume | Heart sound range | 20Hz~230Hz |
Lung sound range | 100Hz~800Hz | |
Heart lung combination sound range | 20Hz~800Hz | |
Measurement of Heart Rate | Range | 30bpm~300bpm |
Resolution | 1bpm | |
Accuracy | ±2bpm or ±2%(select larger) | |
Measurement of SpO2
| range | 0%~100% |
resolution | 1% | |
accuracy | When the SpO2 measurement range is 70%~100%, the permission of absolute error is ±2%. Below 70% unspecified. | |
Measurement of pulse rate
| Range | 30bpm~250bpm |
Resolution | 1bpm | |
Accuracy | ±2bpm or ±2%(select larger) | |
Measurement Performance in Weak filling Condition | SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%, SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%(select larger). | |
Resistance to surrounding light | The deviation between the value measured in the condition of man-made light and indoor natural light and that of darkroom is less than ±1% | |
Main Features
- Compact and portable, easy to use

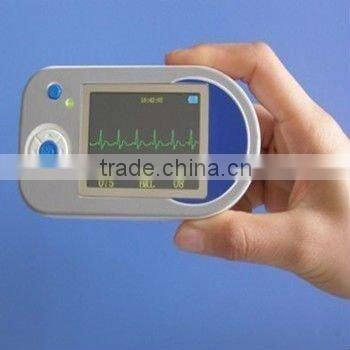

- Display of ECG waveform, heart rate,SpO2 ,pulse rate ,pulse waveform
- Earphone output and 16 steps volume adjustable
- Alarm for SpO2 and pulse rate exceeding limits
- Real-time detecting, TF card data record and review
- Real-time clock
- Recorded data can be transferred to a PC
- PC analysis software
- Low power consumption
Technical specifications
Technical specifications | Temperature | Relative Humidity | Atmospheric pressure | |
Environment Transport and storage | -10℃~ +50℃
| 10% ~ 95% | 50kPa ~ 106Kpa | |
Working environment | 5℃~40℃ | 20%~80% | 70kPa~106kPa | |
Battery type | Working-viktageL | Power | LCD display | Continuous running time |
charging lithium battery | DC3.6V~DC4.2V | ≤120mA | 2.4"TFT, 320*240 Pixels | 7hours |
Physical Characteristics | Size:
| 110(length)*60(wicth)*15(height)mm | Weight: | 100(including lithium battery) |
Relative Similar Product, Click here: ECG sensor Multi parameter healthcare monitor with bluetooth
Packing&Shipping
All items are exported by standard wooden packing with alloy frame. Machine will be complete accommodating in it properly.
Choose Me
OEM:Yes
Experienced for many years:Yes
Exhibition Attended:Yes
Research&Develop Team:Yes
CE Certificate:Yes
Custom Personalized Service :Yes
High Quality:Of course!
