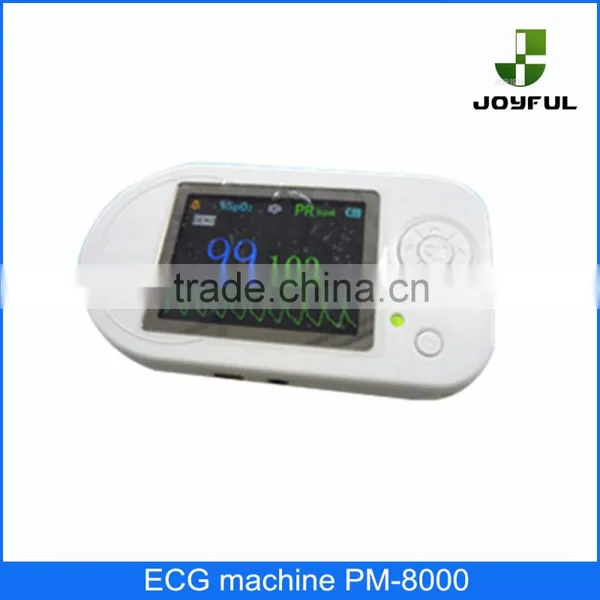

Body health monitor medical moblie ecg machine
PM-8000 integrates the functions of, ECG collection, SpO2, auscultation and PR inspection. The product is applicable for family, hospital, private Clinique, community medical treatment. Etc.
Technical specifications
Physical Characteristics
Size: 110(length)*60(wicth)*15(height)mm
Weight:100(including lithium battery)
Environment
Transport and storage
Temperature: -10℃~ +50℃
Relative Humidity: 10% ~ 95%
Atmospheric pressure: 50kPa ~ 106Kpa
Working environment
Temperature: 5℃~40℃
Relative Humidity: 20%~80%
Atmospheric pressure: 70kPa~106kPa
Batterytype: charging lithium battery
Working-viktageL: DC3.6V~DC4.2V
Power: ≤120mA
LCD display: 2.4"TFT, 320*240 Pixels
Continuous running time: 7hours
Main Parameters
Measurement of auscultation volume |
Heart sound range |
20Hz~230Hz |
Lung sound range |
100Hz~800Hz |
|
Heart lung combination sound range |
20Hz~800Hz |
|
Measurement of Heart Rate |
Range |
30bpm~300bpm |
Resolution: |
1bpm |
|
Accuracy |
±2bpm or ±2%(select larger) |
|
|
Measurement of SpO2
|
range |
0%~100% |
resolution |
1% |
|
accuracy |
70%~100%SpO2,±2%. < 70% , unspecified. |
|
|
Measurement of pulse rate
|
Range |
30bpm~250bpm |
Resolution |
1bpm |
|
Accuracy |
±2bpm or ±2%(select larger) |
|
|
Measurement Performance in Weak filling Condition
|
0.4% pulse-filling ratio SpO2 error ±4%, Pulse rate error±2 bpm or ±2%(select larger). |
|
|
Resistance to surrounding light
|
Deviation: < ±1%.(man-made light, indoor natural light and that of darkroom) |
|
Main function
Auscultation sounds output
ECG waveform display
HR display
ECG data sampling, waveform playback.
External Integrated oxygen probe for SpO2 monitoring
SpO2 value display
Pulse waveform, PR display
Pulse rate sound prompt
SpO2, PR data saving, upload
Power display
Exceed limits alarm and low power alarm
