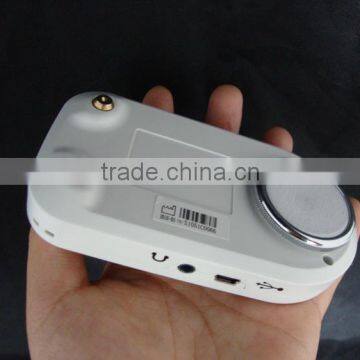

Multifuntional Electronic Visual ECG device ecg device
Function of Multifuntional Electronic Visual ECG device

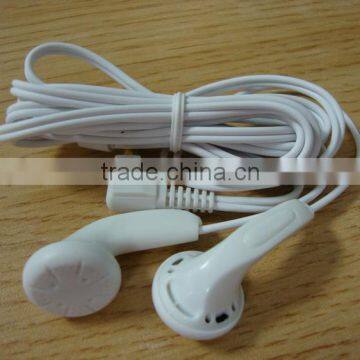

1. Stethoscope device
2. ECG waveform display, record, and playback

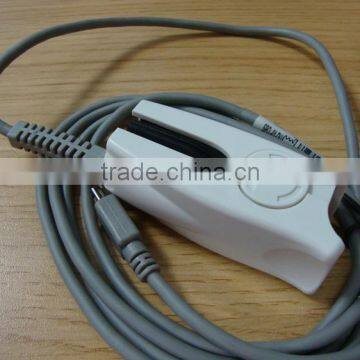

3. HR, SpO2 value and PR data display, saving and upload
4. Pulse waveform display and prompt pulse rate sound
5. Intelligent alarm system when SpO2 and pulse rate ecexceed limited setting
Main Parameters of Multifuntional Electronic Visual ECG device
| (1) Measurement of auscultation volume | |
| Heart sound range: | 20Hz~230Hz |
| Lung sound range: | 100Hz~800Hz |
| Heart lung combination sound range: | 20Hz~800Hz |
| (2) Measurement of Heart Rate | |
| Range: | 30bpm~300bpm |
| Resolution: | 1bpm |
| Accuracy: | ±2bpm or ±2%(select larger) |
| (3) Measurement of SpO2 | |
| range: | 0%~100% |
| resolution: | 1% |
| accuracy: | When the SpO2 measurement range is 70%~100%, the permission of absolute error is ±2%. Below 70% unspecified. |
| (4) Measurement of pulse rate | |
| Range: | 30bpm~250bpm |
| Resolution: | 1bpm |
| Accuracy: | ±2bpm or ±2%(select larger) |
| (5) Measurement Performance in Weak filling Condition | |
| SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%, SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%(select larger). | |
| (6) Resistance to surrounding light | |
| The deviation between the value measured in the condition of man-made light and indoor natural light and that of darkroom is less than ±1%. | |
Technical specifications of Multifuntional Electronic Visual ECG device
| Physical Characteristics |
|
Size: 110(length)*60(wicth)*15(height)mm Weight:100(including lithium battery) |
| Environment Transport and storage |
|
Temperature: -10℃~ +50℃ Relative Humidity: 10% ~ 95% Atmospheric pressure: 50kPa ~ 106Kpa |
| Working environment |
|
Temperature: 5℃~40℃ Relative Humidity: 20%~80% Atmospheric pressure: 70kPa~106kPa |
| Battery type |
charging lithium battery |
| Working-viktageL |
DC3.6V~DC4.2V |
| Power |
≤120mA |
| LCD display |
2.4"TFT, 320*240 Pixels |
| Continuous running time |
7hours |
| Delivery | 3 - 7 working days |
| Packaging | Carton box |
| Payment | L/C / T/T / Western Union |
Warranty
- 1 year free maintenance
- Safety device solutions for any product
- Free Software update
- Hardware fitting replacement
- We will offer an assitance to maintan the machine if there are any breakdown happen
- 24 hours online serivce
- Quick and efficient service and maintenance of our product
Way to order
Guangzhou Joyful technology Co., Ltd. is manufactory special at making health care and beauty equipment in Guangzhou, China for more than 10 years. Our main product including cool technic body slimming machine, laser hair removal machine, Hyperthermia Machine, ECG machine, pulse oximeter and etc. We are insist to provide high quality product with competitive price to meet customer needs.
