2016 New Portable Mobile ECG Machine Pm-8000 With Real-time Detection Function

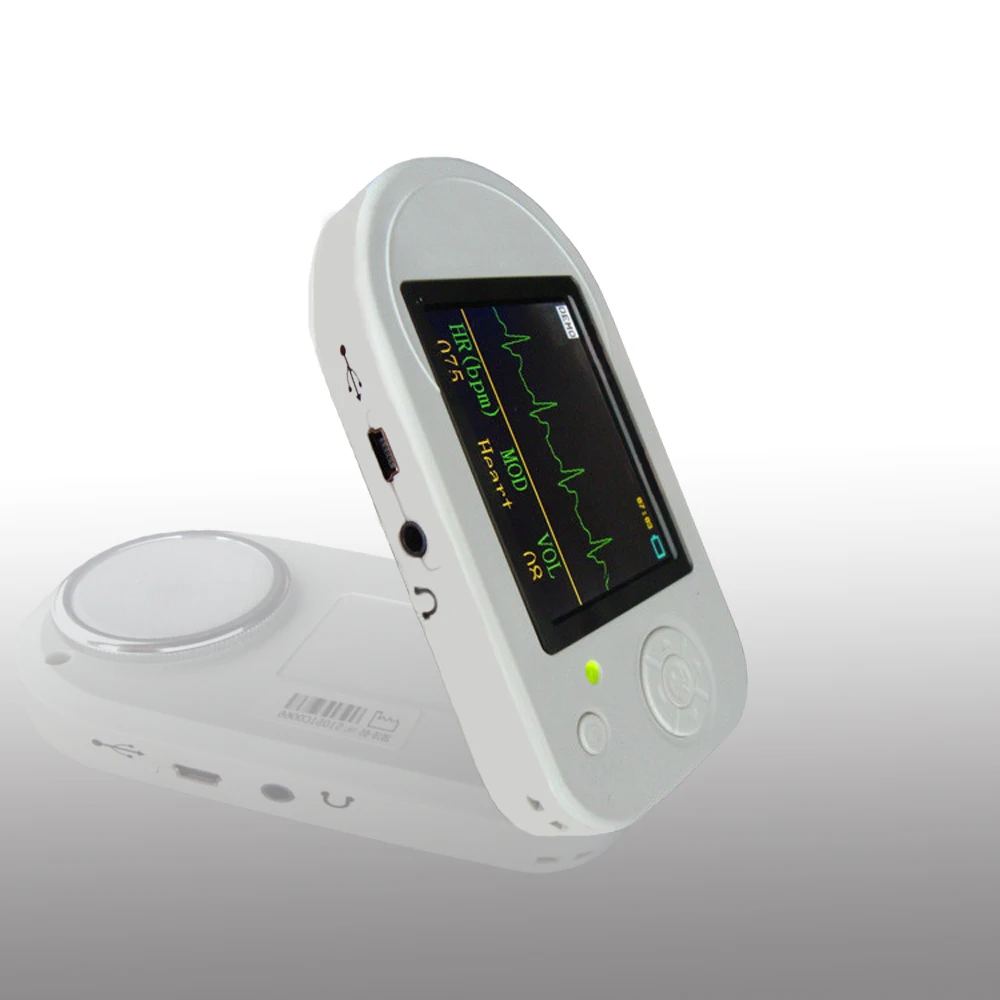

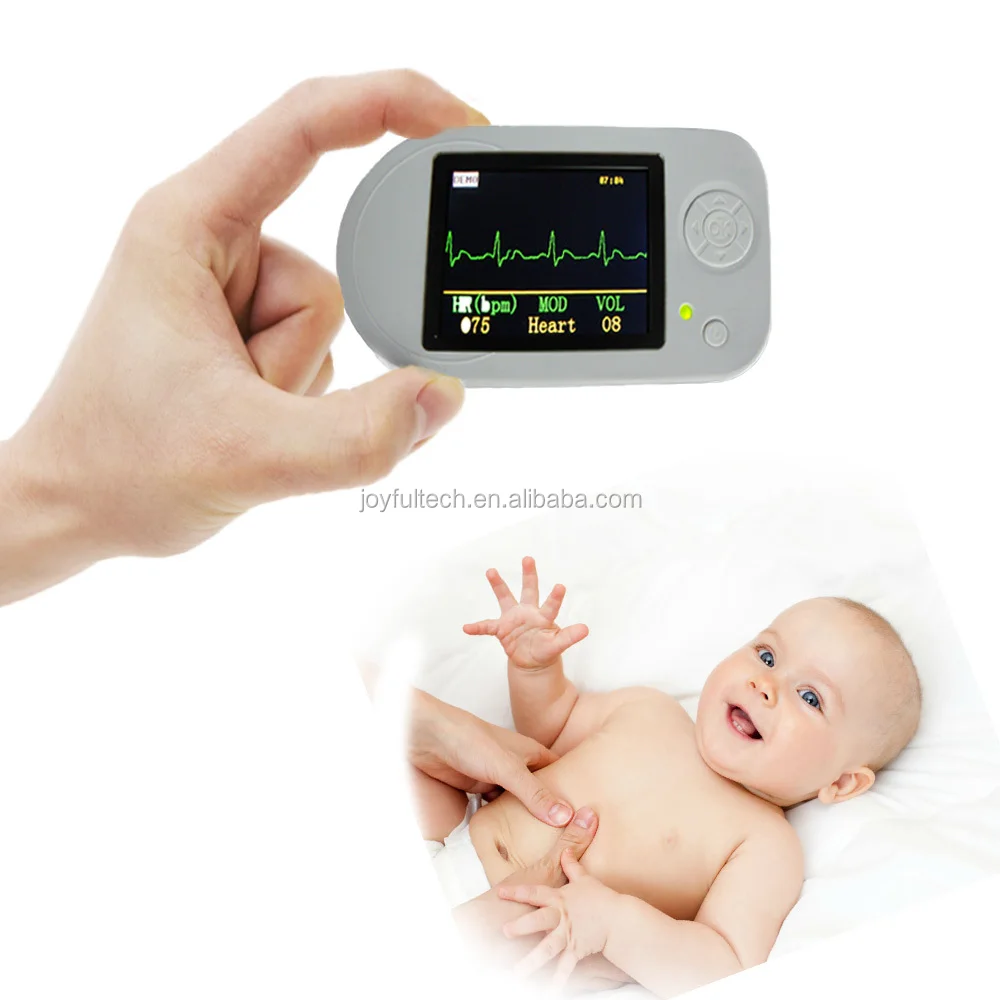

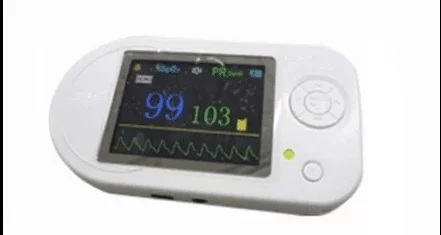

2016 New Portable Mobile ECG Machine Pm-8000 With Real-time Detection Function photo-1

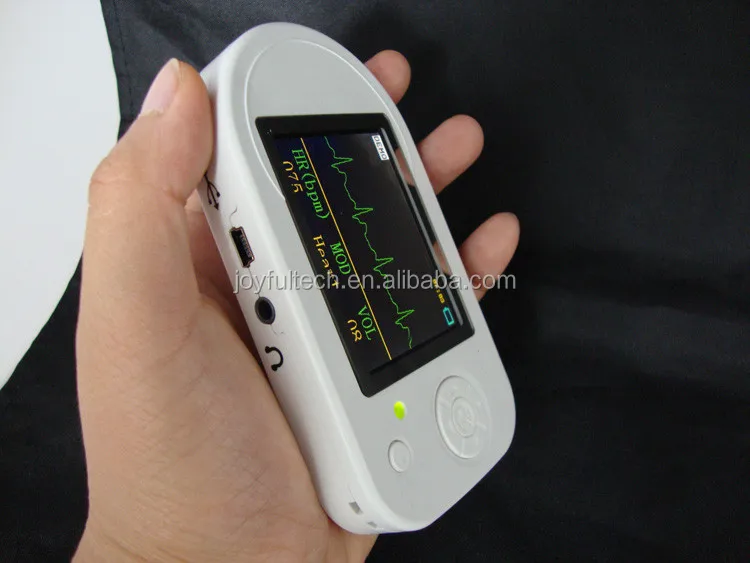

2016 New Portable Mobile ECG Machine Pm-8000 With Real-time Detection Function photo-2
2016 New Portable Mobile ECG Machine Pm-8000 With Real-time Detection Function photo-3
2016 New Portable Mobile ECG Machine Pm-8000 With Real-time Detection Function photo-4
2016 New Portable Mobile ECG Machine Pm-8000 With Real-time Detection Function photo-5
2016 New Portable Mobile ECG Machine Pm-8000 With Real-time Detection Function photo-6
US$ 250 - 250 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Medical Micro-Devices
Brand Name:
Joyful, JOYTEC
Model Number:
pm-8000
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Type Medical Micro-Devices
Brand Name Joyful, JOYTEC
Model Number pm-8000
Place of Origin Guangdong, China
Product Description

2016 new portable mobile ECG Machine PM-8000 with real-time detection

function


Product Overview:

As a multi-functional ECG machine, mobile ECG

include functions about auscultation, ECG

acquisition, SpO2 and pulse rate monitoring. This instrument has ECG waveform recording and playback; oxygen value and pulse rate value could be stored and data will be uploaded to a computer to facilitate analysis of the disease.

Applicable For: hospital, community health, oxygen bar, family, before and after exercising,

etc.

Main function

Auscultation sounds output

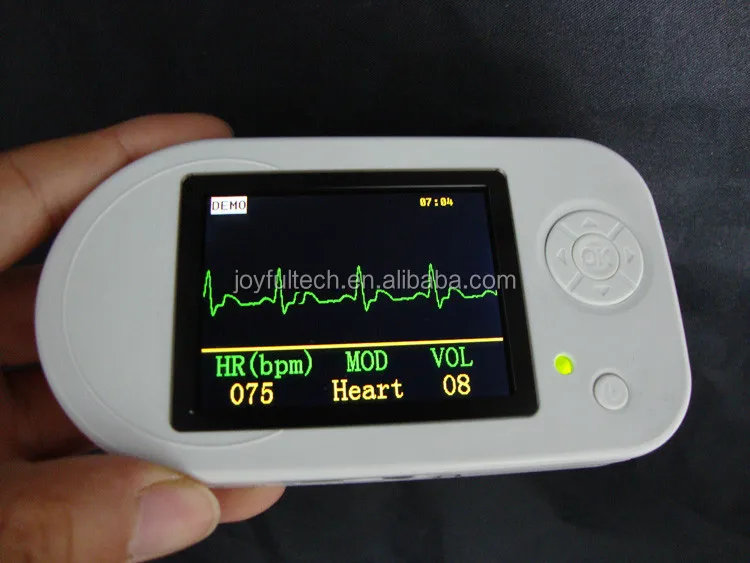

ECG waveform display
HR display
ECG data sampling, waveform playback.
External Integrated oxygen probe for SpO2 monitoring
SpO2 value display
Pulse waveform, PR display
Pulse rate sound prompt
SpO2, PR data saving, upload
Power display
Exceed limits alarm and low power alarm


Main Parameters



(1) Measurement of auscultation volume
Lung sound range: 100Hz~800Hz
Heart lung combination sound range: 20Hz~800Hz

(2) Measurement of Heart Rate
Range: 30bpm~300bpm
Resolution: 1bpm
Accuracy: ±2bpm or ±2%(select larger)


(3) Measurement of SpO2
range: 0%~100%
resolution: 1%
accuracy: When the SpO2 measurement range is 70%~100%, the permission of absolute error is ±2%. Below 70% unspecified.

(4) Measurement of pulse rate
Range: 30bpm~250bpm
Resolution: 1bpm
Accuracy: ±2bpm or ±2%(select larger)

(5) Measurement Performance in Weak filling
condition
SpO2 and pulse rate can be shown correctly
when pulse-filling ratio is 0.4%, SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%(select
larger).

(6) Resistance to surrounding light
The deviation between the value measured in
the condition of man-made light and indoor
natural light and that of darkroom is less than ±1%.

Advantage

Easy to operate.
Newest piezoelectric sensors
Button volume control
3 types auscultation mode: heart sound, lung

sound,

heart and lung sound
Color TFT, resolution: 160*128
ECG waveform display
SpO2, pulse oximeter display
3.7V lithium battery

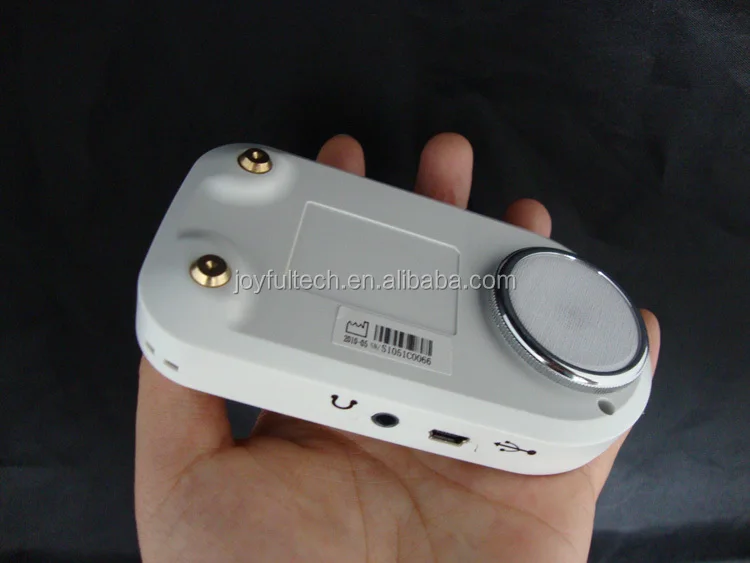

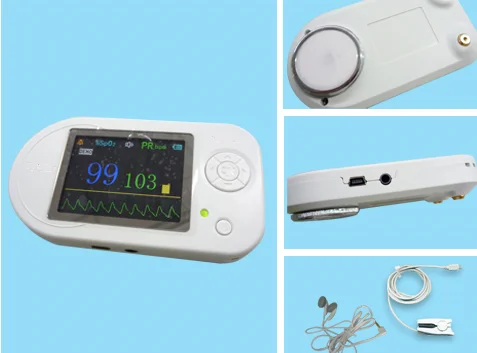

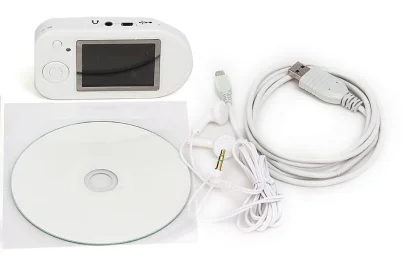

Detail show


Technical specifications


Physical Characteristics
Size: 110(length)*60(wicth)*15(height)mm
Weight:100(including lithium battery)
Environment Transport and storage
Temperature: -10℃~ +50℃
Relative Humidity: 10% ~ 95%
Atmospheric pressure: 50kPa ~ 106Kpa

Working environment
Temperature: 5℃~40℃
Relative Humidity: 20%~80%
Atmospheric pressure: 70kPa~106kPa
Battery type
charging lithium battery
Working-viktageL
DC3.6V~DC4.2V
Power
≤120mA
LCD display
2.4"TFT, 320*240 Pixels
Continuous running time
7hours
Our Service


We offer one year free maintenance for host machine

As the world's professional medical device manufacturers, our commitment to service is based on total customer satisfaction. We guarantee quick and efficient service and maintenance of our device security solutions around the world. We ensure that we will be there whenever or wherever you need us, 24 hours a day, 365 days a year. Like all Onity solutions, our products are backed by a commitment to provide

superior global service with local support. we can help you work and reach your goals.

Certifications
Our Company


Guangzhou Joyful Technology Co., Ltd is a profes-sional medical equipment manufacturer, It is a

branch of Joyful group. It is a high-tech enterprise with independent intellectual property rights,

specializing in the development, production and

sale of medical equipment.

Packing & Delivery


All items are exported by standard wooden packing with alloy frame. Machine will be complete

accommodating in it properly.
