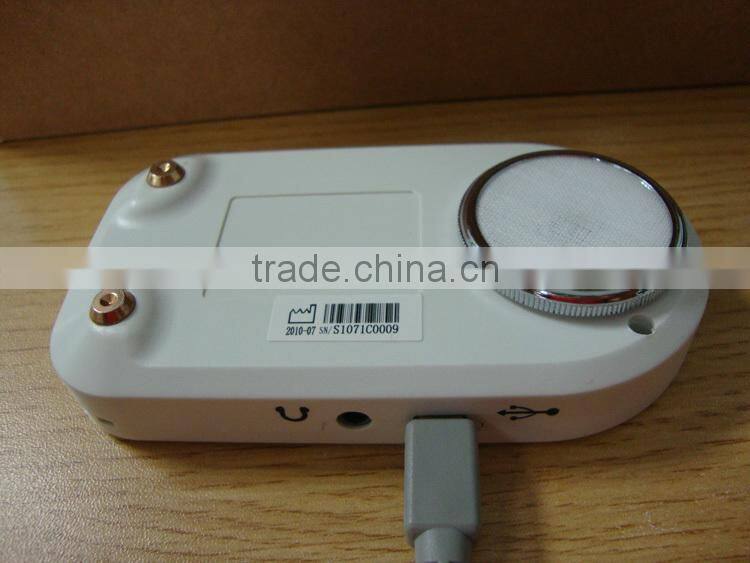

Bottom price holter monitor ecg
As a multi-functional ECG machine, mobile holter ECG include functions about auscultation, ECG holter acquisition, SpO2 and pulse rate monitoring. This instrument has ECG waveform recording and playback; oxygen value and pulse rate value could be stored and data will be uploaded to a computer to facilitate analysis of the disease.
Applicable For: hospital, community health, oxygen bar, family, before and after exercising, etc.
Main feature
Compact and portable, easy to use

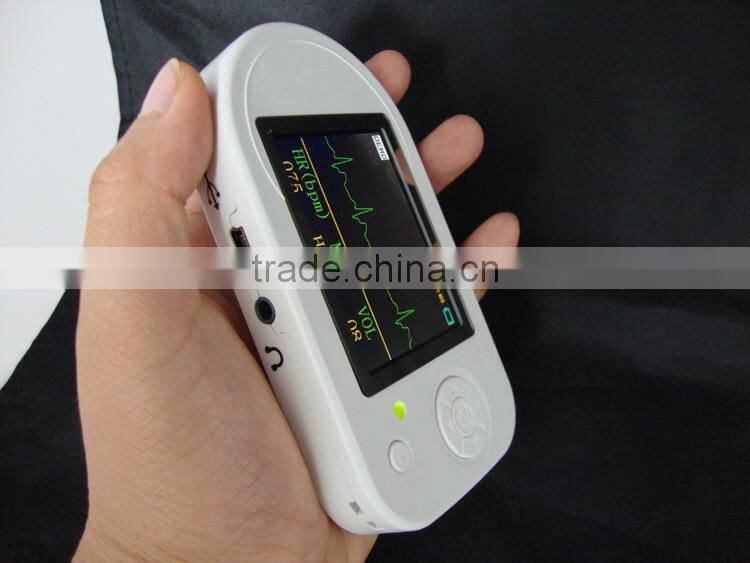

Display of ECG waveform, heart rate, SpO2, pulse rate, pulse waveform
Earphone output and 16 steps volume adjustable
Alarm for SpO2 and pulse rate exceeding limits
Real-time detecting, TF card data record and review
Real-time clock
Recorded data can be transferred to a PC
PC analysis software
Low power consumption
Main Parameters
(1) Measurement of auscultation volume
Lung sound range: 100Hz~800Hz
Heart lung combination sound range: 20Hz~800Hz
(2) Measurement of Heart Rate
Range: 30bpm~300bpm
Resolution: 1bpm
Accuracy: ±2bpm or ±2%(select larger)
(3) Measurement of SpO2
range: 0%~100%
resolution: 1%
accuracy: When the SpO2 measurement range is 70%~100%, the permission of absolute error is ±2%. Below 70% unspecified.
(4) Measurement of pulse rate
Range: 30bpm~250bpm
Resolution: 1bpm
Accuracy: ±2bpm or ±2%(select larger)
(5) Measurement Performance in Weak filling Condition
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%, SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%(select larger).
(6) Resistance to surrounding light
The deviation between the value measured in the condition of man-made light and indoor natural light and that of darkroom is less than ±1%.
Technical specifications
Technical specifications |
Temperature |
Relative Humidity |
Atmospheric pressure |
|
|
Environment Transport and storage |
-10℃~ +50℃
|
10% ~ 95% |
50kPa ~ 106Kpa |
|
Working environment |
5℃~40℃ |
20%~80% |
70kPa~106kPa |
|
Battery type |
Working-viktageL |
Power |
LCD display |
Continuous running time |
charging lithium battery |
DC3.6V~DC4.2V |
≤120mA |
2.4"TFT, 320*240 Pixels |
7hours |
Physical Characteristics |
Size:
|
110(length)*60(wicth)*15(height)mm |
Weight: |
100(including lithium battery) |
Product Display
Our Services
We offer one year free maintenance for host machine
As the world's professional medical device manufacturers, our commitment to service is based on total customer satisfaction. We guarantee quick and efficient service and maintenance of our device security solutions around the world. We ensure that we will be there whenever or wherever you need us, 24 hours a day, 365 days a year. Like all Onity solutions, our products are backed by a commitment to provide superior global service with local support. we can help you work and reach your goals.
