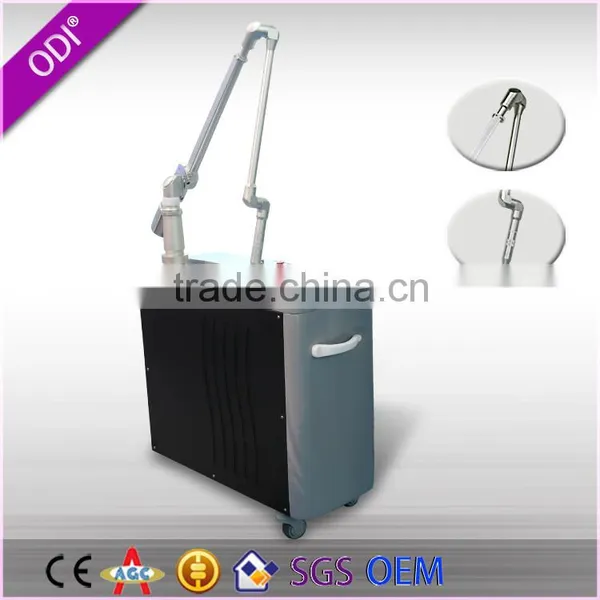

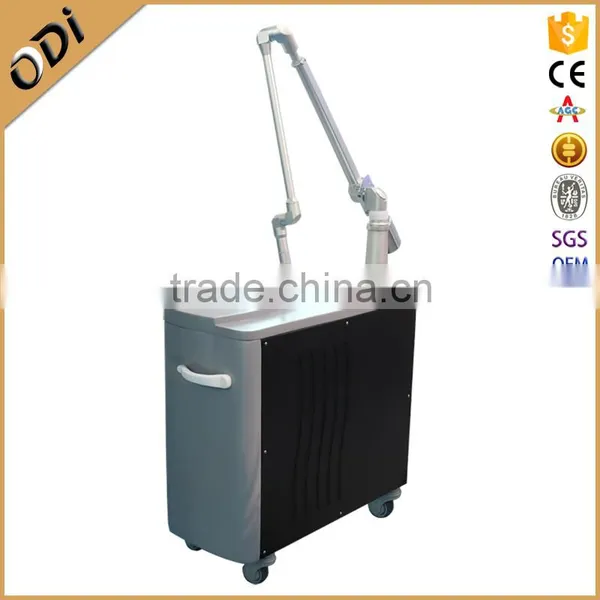

Strong articulated arm laser nd yag single pulse pigment removal laser machine
Big Promotion
Do not hesitate to contact us!!
Working Principle of nd yag laser articulated arm machine
The principle of Comprehensive pigment dispel treatment is using the selective laser photothermolysis and electrooptical active Q switched laser blasting action principle, aim the precise dosage of
energy which with a specific wavelength in a very short time at a specific structure of color
bases:the ink pigment particle, carbon particles and other exogenous and endogenous pigment
melanin cell disease in the dermis and epidermis .Using the extremely narrow pulse width, high
peak power of laser, the pigment suddenly heated and blasting and will be broken into smaller
particles,the crushed debris particles will be out of the body after being Consumed by macrophages 'cause of Metabolism .
Pigment gradually fades, and finally disappeared after pigmented treatment periodically, and
achieve the purpose of treatment.
Application of nd yag laser articulated arm machine
Pigment deposit dispelling
Skin rejuvenation
Tattoo removal: perfect performance on all kinds of color tattoo removal
Eliminates the age pigment, spot, birthmark, and pigment changes
Selling Point of nd yag laser articulated arm machine

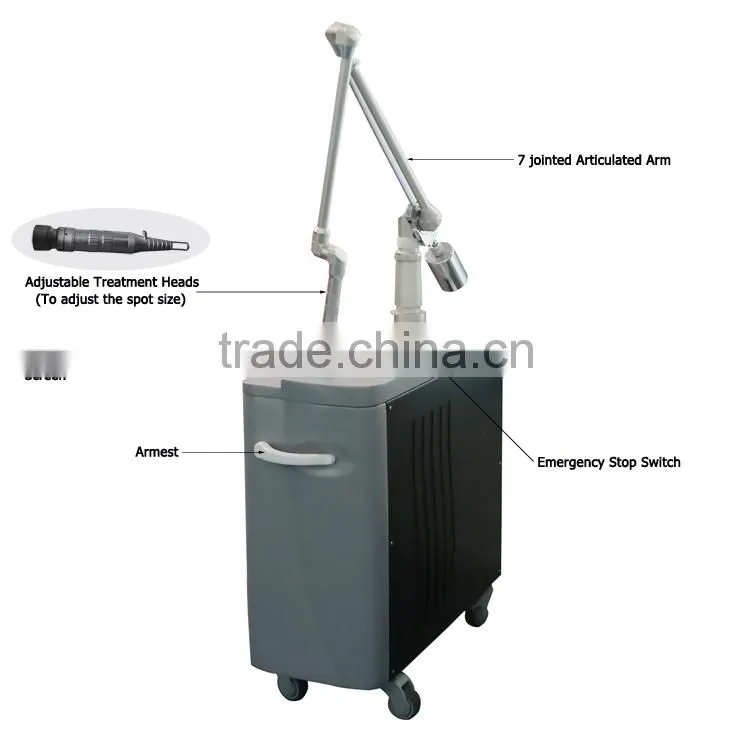

1. Excellent 7 articular-arm, to ensure the accuracy of long treatment and easy operation
2. Powerful energy of single pulse 450mJ
3. Efficiency: suitable to all types color of tattoo, high efficient treatment results
4.Using single pulse and extremely narrow pulse width ≤ 8ns , the pigment can suddenly heated
and blasting with short staying time, so the treatment is more confortable and less traumatic
5.EO active Q switched technology produced better beam quality with high peak power, enhance
treatment result;
6. 10Hz high repetition rate with 1-8mm adjustable spot size, flexible adjustment for different
application and fast treatment;
7.Special designed laser head passed mechanical deformation test, sealed cover is dust proof and
anti vibration, ensures long term stable working;
8. OD-C6 laser machine with CE Certificate
Parameters of nd yag laser articulated arm machine
Laser type |
EO Active ND YAG Q-switch laser OD-C6 |
Wavelength |
double wavelength 1064nm, 532nm |
Screen |
Touched display |
Single-pulse Energy |
800mJ (1064nm); 400mJ (532nm) |
Power |
2000W |
Width of pulses |
≤8ns |
Frequency |
1-10HZ |
Diameter of spot |
1-7mm adjustable |
Beam of light transmission |
7 articular-arm of light guide transmitting, transmission power is more than 75% |
Indicator of aiming light |
red semiconductor aiming light, wavelength 650-670nm |
Cooling manner |
Closed-off water circulation + air |
Program language |
English |
Dimension of package |
50*80*110(cm) |
G.W. |
70kg |
Voltage |
220V / 110V nd yag laser articulated arm machine |
Before&After of nd yag laser articulated arm machine

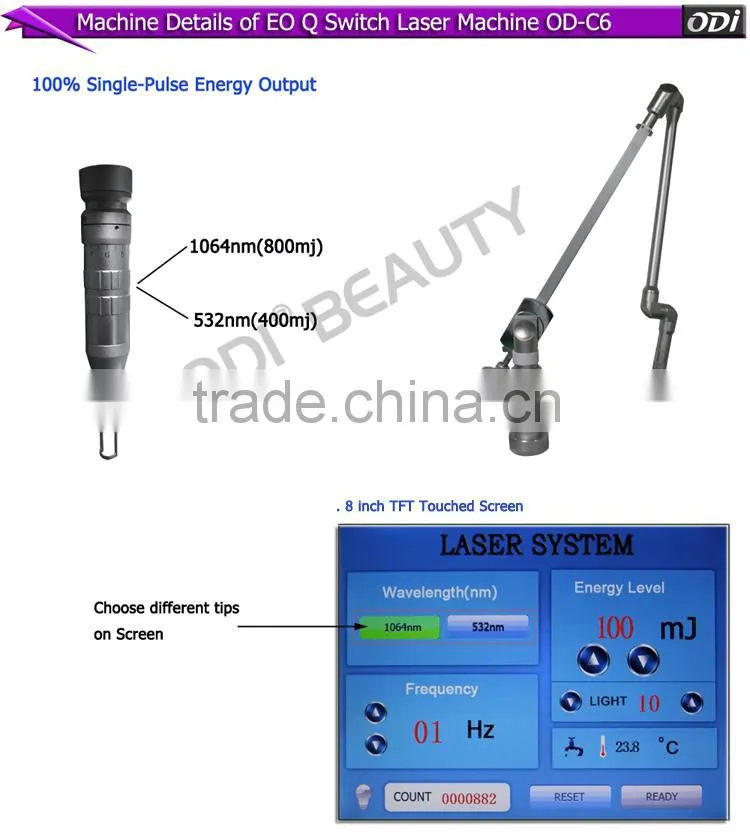

Detailed Picture of nd yag laser articulated arm machine

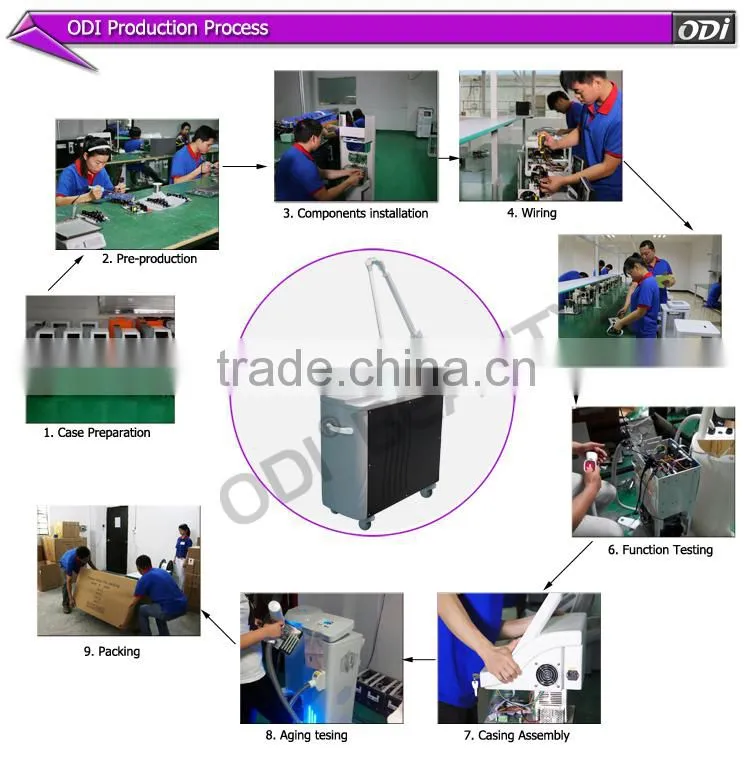

Production Process of ODI Beauty Machine:
Welcomed to Visit ODI® Factory !!!
laser power supply nd:yag
| Warranty |
ODI offer 1 year free warranty, lifetime maintan, 24 hours on-line service. We have Specific after sale service Regulations which would be wirtten on the last page of our machine’s user manual. And we will offer the service to you according to the regulation strictly. |
| OEM/ODM Service | 1. Software adjustment (logo &menu design, different languages) 2. Unique machine shape design 3. Treatment handle, filters design. 4. Package (style, material, label design) 5. According to the budget, machine weight, size, provides reasonable projects. |
| Training: |
Once you buy machines from us,we supply professional training for you. Detailed user manual , Video(CD) or online service are the basis training. Moreover, we teach how to use the machine and how to do the treatments step by step.
|
Package
Shipping :
ODI offer Door to Door Shipping Service, DHL , EMS, Fedex , etc
1. What is the Payment Terms?
Re: T/T (Wire Transfer), Western Union, Moneygram, Paypal
2. How do you delivery the machine?
Re: By door to door service, say DHL,UPS,TNT,FEDEX,etc ,Or air cargo, Or by sea.
3. What about the delivery?
Re: About 3-7 working days.
4. What’s your warranty?
Re: 12 months for host machine.
5. Do you offer clinical training?
Re: Yes .Welcome to our company for free and professional training.
6. Do you offer OEM/ODM service?
Re: Yes .Welcome to contact us for more details.
7. How many treatments are required?
Re: 3- 8 times per course of treatment.
