SPIRITLASER 10.4 Inch 2 in 1 IPL + YAG CPC Connector multi-function machine with ipl and opt shr Movable Screen

Name: SPIRITLASER 10.4 Inch 2 in 1 IPL + YAG CPC Connector multi-function machine with ipl and opt shr Movable Screen
Brand: SPIRITLASER
Price: USD $1 - 5,500 / Unit

FOB Price

USD $1 - $5,500 / Unit

1 Unit(Min.Order)

Supply Ability 300 Unit / Units per Month
Port BEIJING
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Certification:	CE, RoHS, ISO, SFDA	Place of Origin:	Beijing, China	Brand Name:	SPIRITLASER
Model Number:	IE-11

Packaging Details

aluminium case and wooden box

Product Description

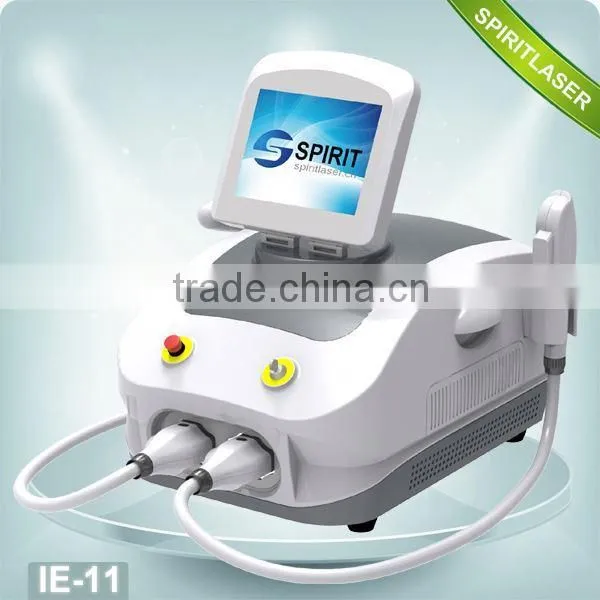

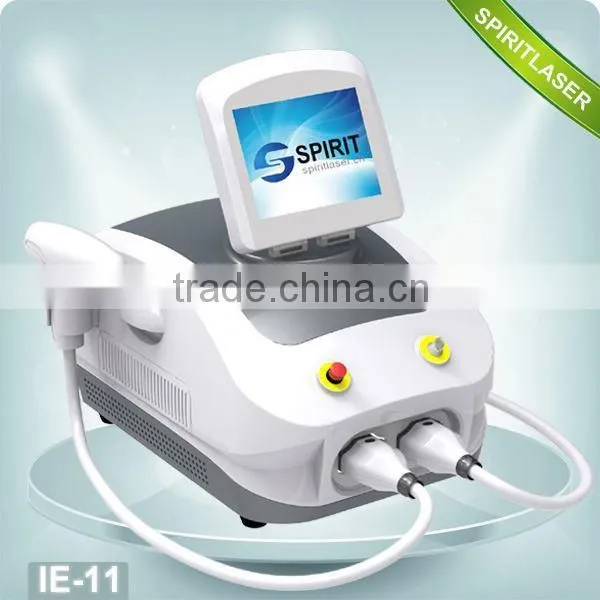

SPIRITLASER 10.4 Inch 2 in 1 IPL + YAG

CPC Connector multi-function machine with ipl and opt shr Movable Screen

Model number: IE-11

The 2 in 1 intelligent beauty machine is multi-function which integrates with IPL+ND YAG Laser systems, plug 2 handpieces meanwhile.

multi-function machine with ipl and opt shr

1. IPL work theory

IPL (Intense Pulsed Light) is a kind of light with high energy and broad wavelength. Intense Pulsed Light with broad spectrum affects pigmentations, vascular lesions and hair follicles. Photothermic and photochemical action will be triggered by the radiation of IPL. Pigment is shattered and eliminated out of body through metabolism.
Meanwhile, IPL will also promote collagen production, which can make the skin more flexible and smooth. The light with long wavelength can easily pass through epidermis layer to the hair follicles in the deep skin layer. At the targeted area, high energy occurs to destroy follicles and hair shaft, preventing regrowth of new hair. With a series of treatment, IPL technology can help restore a more youthful appearance without downtime and side effect.

2. Q-switch ND YAG Laser work theory

The energy of Q-switched ND YAG laser can be absorbed by pigment of target tissue like tattoo, speckle, birthmark and so on.
The pigment will be fragmented so small that they can be metabolized by the lymphatic system or egested out of the body. Thus the tattoo or other pigmentations will be removed without damage to normal tissue. The treatment is safe and convenient without downtime and side effects.

3. Applications:

IPL: Hair removal, speckle removal, skin rejuvenation, spider veins removal, acne removal, wrinkle removal

ND YAG Laser: Tattoo removal, speckle removal, nevus removal, nevus of Ota removal, birthmark removal, skin rejuvenation

4. Features of IE-11 Beauty Machine:

multi-function machine with ipl and opt shr

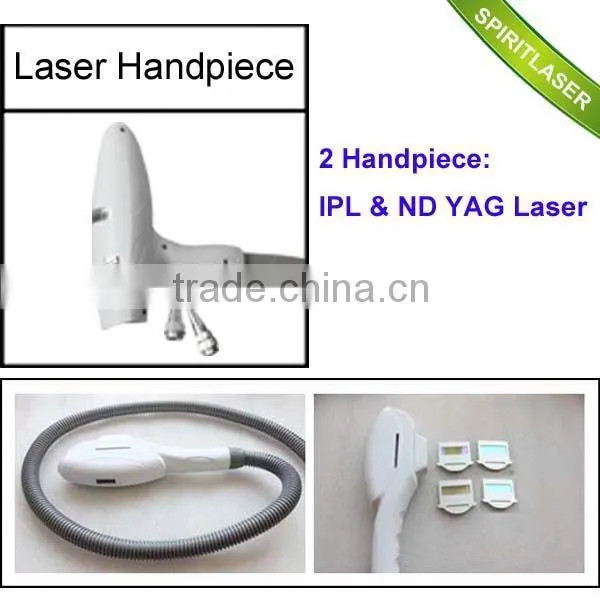

1). 2 handpieces (IPL+ND YAG Laser)

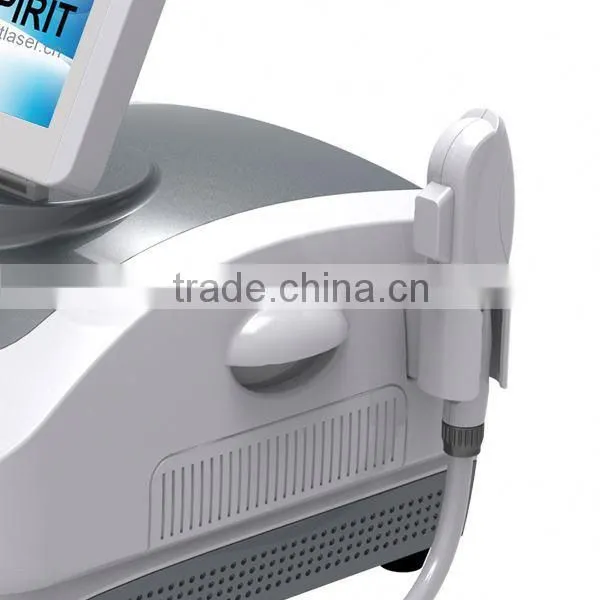

A. IPL handpiece:

Spot size: 12x30mm / 15x50mm optional
Four filters: 430/530/640/690nm
Dual flash switches

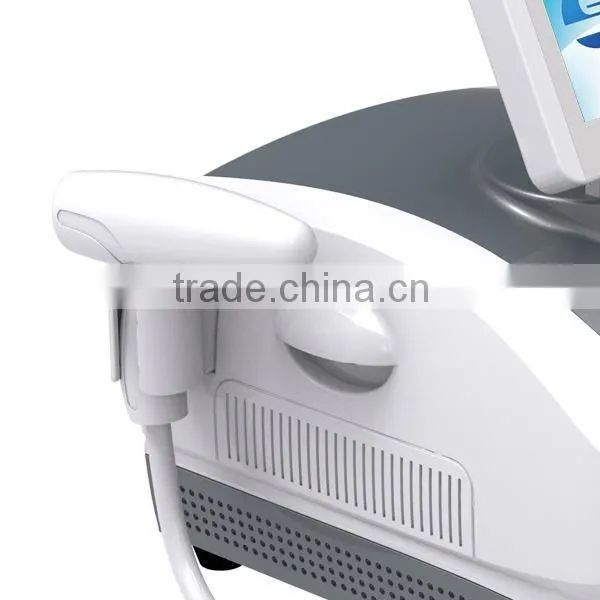

B. ND YAG Laser handpiece

Tips: 532nm & 1064nm

Advantages:

High Frequency: 1-10HZ adjustable, 10HZ means the laser can shot 10 times per second. You can do fast treatment.

2). New Design, More convenience, safer

10.4’‘ Movable color touch screen, all parameters setup can be finished easily here
Simple design, internal modular design, easy installation and maintenance
User friendly software, easy operation
Multi-language for your choice
Alarm protection system of water flow and water temperature, stop all working immediately in case of any risk at the first time, offering a safe operation to you

3). Free LOGO service : Add your LOGO on start screen for promoting your brand.

4). CPC connector

5). Power Plugs : As per your requirements!

5. Technical Specifications

multi-function machine with ipl and opt shr

General Specification

Screen: 10.4' Movable color LCD touch screen

Output power: 2000W

Multi software languages

Cooling system: semiconductor+ air + water + cooling gel

Skin Cooling: -6 °C ~ 0 °C

Voltage: 100~240V

Machine's size: 58X50X39cm

Package size: 71X59X58cm

N.W.: 25KG

G.W.: 43KG

IPL system

IPL Energy: 1-50J

Pulse No.: 1-6

Pulse Duration: 1-10ms

Pulse Delay: 1-100ms

Wavelength: 430/530/640/690nm standard (480/560/590/750nm optional)

Spot size: 12*30mm, 15*50mm optional

ND YAG laser

Laser type: Q-SWITCH ND YAG LASER

Laser energy: Max. 1500mj

Pulse width: 1-3ns

Frequency: 1-10HZ

Wavelength: 1064nm/532nm (1320nm for skin rejuvenation optional)

6. Packaging

7. More Combinations for you choose --- Only you can not think of, no I can't do.:)~~

The model also have OTHER 8 x VERSIONS as following:

1. IPL+YAG (The above introduction)

2. SHR+IPL

3. SHR+YAG

4. SHR+IPL+YAG

5. SHR+E-LIGHT

6. E-LIGHT+YAG

7. SHR+E-LIGHT+YAG

8. IPL+RF

9. E-LIGHT+RF

8. Delivery

9. Quick details

Manufacturer	Yes
Keyword	multi-function machine with ipl and opt shr
Training and After-sale service	offer
Type	Portable machine
Brand name	SPIRITLASER
Place of Origin	Beijing China (Mainland)
Packaging Detail	aluminum alloy case
Delivery Detail	3-7 DAYS
Transportation	By express (DHL, EMS, UPS, TNT, Fedex); By air express to air port;
Payment method	T/T, WESTERN UNION, MONEY GRAM, PAYPAL…

FOR MORE DETIALS, PLEASE SEND US INQUIRY. :)

Welcome to China !~~

Welcome to Beijing !~~

Welcome to SPIRITLASER !~~
