Professional 532nm, 1064nm ND Yag Laser hair removal, tattoo removal Multifunction Beauty Equipment

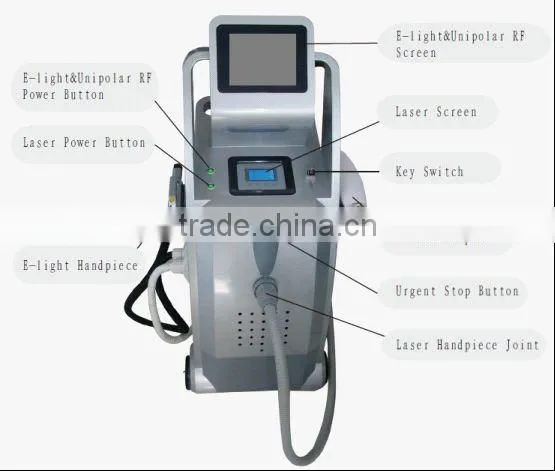

i. Accessories
ii. E-light Part
Installation
1.

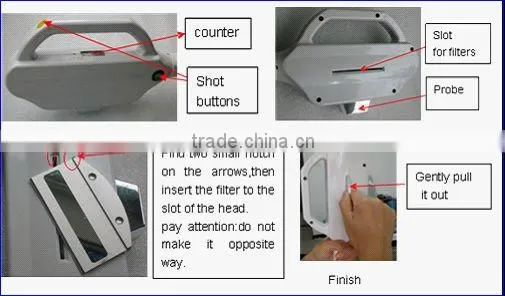

2. Filters and Treatment head
3.Treatment handle
Installation of E-light handle
1 2
Install: First press down the two buttons of CPC joint.
Secondly target them, insert in the right way.
Disconnect the CPC plug
Firstly press down two buttons of CPC joint with two fingers as left picture,
after definitely be pressed into, it's time to pull out.
4. Filling water
Gently squeezing the watering bottle, it will help to watering faster.
5. Operation
Technical Parameters
Display |
8.4 inch touch display |
Stand handle |
12*30mm with 3 filters (another 4 for choosing) |
Energy |
1-50J/cm2(IPL) 1-50J/cm2(RF) |
Shot period(Frequency) |
1-5 second adjustable |
Lamp longevity |
50,000shots |
Cooling system |
Wind +water +semiconductor |
Voltage |
AC 110V/220V,60Hz/50Hz |
iii. RF Part
Getting started

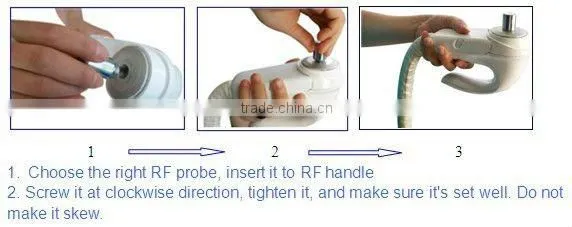

Probes and RF handle (choose one probe and fit it in the handle)
10mm/20mm for face, 40mm for body treat.
Operation
Technical Parameters
RF output power |
350W |
Energy |
1-50J/cm2 (adjustable) |
|
Probe(monopolar) |
10mm:for eyes & face |
20mm:for face & body | |
40mm:for body | |
RF Frequency |
600-1500KHz |
Power supply |
220V/110V 50Hz/60Hz |
iv. Laser part
Introduction
Treatment Theory
Eliminate spots, remove tattoos: The specific laser wavelength will effect on and melanin of
epidermis and dermis. The pigments will begin to swell and explode to tiny particles after
absorbed this high energy laser. One part of them will be shot out of the body, the other parts
will be gradually removed by metabolism.
Tighten skin, contract big pores: Spread specific fine carbon on face, after absolutely infiltrated
in pores, then to shoot, it's easily burst the carbon particles to break out the spots and cutin of
epidermis. The heat will stimulate regrowth of collagen, to tighten skin and shrink pores.
Application
1.To contract large pores, whiten skin, lighten spots & pigmentation;
2.To wipe out tattoos, to eliminate eyebrow cleaning, eyeline cleaning, age spots, birthmark.
532nm probe for color tattoo and pigmentations and have a higher energy
1064nm probe for black tattoo and pigmentations
Technical Parameters
Laser type |
Q-switched ND:YAG laser |
Laser wavelength |
532mn,1064mn |
Frequency |
1-6Hz |
Cooling system |
Wind cooling+Water cooling+Semiconductor |
Light source |
220V/110V 50Hz/60Hz |
Features
Moderate treatment, no risk of scars and wound. It's the most moderate laser treat.
No side effect, no recovery time, back to work at once.
Operation
Packing
Delivery
OEM
We are the professional manufacturer and exporter of beauty equipments.
We have our own research &development department and our own factory.
We can provide the OEM and ODM service for the distributor all over the world.
We supply:
1. Criolipolisis Fat Freeze Slimming Machine;
3. Laser Slimming Machine;
4. Cavitation Slimming Machine;
