Feature and Benefits:
1) Innovative in laser technology, strict in technical detection, precise in manufacture.
2) Special designed cooling system ensures constantly working.
3) New fashionable outlook design.
4) Portable and aseismatic, convenient for transportation.
5) No injury to normal tissue.
6) Remove pigmentation without side effects or scar.
7) Accurate infrared indication light makes the spot position more accurately and increases the utilization of light point

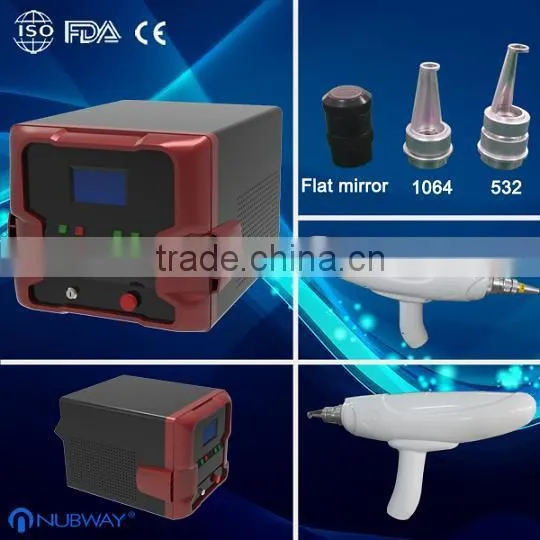

Cheap Tattoo Laser Removal Q Switched Nd Yag Laser Beauty Machine
Real Picture
Specifications
Laser type |
Q-swiched ND: YAG |
Wavelength |
1064nm/532nm |
Pulse Energy |
400mJ-800mJ |
Maximum output energy density |
15mJ/cm2 |
Pulse Duration |
10ns |
Pulse rate |
1-5Hz |
Cooling system |
Water cooling |
Power |
AC220v/50Hz/110v/60Hz |
Operating principle
The Q-switched ND: YAG laser delivers light of specific wavelengths with high energy which are absorbed by the pigment in the tattoo and result in a shockwave. The shockwave shatters the pigment particles, releasing them from their encapsulation and breaking them into fragments small enough for removal by the body. These tiny particles are then eliminated by the body. Since this specific wavelength can only be absorbed by pigment particles, no injury to skin and normal tissues will occur.
Treatment scope
A. Removal endogenous pigment: Nevus of Ota, coffee spot, age pigment, freckle etc
Before and after picture
Working Principle of laser tattoo removal :
Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Q-switch neodymium: yttrium aluminium garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.
Laser pigment removal machine though high energy of laser transient emission, make irradiated pigment particles absorb energy expansion rupture. Most or all of epidermal pigment group split into smaller tiny particles immediately ruled out in vitro. Part of dermal pigment group fragment into body macrophage phagocytic particles that ingest and excrete through the lymphatic system, thereby eliminating pigment. Due to normal tissue on 1064nm laser absorption is very few, maintaining the cell frame complete. No scar formation conditions. Because of the laser pigment removal is no damage to normal tissues, its security guaranteed maximum customer without complications from postoperative.
Gradually the pigment becomes lighter and lighter till disappearing. Gradually the pigment becomes lighter and ligher.
Details show
Our Service
3-year warranty |
During warranty time, any problems, we solve for you based on your description. |
Online Training |
Except Manuals and videos are provided with the machine, On-line trainning is also available. |
OEM/ODM |
Design new shapes, stick labels and edit new specificatiobs based on your requests; |
Our Delivery
Our Capacity
Beijing Nubway S & T Development Co., Ltd is the professional manufacturer of beauty equipment, medical equipment, Skin Analyzer System Beauty Salon products and so on.
Our company was built in 2003, we have our own research and development department and our own factory so we can provide OEM and ODM service for the distributors all over the world.
Applications:
1. Remove all kinds of tattoo.
2. Remove pigmentation formed by pathological changes of pigment skin and mixed color, dermis spot, fleck,
black nevus, age pigment, birthmark and Nevus of Ota.
3. Remove all kinds of embroider eyebrow tattoo, embroider lip tattoo, soak lip tattoo, embroider eye line tattoo and lip line tattoo.
4.With skin rejuvenation treatment head (OPTIONAL).can fade acne scar,skin rejuvenation ,skin whitening,astringe pores ,remove black head .
Clients visit our factory
Contact us
Elaine Xu
Beijing Nubway S & T Development Co., Ltd
Add: Room 805 No.12,Yabao Rd Chaoyang District Beijing 100020 China
Phone: 0086-10-51206522
Mob: 0086 18515659610
Skype: danXu
Email: Elaine(@)
1.With infrared light, more accurate shoting treatment area.
2.Different machine chassis option matches style of hospital, clinic, salon, beauty spa, home use, etc.
3.Water temperature and water flow alarm system ensure long time safe working.
4.Germany imported laser rod ensures higher light transmittance, with better working performance.
5.Taiwan import power supply, confirm the machine stable and strong output energy.
