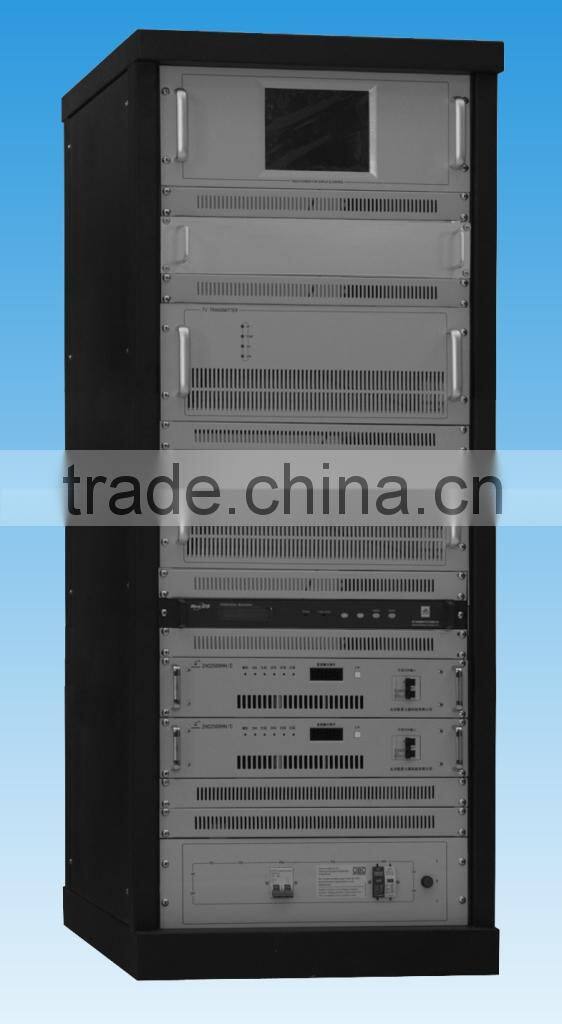

New Professional 2KW TV Transmitter High Reliability UHF/VHF

US$ 13,300 - 15,900 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

ZHC

Model Number:

ZHC518A-2KW

Hangzhou Zhongchuan Digital Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name ZHC

Model Number ZHC518A-2KW

Specifications

2KW TV Transmitter Professional designed and manufactured,
High reliability
Low price.

New Professional Analog 2KW TV Transmitter

Low price
High reliability
Switched power supply
Professinal designed for TV stations

Power: 2KW in a 1-meter height 19' rack

Big color LCD with touch panel displays real-time parameters

Description:

This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias (with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.
The 2KW transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.

Features:

The whole machine is single-channel, image with audio together.
The management and monitoring are intelligent and on network, it has the external PC interface.
It has the technical data detection, monitoring systems and full-featured computer control software with auto-diagnostic function. All technical parameters can be read through the LCD display panel.
Comprehensive protection measures can reduce the damage of equipments. This machine has protection about no video; VSWR is too large, overheating, over-stimulus, missing phase protection and lightning protection. The switch has protection about overvoltage, over current, under voltage, over temperature, short circuit and lightning protection.
All power supplies are switching power supplies; high efficiency, excellent regulator range, strong adaptable from the change of the external voltage.
It adopts modular design concept.
Hot-pluggable design: power amplifier and switching power are supporting the Hot-plug, it’s easy to debug and maintenance; improve the reliability.
The fan is built-in the chassis, the transmitter has a compact structure and a beautiful shape.

Technical Specifications:

Overall performances:

1. Working frequency: VHF/UHF Channel arbitrary choice	6. RF output interface: Φ40
2. Output power: 2KW	7. Power supply: Single-phase 220V
3. Output impedance: 50Ω	8. Shape size: 1475mm×960mm×675mm
4. Inter-modulation distortion: ≤-50dB	9. Weight:220KG
5. Useless transmission:In adjacent channel ≤-40dB;Out adjacent channel ≤-60dB	10. VSWR of output load impedance:≤1.12

Image performance:

1. Video frequency input level:1VP-P positive polarity	4. DP: ±5°
2. Video frequency input impedance: 75Ω	5. Luminance nonlinear: ≤10%
3. DG: ±5%	6. Group delay:≤±60ns

Sound performance:

1.Audio input level:0dBm±6dB	4.Harmonic distortion:≤1%
2.Audio input impedance:10KΩ (imbalance), 600Ω (Balance)	5.Signal-to -clutter: ≥60dB
3.Maximum frequency deviation:±50KHz	6. The amplitude frequency characteristics: ±1dB
