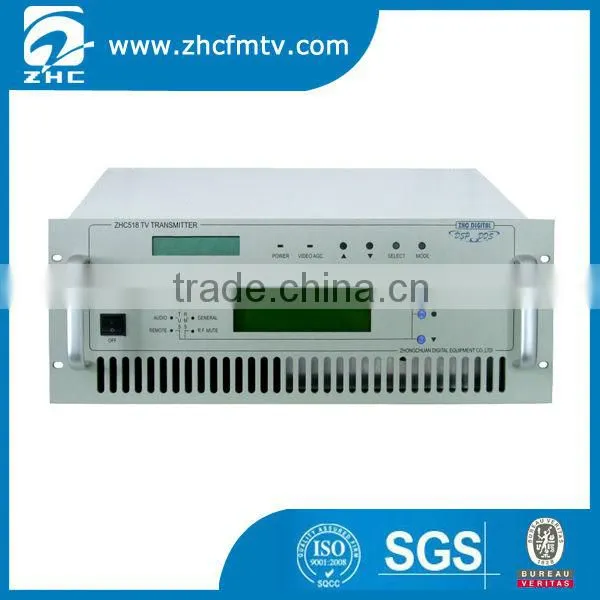

50W DVB-T Transmitter
- 500 Set / Sets per Month
- Shanghai
- Credit Card PayPal
- In stock PJ-208B earphone audio socket 4-pin 2.5 plug earphone socket plastic plug
- In stock PJ-208A earphone audio socket 4-pin 2.5 plug-in anti wolf alarm plug
- simar popular 22/24 inch self-reversing monitor tempered glass mirror presidential conference meeting speech teleprompter
- simar Best selling 20/22/24/27/32 inch self-reversing flip monitor M-ZYS20/22/24/27/32 teleprompter
- 17/20/22/24/27/32 inch Broadcasting studio prompter teleprompter for recording
- NIORFNIO T50M 50W FM transmitter, high-power USB playback farm application 5-kilometer range
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | ZHC | Model Number: | ZHC518D-50W |
Product Description
Specifications
50W DVB-T transmitter,high performance,Module design,
MCU controlled,
RS485/232 interface,
Professional 50W Digital TV Transmitter for TV Station
Features:
- All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
- Pre-distortion correction, dual-exciters switch automatically.
- High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency transmitter.
- Telemetry and remote control by computer, web-based interface and software.
- Good man-machine interface, full automatic switch the machine with one key.
- Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous works.
Technical Specifications:
1. Working frequency:UHF 13-48 channel arbitrary choice | 9. Amplifier input interface:L16 |
2. Channel bandwidth:8MHz | 10.Useless transmission:≤-60dB |
3. Output power:50W
| 11.Band fluctuations:±0.5dB |
4. Output impedance:50Ω | 12.Band shoulder:better than 36dB |
5. Output interface:L16
| 13.MER:better than 30dB |
6. Output load return loss:Normal operation: -32dB, Allowed operation: -20dB | 14.Size:400mm×600mm×950mm |
7. Power input level:0dBm
| 15.Weight:35KG |
8. Amplifier input impedance:50Ω
|
Company Show:
Working Progress:
We are in Exhibition:
Common Problems:
In order to be more comprehensive understanding of the knowledge about our products,we collect all the analyses of problems for every order,hope it will help you.
Q1. What these equipments used for?
A1. We are original manufacturer in FM Radio & TV Broadcasting equipments; they are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)
Q2. What equipment & solution your company can provide?
A2. We can do complete solution for FM Radio Station System. It includes:Studio--Link--Transmitter--Cables--Antenna.
We also can provide complete Transmitting part of TV Station. It includes:Link—Transmitter—Cables—Antenna.
Q3. How large areas can One Station cover?
A3. One FM or TV Station can cover one city or one town.
The Maximum cover ranges of one station can not over 100KM Radius because the Earth is Curve.
You can use Multiple Stations & Different Frequency to cover larger area.
Q4. How do I choose suitable equipments for my station?
A4. The most import factors are Power and Frequency.
We need to know the Power and Frequency you need exactly.
How long the distances do you want to cover in Radius?
How height your Antenna can be installed?
Q5. How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4 factors:
1. Power from Transmitter; 2. Height of Antenna; 3. Gain from Antenna; 4. Around Environment.
Then we can know the cover range of your station.
Q6. Is the Frequency Adjustable?
A6. FM Radio Band Frequency is 87~108MHz, TV Band Frequency includes UHF/VHF band.
For FM Radio Transmitter; Power Below 2KW is all adjustable. Above 2KW would be narrow.
For TV Transmitter; all Frequency Band is very Narrow, only can contain around 3 Channels; so it’s not adjustable.
Q7. How to do installation of these equipments?
A8. For small power station, the equipments are very easy for installation.
For large power station, we can send our engineer to your country to help you do the installation, but you should pay the cost.
We also can do training for your engineer here in our company.
Q8. How to operate these broadcasting equipments?
A9. We provide All-English user manual; All-English operation software in our equipment.
We also can do training for your engineer here in our company.
Q9. What about after sales?
A10. The warranty time is one year after goods leaving factory.
We can provide technical support from internet or in our company.
We can send spare parts to you directly when the equipment damaged.
ZHC(China)Digital Equipment Co.,LTD
ADD: No.59 BinKang Road,Hangzhou,311203,China
English Website: /
Chinese Website: /
Name: Mike Cai
Tel: +86-571-8238-1886
Mobile: +86-135-8821-5572
Fax: +86-571-8280-5738
