Flat Pannel High Gain tv Antenna

Specifications

flat pannel high gain tv antenna
Frequency range 470÷860MHz
Impedance 50Ohm
Connector 3-1/8″EIA flange
Max. power 15kW
VSWR ≤1.06 (in the operating channels after tuning)
Polarization Horizontal

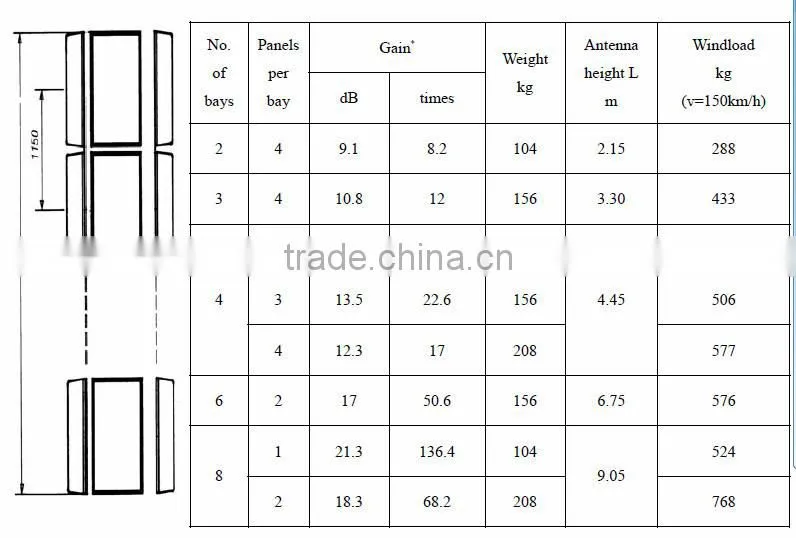

Gain See in the table
Horizontal Pattern Any type according to requirement
Vertical Pattern Null fill and beam tilt under request

* Referred to λ/2 dipole .Attenuation of the internal cabling and the gain-decrease in case of null fill in the vertical radiation pattern are not considered.
Approximate values for gain decrease:
cable attenuation: 0.2-0.5dB
null fill: 0.3-0.8dB
1

HORIZONTAL PATTERNS
WITH OFFSET 2 , 3 AND 4 FACES
AT 660 MHz
