Home > Products > FM Antenna > Brand New Professional Directional Dipole Antenna for Radio Transmitting

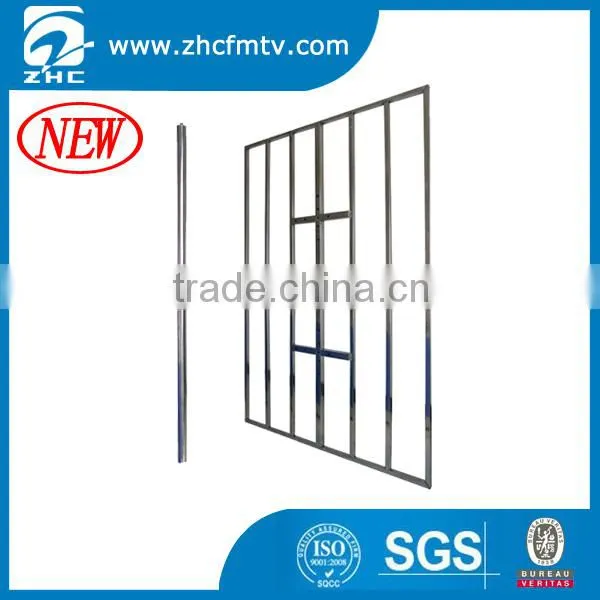

Brand New Professional Directional Dipole Antenna for Radio Transmitting
US$ 600 - 711
/ Set
1 Set(Min. Order)
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZHC | |
| Model Number | FM-DV2(HP) |
Product Description
Specifications
Band II panel,Broadband:87.5~108MHz,Demountable,Vertical or Horizontal polarization,Stainless steel AISI 304,Directional pattern
Professional Directional Dipole Antenna for Radio Transmitting
Electrical Data:
| Frequency range: | 87.5~108MHz | Impedance: | 50ohm |
| Connectors: | L27 female or 7/8" | Max Power: | 1KW(7/16'or 7/8')-3KW(7/8') |
| VSWR: | <1.25 | Polarization: | Horizontal or Vertical |
Gain: 4.5dB(refered to half-wave dipole)
Half power beam width E plane 320,H plane 580
Lightning protection All metal parts DC grounded
Mechanical Data:
| Dimensions: | 2000mm*1400mm*1075mm |
| Weight: | 32kg ref.stainless steel |
| Wind surface: | 0.13m2 (side); 0.56m2 (front) |
| Wind load: | 108kg(front-wind speed at 160km/h) |
| Maxwind velocity: | 200km/h |
| Materials: | Reflector:hotdip.galvanized Dipole:stainless steel Internal parts:passivated aluminium Radome:fiberglass (Option) |
| Mounting: | With special pipe clamps 50~110mm dia |
