Neodymium N35H Magnets / Neodymium Magnets N35H

Neodymium N35H Magnets / Neodymium Magnets N35H thumbnail-1
Neodymium N35H Magnets / Neodymium Magnets N35H photo-1
US$ 0.001 - 30 MOQ: 50 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Antai
Model Number:
NdFeB, N33-N52,33M-50M,33H-50H,30SH-45SH,30UH-40UH and 28EH-35EH
Contact Supplier Request Quote Chat Now
Shenzhen Antai Magnet Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Antai
Model Number NdFeB, N33-N52,33M-50M,33H-50H,30SH-45SH,30UH-40UH and 28EH-35EH
Type Other, Permanent, neodymium N35H magnets / neodymium magnets N35H
Composite NdFeB Magnet
Shape Other, customized, Bar,Block, Sheet,cylinder,cube, Coil, Ball, Stick, Strip

Specifications

neodymium N35H magnets / neodymium magnets N35H:
Neodymium rare earth magnet;
RoHS, REACH, ISO9001;
Competitive prices.

neodymium N35H magnets / neodymium magnets N35H



NdFeB rare earth magnet;
High working temperature;
RoHS, REACH, ISO certified;
Competitive price.



Grade:N28~N52(N,M,H,SH,UH,EH,AH)Working Temperature:≤ 220 °CMaterial:NdFeB
Shape:customizedSize:customized Coating:zinc
Density(g/cm3):7.4-7.6Br (Retentivity)10.2~14.9 KGs (1020~1490 mT)BHMax26~53MGOe (207~422 KJ/m3)



    PS: The parameters are different as per the difference of the grade.



neodymium N35H magnets / neodymium magnets N35H Specifications:

Material: Sintered Neodymium-Iron-Boron



Grade: N28, N30, N33, N35, N38,  N40,  N42,  N45,  N48,  N50,  N52  ( N, M, H, SH, UH, EH, AH )

Maximum Operating Temperature: Series N---80 °C; Series M---100 °C; Series H---120 °C; Series SH---150 °C; Series UH---180 °C; Series EH---200 °C; Series AH---220°C.

Shape: arc

Coating: zinc

Brmax: 14900 Gs



BHmax: 53 MGOe





Product Characteristics:



1) Dimension Range: 4x3x0.4 mm ~ 150x100x50 mm (i.e. 0.16 ″ x 0.12 ″ x 0.016 ″  ~ 5.9 ″ x 3.9 ″ x 2 ″ ), Other dimension please contact us for more details;

2) Application: chargers, sensors, motors, rotors, wind turbines,wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on;

3) Quality Assurance :  ISO 9001:2008,  RoHS, Reach Certified;

4) Physical Property of Magnetic Material: High Coercive Force, High density, High remanence and anti-demagnetizing, Strong corrosion-resistance,  Different series with different operating temperature.



            Sincerely welcome you to visit our factory and cooperate with esteemed OEM!!



Magnetic Property and Physical Property of Sintered Nd-Fe-B

neodymium N35H magnets / neodymium magnets N35Hneodymium N35H magnets / neodymium magnets N35H

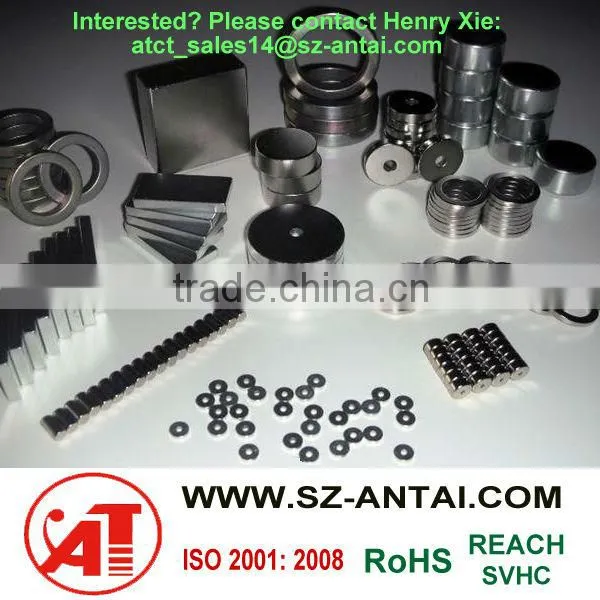

5)  Product Photo

 neodymium N35H magnets / neodymium magnets N35H

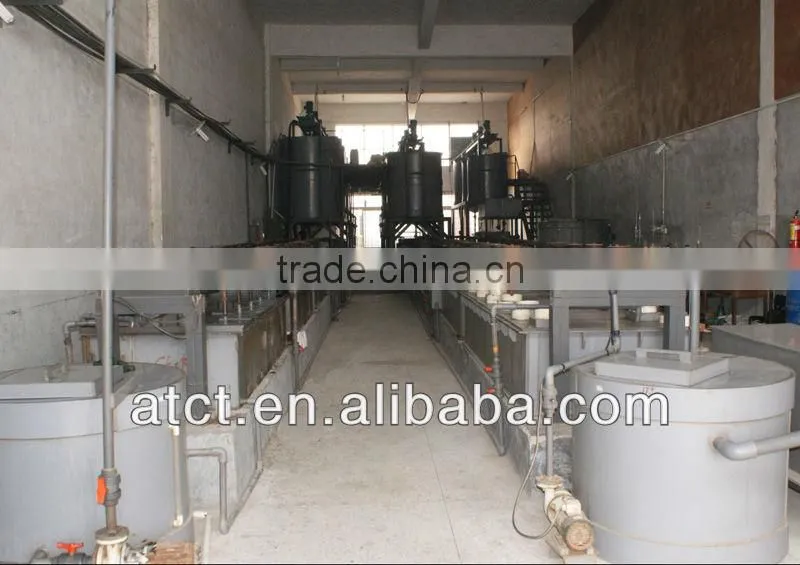

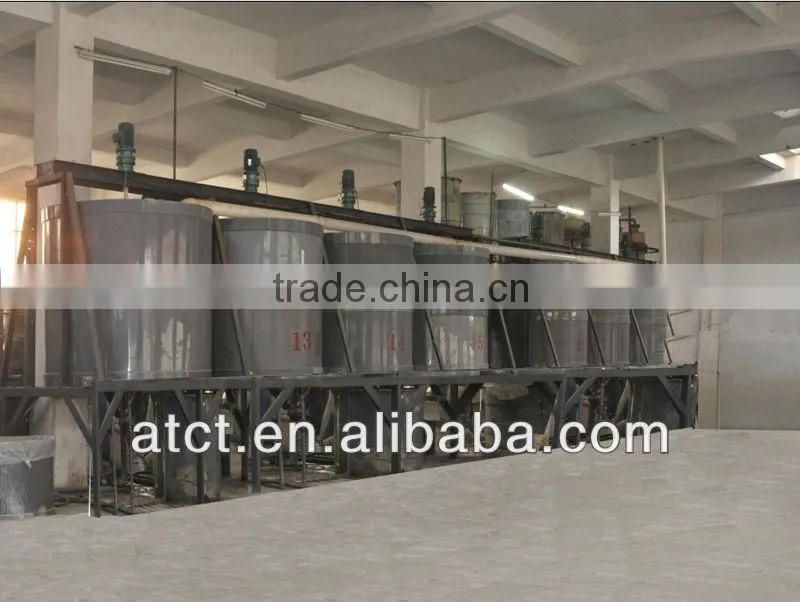

6) Factory View and Production Facilities



neodymium N35H magnets / neodymium magnets N35H



neodymium N35H magnets / neodymium magnets N35H



neodymium N35H magnets / neodymium magnets N35H



neodymium N35H magnets / neodymium magnets N35H
