Neodymium N48H Magnets / Neodymium Magnets N48H
- Shenzhen/Hongkong
- T/T L/C D/P D/A Credit Card
You May Like
-
ni Coating Ndfeb Magnets / ni Coating Magnets
-
Disk-shaped NdFeB Magnet / Disk-shaped Neodymium Magnet
-
Nicuni Magnet / Magnet With Nicuni Coating
-
Ring-shaped NdFeB Magnet / Ring-shaped Neodymium Magnet
-
Rectangular Shape Neodymium / Neodymium Rectangular Magnet
-
Fan Neodymium Magnet / Fan Shape Neodymium Magnet
Product Details
| Place of Origin | Guangdong, China | Brand Name | Antai | |
| Model Number | NdFeB, N33-N52,33M-50M,33H-50H,30SH-45SH,30UH-40UH and 28EH-35EH | Type | Other, Permanent, neodymium N48H magnets / neodymium magnets N48H | |
| Composite | NdFeB Magnet | Shape | Other, customized, Bar,Block, Sheet,cylinder,cube, Coil, Ball, Stick, Strip | |
Product Description
Specifications
neodymium N48H magnets / neodymium magnets N48H:Neodymium rare earth magnet;
RoHS, REACH, ISO9001;
Competitive prices.
neodymium N48H magnets / neodymium magnets N48H
NdFeB rare earth magnet;
High working temperature;
RoHS, REACH, ISO certified;
Competitive price.
| Grade: | N28~N52(N,M,H,SH,UH,EH,AH) | Working Temperature: | ≤ 220 °C | Material: | NdFeB |
| Shape: | customized | Size: | customized | Coating: | zinc |
| Density(g/cm3): | 7.4-7.6 | Br (Retentivity) | 10.2~14.9 KGs (1020~1490 mT) | BHMax | 26~53MGOe (207~422 KJ/m3) |
PS: The parameters are different as per the difference of the grade.
neodymium N48H magnets / neodymium magnets N48H Specifications:
Material: Sintered Neodymium-Iron-Boron
Grade: N28, N30, N33, N35, N38, N40, N42, N45, N48, N50, N52 ( N, M, H, SH, UH, EH, AH )
Maximum Operating Temperature: Series N---80 °C; Series M---100 °C; Series H---120 °C; Series SH---150 °C; Series UH---180 °C; Series EH---200 °C; Series AH---220°C.
Shape: arc
Coating: zinc
Brmax: 14900 Gs
BHmax: 53 MGOe
Product Characteristics:
1) Dimension Range: 4x3x0.4 mm ~ 150x100x50 mm (i.e. 0.16 ″ x 0.12 ″ x 0.016 ″ ~ 5.9 ″ x 3.9 ″ x 2 ″ ), Other dimension please contact us for more details;
2) Application: chargers, sensors, motors, rotors, wind turbines,wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on;
3) Quality Assurance : ISO 9001:2008, RoHS, Reach Certified;
4) Physical Property of Magnetic Material: High Coercive Force, High density, High remanence and anti-demagnetizing, Strong corrosion-resistance, Different series with different operating temperature.
Sincerely welcome you to visit our factory and cooperate with esteemed OEM!!
Magnetic Property and Physical Property of Sintered Nd-Fe-B

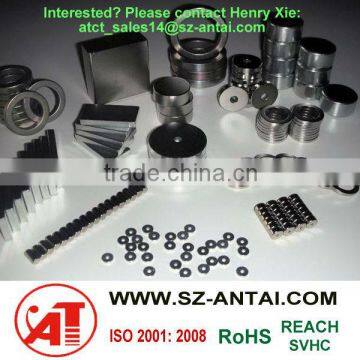

5) Product Photo
6) Factory View and Production Facilities
