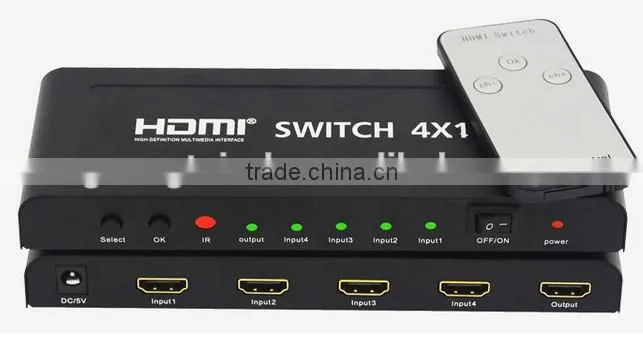

High speed 1080p 4x1 HDMI switch with IR remote controller
Product description

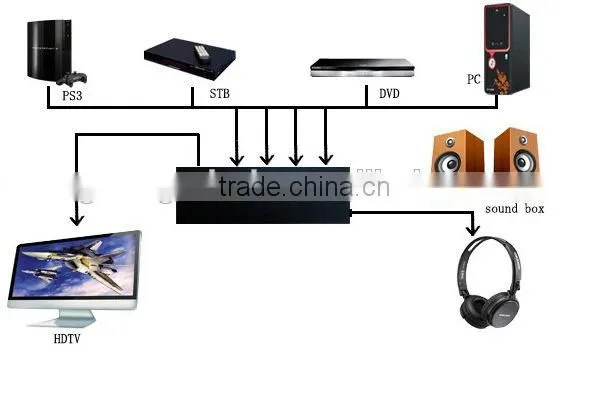

The 4x1 HDMI Switcher routes high definition video with 1080p (it could be upgrated to 4K*2K in multiple resolutions up to 4k x2k) and digital audio from any one of the four sources to display unit, the upgragted 4x1 HDMI switch Support PIP (Picture in Picture).Four inputs accommodate the simultaneous connection of up to four high definition video sources, such as satellite systems and HD DVD players. The output sends the high definition audio/video signals to a high definition display. This kind of the HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function.
Features;
1. Support multiplexed HDMI 4-input.
2. Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0 & VESA DisplayPort 1.1a standards.
3. HDMI 1.4 support: 3D TV support, CEC1.4.
4. HDC repeater support.
5. Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per color depth.
6. Audio support:
HDMI 1.4 compatible audio interface
Dedicated, flexible audio input/output port
TrueHD
HD Master Audio 7.1CH
Full audio input and output support
Specification:
Frequency Bandwidth |
2.97Gbps |
Input Ports |
4 x HDMI Female ports. |
Output port |
1 x HDMI Female port,1x Toslink,1x Earphone |
HDMI Audio Output |
PCM2, 5.1, 7.1CH, 5.1, D-TrueHD, HD |
Power Supply |
5V/1A DC (US/EU standards, CE/FCC/UL certified) |
ESD Protection |
Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
Dimensions (mm) |
164(D) x85 (W) x 25(H) |
Weight (g) |
350 |
Power Consumption |
3W |
Operating Temperature |
0C ~ 40C / 32F ~ 104F |
Storage Temperature |
-20C ~ 60C / -4F ~ 140F |

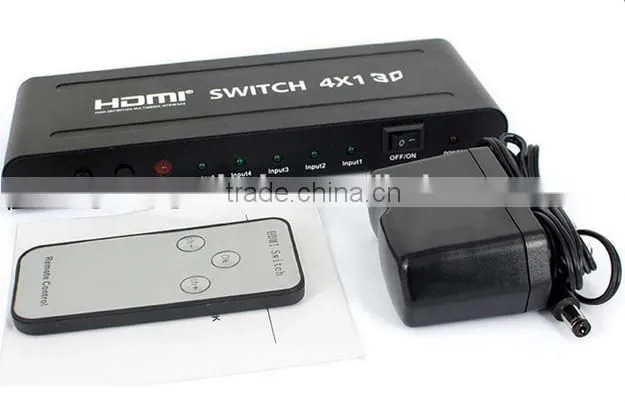

Package
1. HDMI 1.4 4by1 Switcher
2. 5V DC Power Supply Adaptor
3. Remote control
4. Operation Manual
Factory view
1.Located in Doumen district,ZhuHai city,Guangdong province.
2.Professional teams with skills.
3.Main production:HDMI splitter,HDMI converter,HDMI switcher,etc.
4.Best after sales service and 1 year warranty.
Our service
1.Sample is possiable
2.OEM and ODM service
3.Best after sales service.
