Hdmi Splitter 1*16 High Speed 1080p

 hdmi splitter 1*16  high speed 1080p

 Product description

The 1x16 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks.

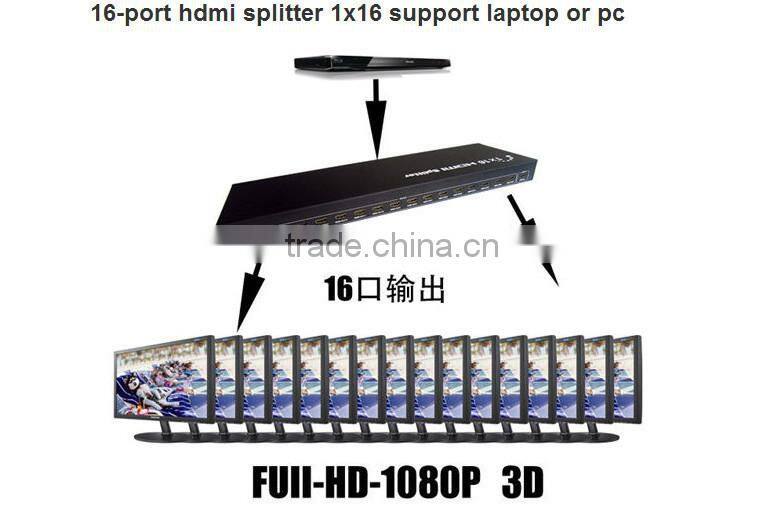

The Splitter allows one HDMI devices to be split easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

HDMI splitter 1 in 16 out

Features

1.One HDMI 1.3v input signal split to sixteen HDMI 1.3vsink devices

2.HDCP 1.2 protocol compliant

3.Support CEC

4.Support deep color 30bit, 36bit

5.Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

6.Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

7.Support signal retiming

8.Support input up to 15metres AWG26 HDMI 1.4 standard cable length, output up to 25metres AWG26 cable length

9.No loss of quality

10.Installs in minutes

11.Need DC5V/4A power supply

SPECIFICATIONS:

HDMI version……………………………………………… HDMI 1.3v

HDCP version……………………………………HDCP1.2

HDMI resolution ………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………..225MHz

Max transmission bandwidth…….………………………..6.75Gbps

Input/Output TMDS signal ……………………0.5~1.5Volts p-p(TTL)

Input/Output DDC signal …………………………… 5Volts p-p (TTL)

Input cable distance..…... ……………………….……≤15m AWG26 HDMI 1.4standard cable

Output cable distance…………………………….…...≤25m AWG26 HDMI 1.4  standard cable

Power adapter format..Input: …………......AC (50HZ, 60HZ) 100V-240V; Output: DC5V/4A

Operating Temperature range…………………………… (-15 to +55°C)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Operating and Connecting:

1.Connect one cable from HDMI source devices into HDMI Splitter input.

2.Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.

3.Connect 5V power supply to the HDMI 1x16 Splitter.

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.

1.The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

2.All parts will be free from the strong shake, hit, fall.

3.Touching the power adaptor with the wet hands is prohibited.

4.Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.

5.Pls turn the power off when the machines is not used for long time.

6.Pls do not open the cover and do not touch the inside parts.

7.Pls use the original factory power adptor.

This splitter works with:

1.Blu-ray Players

2.Playstation 3 (PS3) & Xbox 360 Elite

3.HDMI Supported Laptops & PCs

4.Satellite HD Receivers

Factory view

1.Located in Doumen district,ZhuHai city,Guangdong province.

2.Professional teams with skills.

3.Main production:HDMI splitter,HDMI converter,HDMI switcher,etc.

4.Best after sales  service and 1 year warranty.

 Our service

1.Sample is possiable

2.OEM and ODM service

3.Best after sales service.

Packing &Shipping

Packing:Polybag pakage in a standard export carton.

Shipping:DHL,UPS,FEDEX,TNT,by air  and sea.
