HDMI Extender 200ft Over Network CAT5E/6 Cable Extension 3D 1080P

Accept Paypal China Factory

Introduction

The HDMI  Extender 60M by single cat5e/6  is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT5E/CAT6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over ONE CAT5E/CAT6 extender is your substantial HDMI extender tool.

Features

One pair as a full functional module, no need of setting.

- Use CAT-5E/6 cable to substitute HDMI cable to achieve long distance transmission.

- Follow the standard of IEEE-568B.

-Transmission distance reaches up to 60 meters for 1080i.

- Auto-adjustment of feedback, equalization and amplify, the user does not need to care aboutthe length of the cable.

- Compact size.

- Signaling rates up to 2.25Gbits in support of 1080P display.

- Each port supports HDMI or DVI inputs.

- HDCP compliant.

SPECIFICATIONS

Length of CAT-6 cable between Rx and TX…..……………….…………………..60 meter 200ft

HDMI Input…..………………….........………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input..………..…DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output…..…………….…...………..…24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output...……. ……………………..………LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………..…….……………………165MHz

Max baud rate……………….…….………………….……………...………………………4.95Gbps

Input/Output HDMI cable distance………….………………...≤15m AWG26 HDMI standard cable

Max working current……………………………………………………..……….…………...1000mA

Power adapter format………..…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A(RX/TX)

Operating Temperature range……..…………….……………………….…………… (-20 to +55°C)

Operating Humidity range………………………….……..……….5 to 90%RH (No Condensation)

Dimension (L x W x H)     ……………………………….…………………82x44x22 (mm) (RX/TX)

Connection

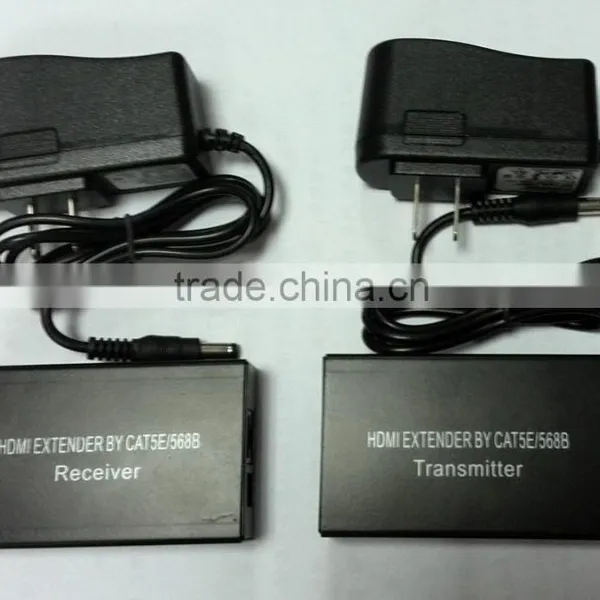

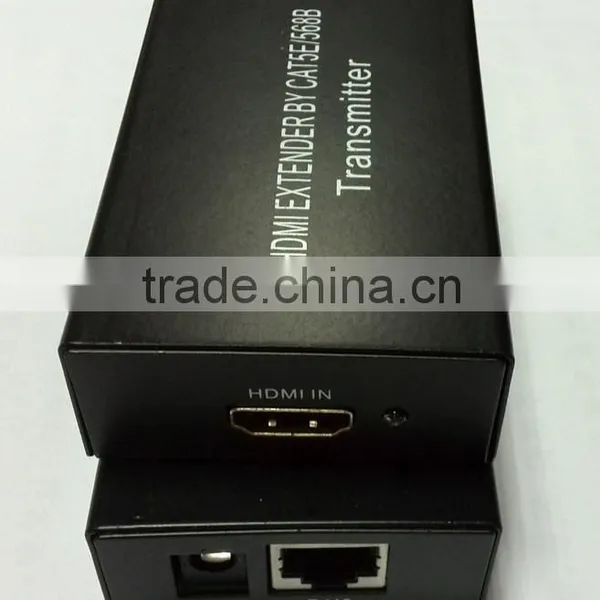

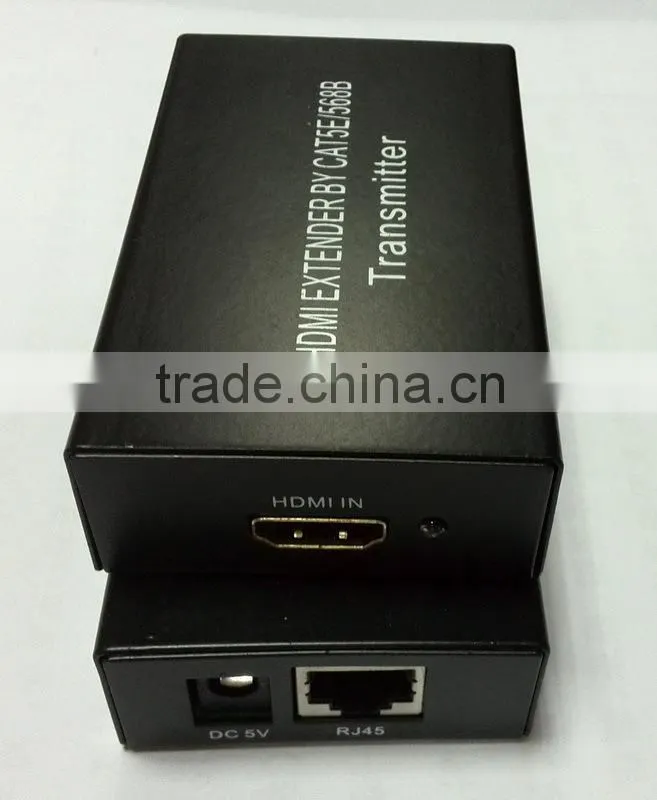

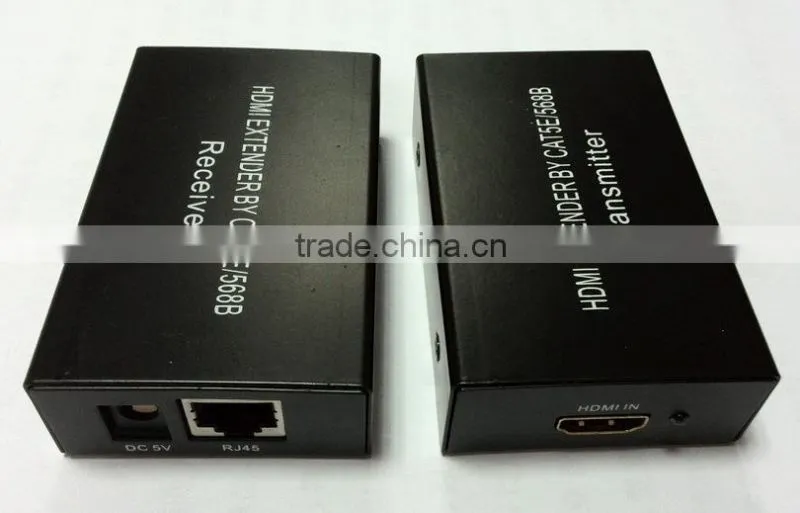

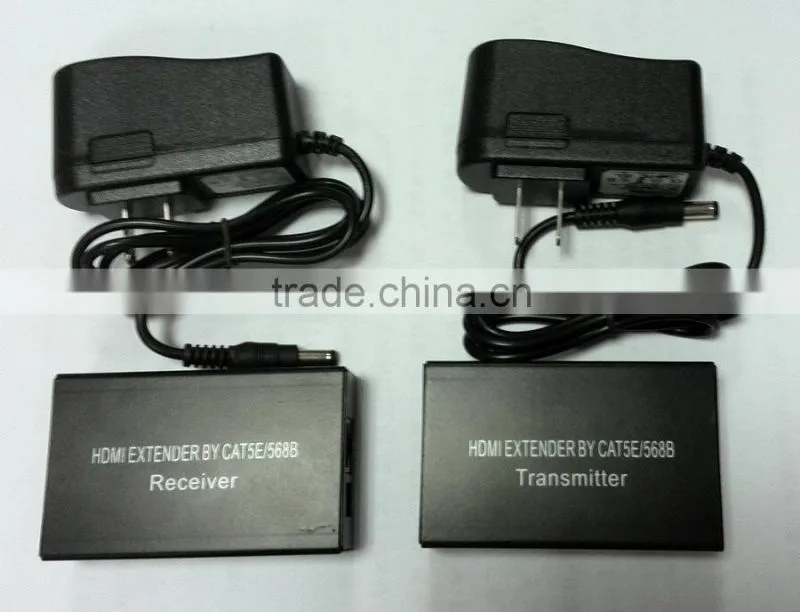

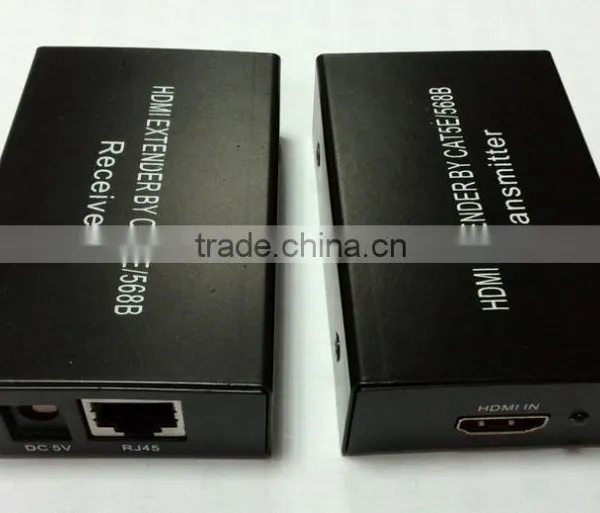

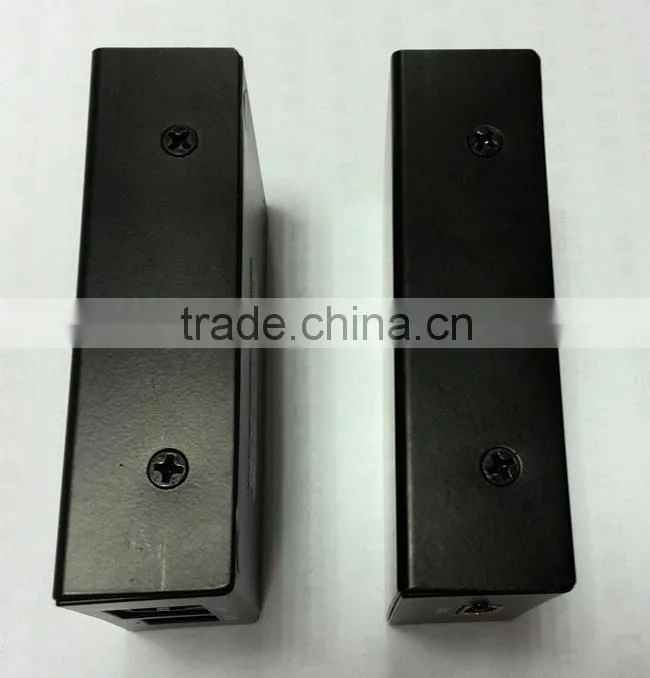

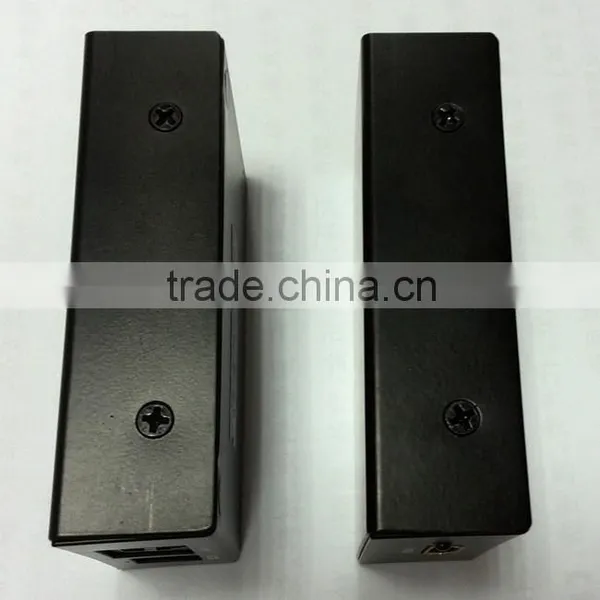

Product Photo

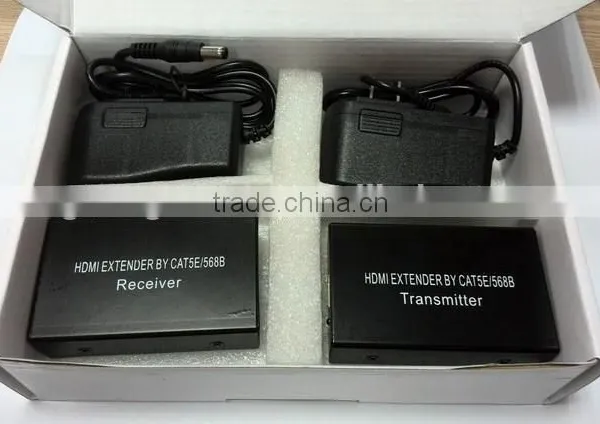

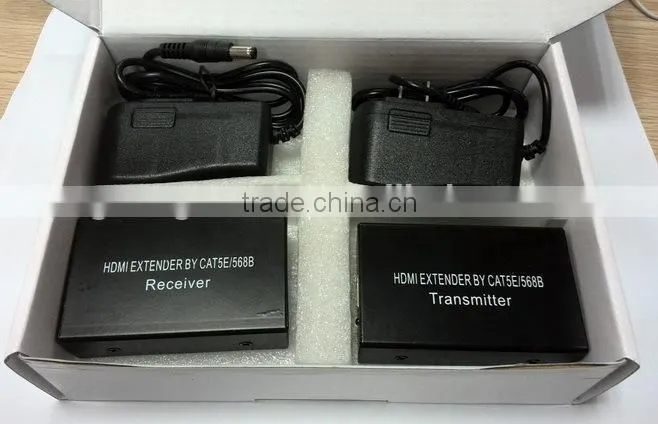

Packaging

1x Receiver
1x Transmeter
2x Adaptor
1x Manual



Shipping Way

1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)

2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement

3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities

4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Delivery Time

1. Sample within 1-3 days

2. Wholesales Orders : 3-7days according various quantities

3. OEM 7-10 days after receiving your sample confirmation and payment.

 Warranty Police

1. 1 years warranty for the products.

2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free

3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
