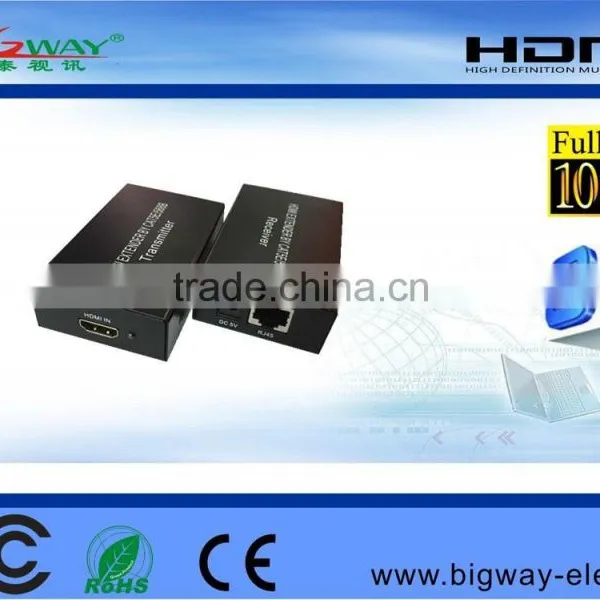

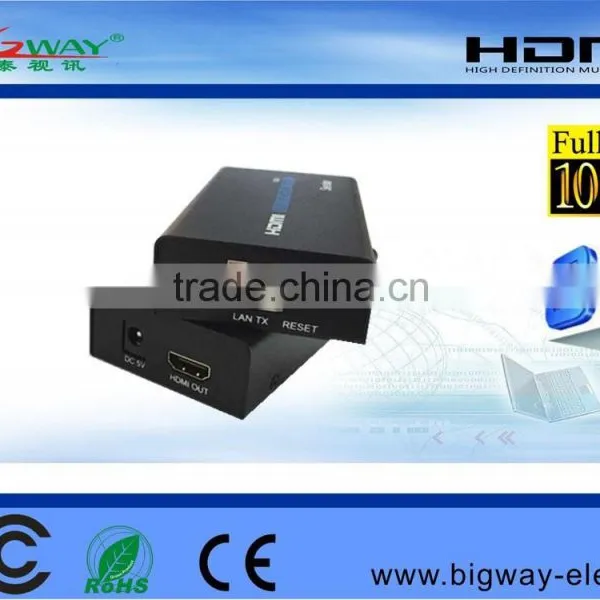

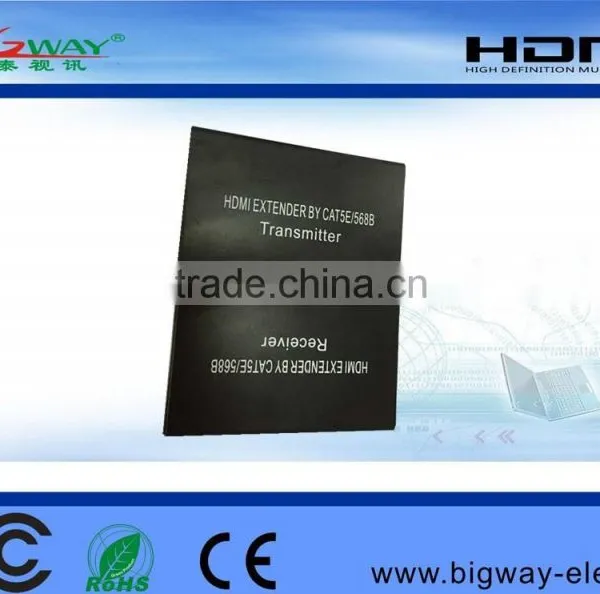

60m extender over single Cat6/Cat.5e /568B HDMI Extender
Model name: 60m extender
Introduction:
The HDMI Extender 60M by single cat5e/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT5E/CAT6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over ONE CAT5E/CAT6 extender is your substantial HDMI extender tool.
Features:
One pair as a full functional module, no need of setting.
- Use CAT-5E/6 cable to substitute HDMI cable to achieve long distance transmission.
- Follow the standard of IEEE-568B.
-Transmission distance reaches up to 60 meters for 1080p and 120 meters for 1080i.
- Auto-adjustment of feedback, equalization and amplify, the user does not need to care aboutthe length of the cable.
- Compact size.
- Signaling rates up to 2.25Gbits in support of 1080P display.
- Each port supports HDMI or DVI inputs.
- HDCP compliant.
SPECIFICATIONS
Length of CAT-6 cable between Rx and TX…..……………….…………………..Up to 60 meters
HDMI Input…..………………….........………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………..…DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output…..…………….…...………..…24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output...……. ……………………..………LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………..…….……………………165MHz
Max baud rate……………….…….………………….……………...………………………4.95Gbps
Input/Output HDMI cable distance………….………………...≤15m AWG26 HDMI standard cable
Max working current……………………………………………………..……….…………...1000mA
Power adapter format………..…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A(RX/TX)
Operating Temperature range……..…………….……………………….…………… (-15 to +55°C)
Operating Humidity range………………………….……..……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….…………………82x44x22 (mm) (RX/TX)
Connection
Factory view
1.Located in Doumen district,ZhuHai city,Guangdong province.
2.Professional teams with skills.
3.Main production:HDMI splitter,HDMI converter,HDMI switcher,etc.
4.Best after sales service and 1 year warranty.
