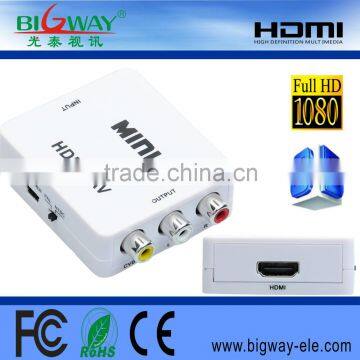

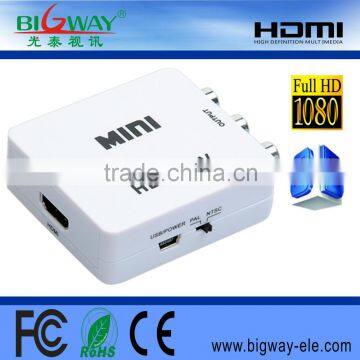

1080P HDMI to RCA Converter Box
High Quality 1080p HD link HDMI to AV Converter box
The MINI HDMI to AV signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format
Features
By added BNC connector, can connect to security camera directly. Supports HDMI digital audio to FL / FR stereo audio. HDCP Automatic Identification and remove. Hot plug, no need to install any drivers Automatically detects the best resolution of your monitor. Super long hours for 7×24 hours without stop.
1.Full HDMI signal convert to CVBS, Video output deal by scale down.
2. Zoom function can auto adjust the TV image output.
3. Auto recongize HDCP compatible with HDCP signal.
4. HDMI digital audio, through DAC dealing convert to Audio output
5.By video technological, with the color brightness, color contrast, and so on
6. More clear of the CVBS image display.
7. AV output 4:3@16:9 support

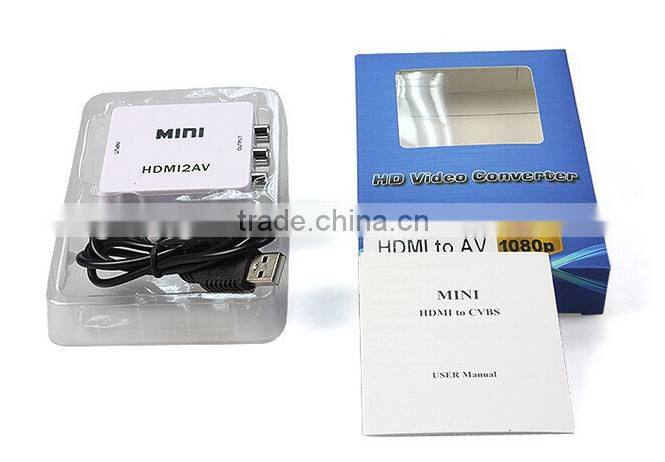

1080P/720P HDMI to AV Converter HDMI to RCA Converter box
Connection
- Connect HDMI cable from DVD or note book or PC HDMI socket to converter HDMI socket
- Connect AV cable from converter AV socket to monitor or TV AV socket
- Connect RCA cable from converter R/L(Audio) jack to monitor or TV R/L (Audio) jack
- Plug DC5V power
Specification

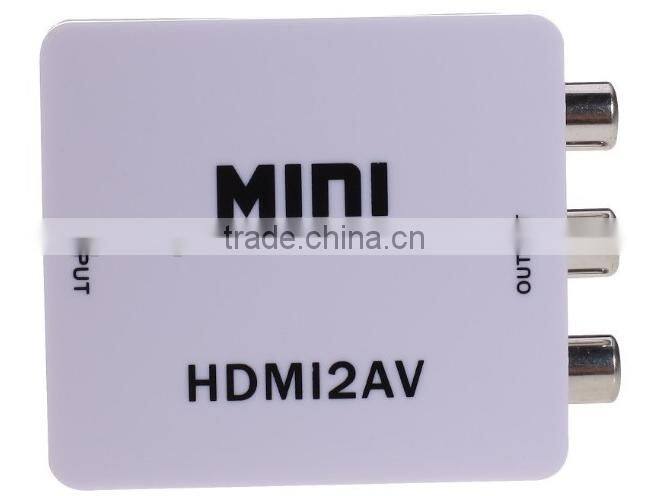

1080P/720P HDMI to AV Converter HDMI to RCA Converter box
1)Output: AV(CSVB)-CVBS(1.0vPP) S-Video(Y:1.0Vpp),C:0.3Vpp
2)Input: HDMI1.3 / 1.2
3)Interface: HDMI, AV(CVBS)
4)Power Consumption: +5VDC / 400mA by AC adapter.
5)Supported Modes: Extended Desktop(Default), Mirrored Desktop, Primary Display
6)AV Output: PAL / NTFS Standard
7)Input Resolutions Support:
HDMI: 480P,576P,720P,1080I,1080P@60Hz
DVI: 800x600,1024x768,1280x720,1280x1024,1920x1080/@60hz
8)Output Resolutions Support: 480I,576I
9)Compliance: RoHS
10)Video output resistance: 75Ω
11)Temperature: Operating temperature. 10 °C~ 40 °C (50-104°F) Relative Humidity. < 85% Storage temperature. -10 °C ~85 °C (14~176°F)
12)Dimensions: 100(W) x 105(L) x 25(H) mm
13)Housing: Aluminium Alloy
14)USB Wire: USB 3.0 A-Male(to Computer)-USB3.0 B-Male(to USB Docking Station)
Failure Check:
1. No signal output
A. If LED power indicator is not light, check whether the input access to the mains power supply (AC110 ~ 220V).If external power supply LED does not light, check whether the electronic exchange. Or external power supply bad
B. LED light, check the HDMI output device are set to the HDMI OUT, HDMI cable for damage, AV display devices, whether or not cut to the AV (CVBS) channel
2. No color
A. Check the AV cable damage or not.
B.NTSC-PAL formats with no corresponding NTSC or PAL TV

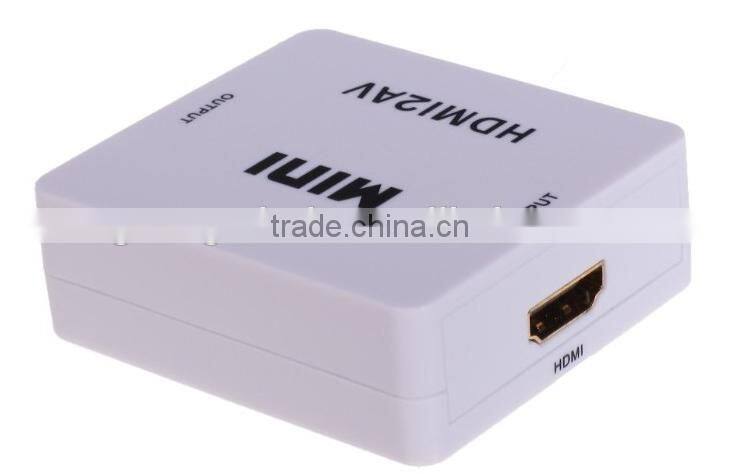

1080P/720P HDMI to AV Converter HDMI to RCA Converter box
1080P/720P HDMI to AV Converter HDMI to RCA Converter box
Bigway could do for you:
(1). Help customer open private model and offer customized products .
(2). Price can be negotiated based on your mass order quantities.
(3). One year warranty, two years warranty regional.
(4)We are a package of R&D, production, selling and service, and we have a professional design team.
(5). Logo and Package free print for large QTY.
(6). ODM & OEM available.
(7). Continuing products update and loyal after-sales service.
(8). Balance after you confirm the B/L to avoid your import risk
1080P/720P HDMI to AV Converter HDMI to RCA Converter box
1.Located in Doumen district,ZhuHai city,Guangdong province.
2.Professional teams with specialty design and reserch.
3.Main production:HDMI splitter,HDMI converter,HDMI switcher,ezcast etc.
4.Best after sales service and 1 year warranty.
1080P/720P HDMI to AV Converter HDMI to RCA Converter box
