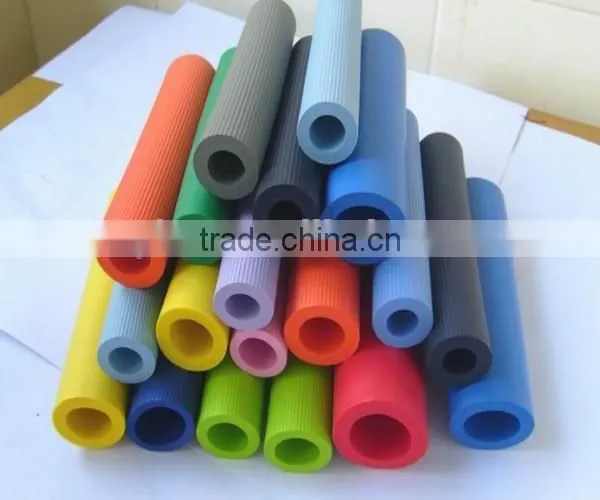

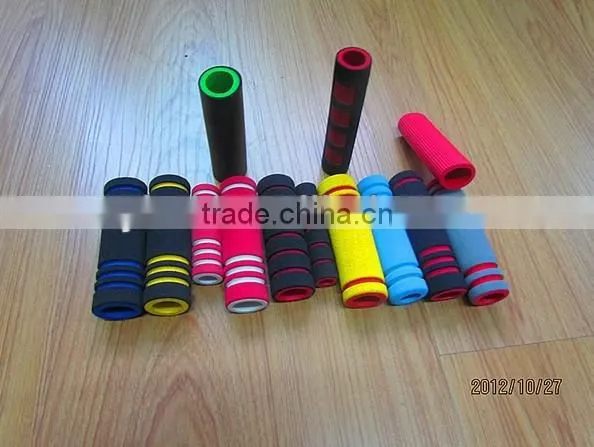

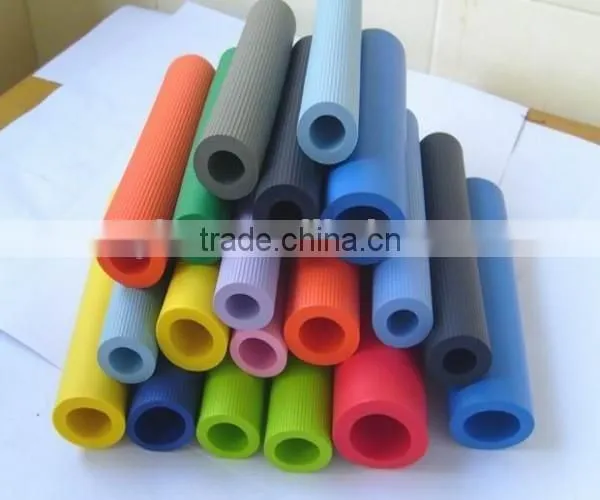

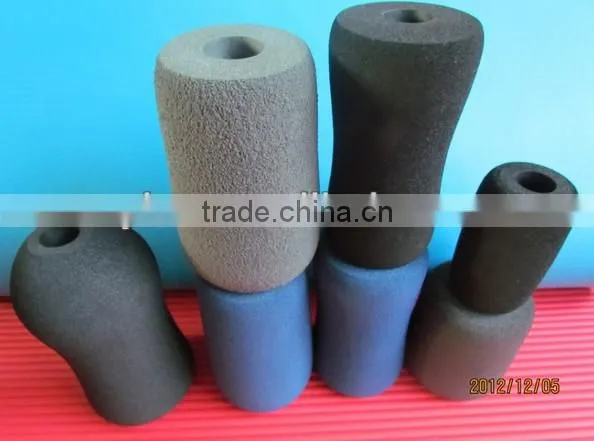

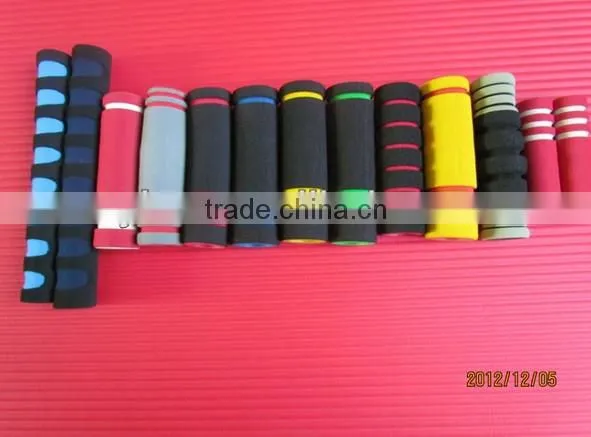

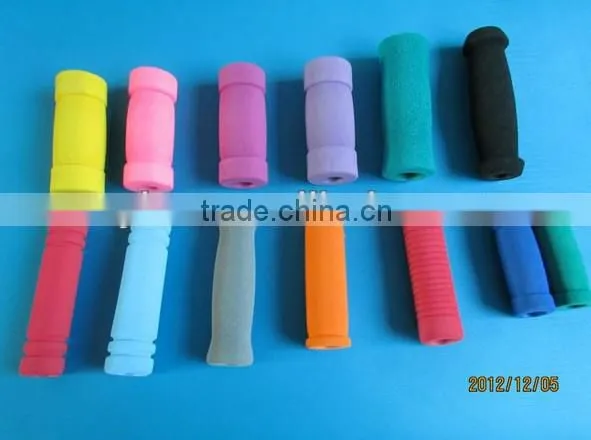

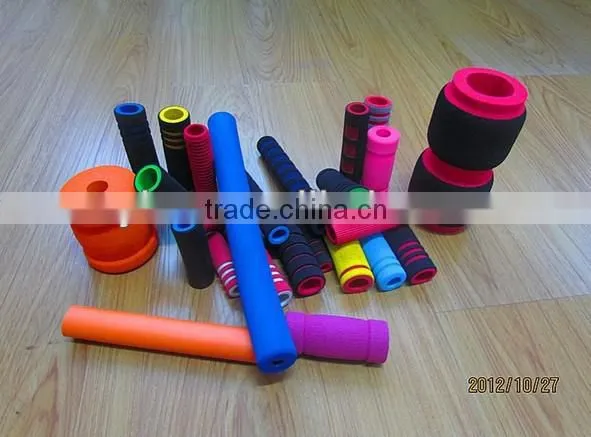

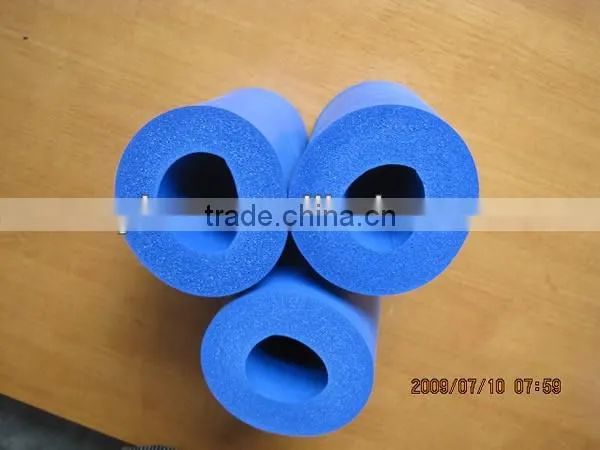

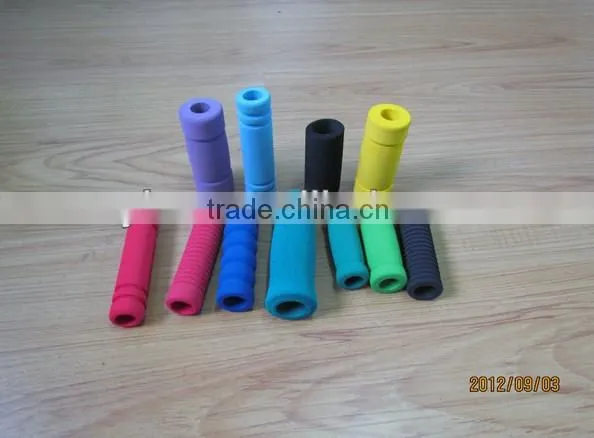

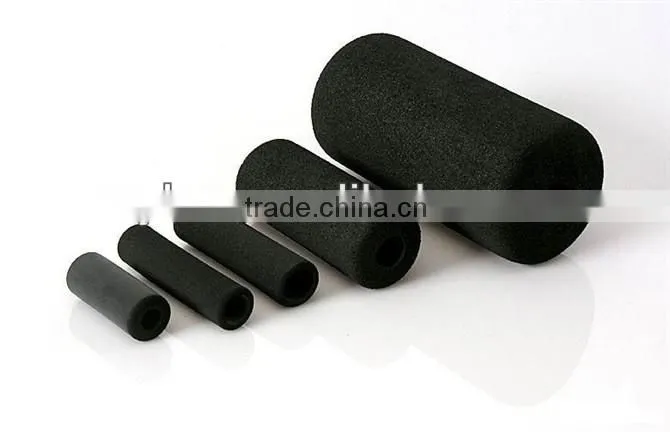

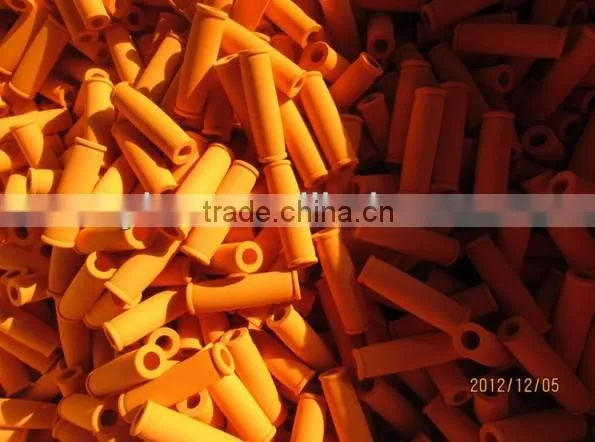

Vertical stripes eva foam tube/eva foam grip/eva foam handle
Vertical stripes eva foam tube/eva foam grip/eva foam handle
When PVC and Nitrile are combined by polymerisation, they product is a soft, closed cell sponge rubber which needs a low deflection force to create a seal.
Properties
- Excellent resistance to acid, fuel & oil,
- Density: 60 – 130 Kg/m³
- Soft
- Poor compression set
- Ozone resistant
- Temperature range from +85°C to - 50°C.
- Fire Retardant to BS476 pt. 6 & 7 Class O.
Typical Uses:
- Oil Seals,
- Cushioning,
- Vibration Dampening
- Shock Absorption
- Pipe Lagging
- Thermal Insulation
- Construction Applications
- Medical Applications
The foams can be supplied with or without a self adhesive backing and can be cut into coils for sealing tapes.

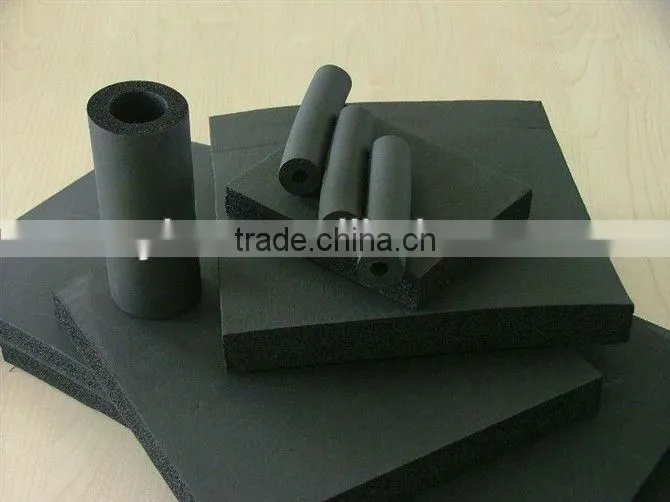

Super-Soft PVC/Nitrile Sponge Rubber
A new semi-closed cell version has been developed as an alternative to Nitto and Armacell grades. The product is a standard PVC/Nitrile sponge rubber and the cells have been crushed to open some of them up to create a soft low compression seal product.
Properties:
- Density is approx. 90 Kg/m³
- Excellent Air & UV resistance
- Poor oil resistance
- Good Acid resistance
- Ultra soft with little compression required to deform it.
Typical Uses:
- Sealing of Air Conditioning Ducts
- Areas for superior water tightness
- Instrument panel mounting
- Windscreen mounting
- Mirror mounting
- Centre Pillar Mounts
- Seals where uneven surfaces are present
Material: |
Closed cell NBR Sponge tube |
Description: |
Closed cell NBR Sponge is a Neoprene/EPDM/NBR blend. Applications for this material include Gaskets, Weatherstripping, and Cushioning. |
Technical Specifications | ||||
Physical Property |
U/M |
Test Method |
Value |
Notes |
|
|
ASTM D1056-78 |
RE-41 |
|
|
|
Mil R 6130C |
II-A |
|
|
|
Mil C 3133B Std 670 B |
SCE3F2 |
|
|
|
UL 157/ UL 50/ UL 508 |
Listed |
|
|
|
ASTM D 1056-67 |
SCE41 |
|
Compression Force Deflection |
PSI |
|
3.5 |
+/- 1.5 |
Density |
PCF |
ASTM D 3575 |
6 |
+/- 2 |
Durometer |
|
Shore 00 |
37 |
+/- 7 |
Elongation |
% |
ASTM D 412 |
150 |
|
Flammability |
|
UL-94 HF-1 |
Listed |
|
Maximum Temperature |
F |
|
200 |
|
Minimum Temperature |
F |
|
-40 |
|
Shrinkage |
% |
|
5 |
7 days @ 158F |
Tensile Strength |
PSI |
|
75 |
|
Thermal Conductivity |
|
|
.30 |
K |
Water Absorption |
% |
|
5 |
|
