Specifications
perfume factory equipment1.France freezing unit
2.CE,GMP,ISO9001
3.PP microporous filtration film
4.SUS316L

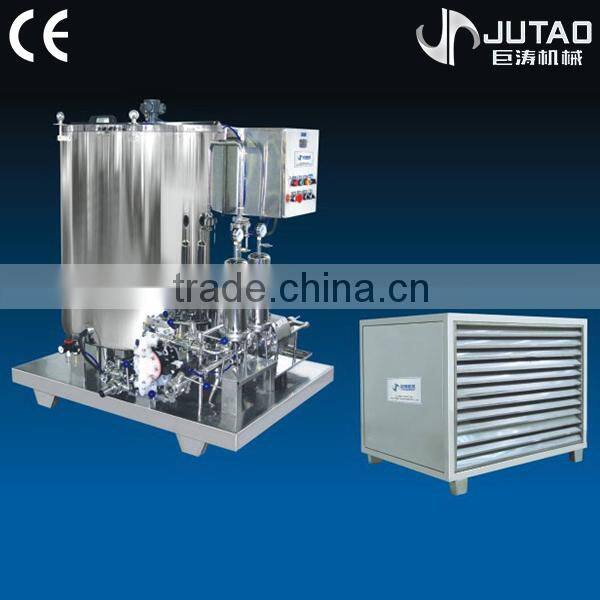

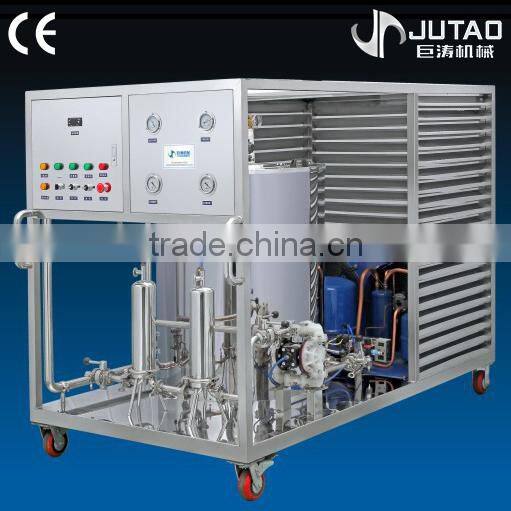

Freezing filter perfume factory equipment
Description
This unit is made of quality stainless steel 304 or 316L. It is equipped with US Sandpiper pneumatic membrane pump which is used for positive pressure filtration; Moneurop Freezer, and Danfoss Valve.
Components: air-type refrigerator, pneumatic membrane pump, 1-piece frame, 2-steps filter, pressure gauge, Thermostatic control system, insolated storage tank, hygienic pipes, valves and fittings, foot wheel.
The connecting pipes and fittings are hygienic grade mirror polished; quick assemble clamp connection; very easy for assembling and cleaning.
The lowest frozen temperature can reach -15°C.
The max working pressure: 0.4Mpa – 0.5Mpa
Structure: half-open lid, slope bottom, double layers with stainless steel screw pipe between for freezing water.
standard allocation
Stainless steel heat preservation freezing
Tank and titanium metal coil pipe;
Freezing unit (place of origin France);
Anticorrosive pneumatic diaphragm pump (place of origin USA);
Polypropylene microporous filtration film;
Stainless steel moveable supporter;
Sealing type electric control system and sanitary pipe fittings and valves.
Perfume Tchnological Flow Chart
Technical parameter
Model |
JT 3P-200 |
JT 3P-300 |
JT 5P-300 |
JT 5P-500 |
JT 10P-500 |
JT 10P-1000 |
JT 15P-1000 |
Freezing power |
3P |
3P |
5P |
5P |
10P |
10P |
15P |
Freezing capacity |
200L |
300L |
300L |
500L |
500L |
1000L |
1000L |
Filtration precision |
0.2μm
|
0.2μm
|
0.2μm
|
0.2μm
|
0.2μm
|
0.2μm
|
0.2μm |
Material sources of parts
Notes: JUTAO Machinery is a professional manufacture of chenemcial machinery and equipment ,accumulating more than 10 years of manufacturing experience since its establishment in 1997. we have been certified to the ISO9001:2000 international quality managment-system.
Notes: We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
1.Q:Are you a manufacturer or a trading company?
A:We are the manufacturer with over 10 years experience.
2.Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
3.Q:How to order?
A:You can send me an inquiry,then we could comfirm the details through emails or telephone.
4. Why your machine similar with other supplier?
We are manufacturer and had been in this industry for more than 10 years. We design machines by ourselves with advanced technology and import high quality material. Appearance just a part of machine, Service and quality is more important than it.
5. What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line
1. Cream, paste Production line
2. Liquid production line
3. Perfume production line
4. Lipstick production line
5. Aerosol production line
6. Foundation production line
7. Toothpaste production line
8. Toilet soap production line
