Custom HD long range HDMI support 3D transmitter receiver

Descriptions:

The PW-THF106H Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

• Transmits HDMI video signals up to 2km-10km over one fiber optic cable;
• Support video resolution up to 1920*1200@60Hz, 3D signal;
• Support copy EDID, can match many kind display device;
• Compliance with HMDI 1.3 and HDCP 1.2 standard;
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment system, make the image smooth, clear and stable;
• Built-in ESD protection system;
• Simple to install, plug and play.

Pictures:

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Panel Descriptions:

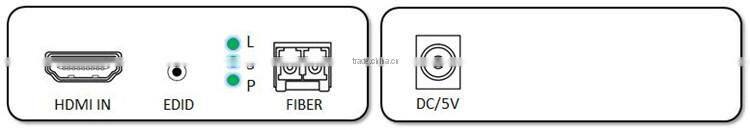

Transmitter:

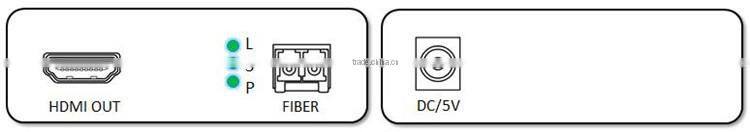

Receiver:

Installation:

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3.Connect the HDMI output port of receiver to the display device with HDMI cable,
4.Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

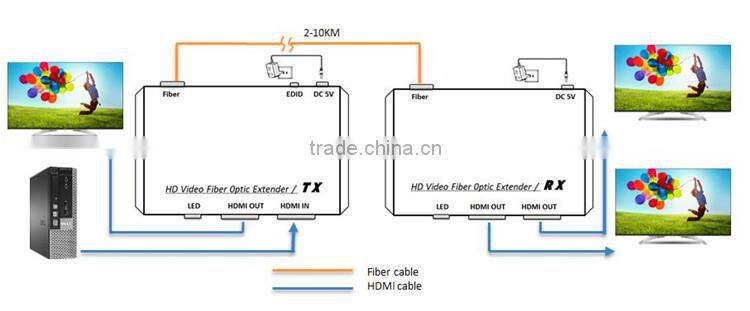

ApplicationDiagram:

____________ Factory ____________
