Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Audio & Video Cable > Pway SD to SDI HD to SDI 3G to SDI Repeater

Pway SD to SDI HD to SDI 3G to SDI Repeater

Name: Pway SD to SDI HD to SDI 3G to SDI Repeater
Brand: Pway
SKU: 135022057
Availability: InStock

Shenzhen City Pin Wei Technology Limited

Pway SD to SDI HD to SDI 3G to SDI Repeater thumbnail-1

Pway SD to SDI HD to SDI 3G to SDI Repeater photo-1

US$ 123 - 133 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Pway

Model Number:

SS5104G

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Pway

Model Number SS5104G

Place of Origin Guangdong, China

Specifications

1. SDI Standard:3G-SDI, HD-SDI, SD-SDI
2. Data Rates: 270Mbps/1.485 Gbps/2.97Gbps

Introduction

PW-SS5104G SD/HD-SDI/3G-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function. It receive one SDI input and perfectly duplicates it. Then it re-transmits two SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI video source to two 3G-SDI or HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs.

Features

SDI Standard:3G-SDI, HD-SDI, SD-SDI
Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M
Two separately buffered outputs
Cable equalization (Beldon 1694A) retiming and signal
Re-clocking function capability – unlimited repeater connection
Dual color LED indication of nput locik and rate
Pass all ancillary data
5V~24V DC

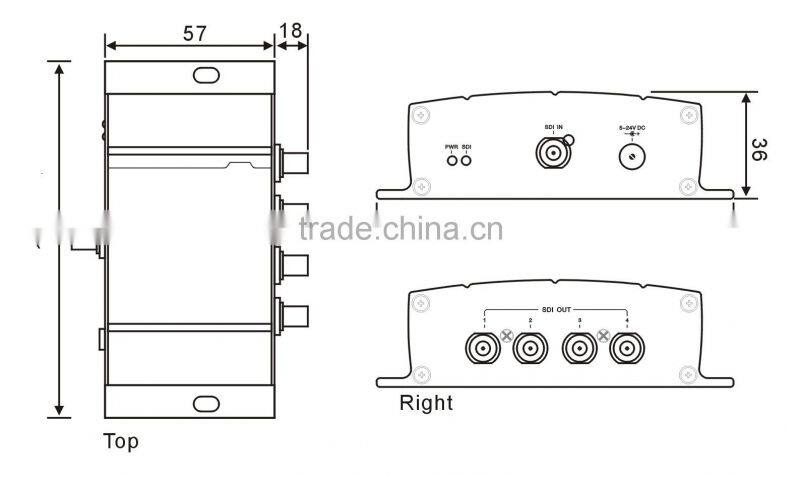

Dimensions

Specifications

Model	PW-SS5104G
Re-clocking Function	Yes
SDI Standards	3G-SDI, SD-SDI, HD-SDI
HD/SD-SDI Detection	Auto
Data Rates	270 / 1483 / 1485 /2970Mbps
V ideo Support	SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz 3G:1080p @ 50Hz / 59.94Hz / 60Hz
SDI Signal Type	SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance	75 ohms
Max. Distance	Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft
Audio Support	Yes
Input	1x BNC [SDI]
Output	2x BNC [SDI]
BNC Connector	75 ohms inter-locked socket
Power Consumption	2~4 Watts
Relative Humidity	20~90% RH (no condensation)
Dimension	9212036
Weight	160g
