Product Details
Place of Origin: | Guangdong, China | Brand Name: | Pway | Model Number: | PW-THF109DKM |
Product Description

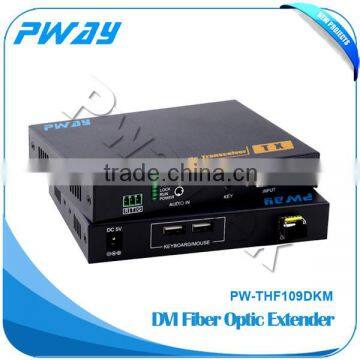

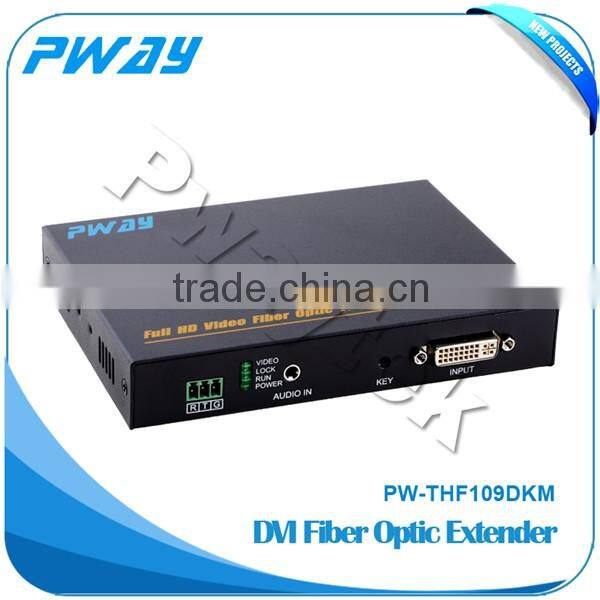

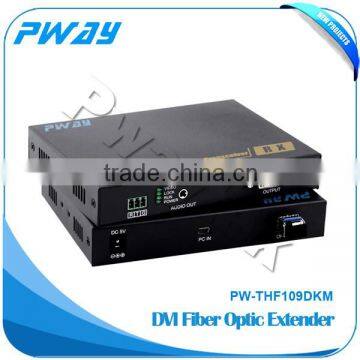

2016 hot sales products support keyboard and mouse 1080P usb transmitter receiver
Description
The DVI KVM Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
- Transmits DVI video signals up to 10km over one fiber optic cable;
- Support video resolution up to 1920*1080@60Hz;
- Support keyboard and mouse signal transmission;
- Support external stereo audio unidirectional transmission;
- Support RS232 signal unidirectional transmission, baud rate self-adaptive;
- Compliance with DVI 1.0 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | DVI 1.0; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz | |
Connector | DVI-D | |
Impedance | 100Ω | |
Audio | Interface | 3.5mm earphone seat |
Signal type | Stereo | |
K/M | Interface | To PC: MINI-USB To keyboard and mouse: USB-A |
RS232 | Interface | Industrial terminal |
Signal direction | Unidirectional | |
Baud rate | Self-adaptive, Max:115200bps | |
Data bits | 8 | |
Optical fiber | Interface | LC connector |
Fiber type | Single-mode single fiber | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 2.97Gbps | |
Transmission distance | standard 10km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 136*130*30mm | |
The warranty | 1 year free warranty |

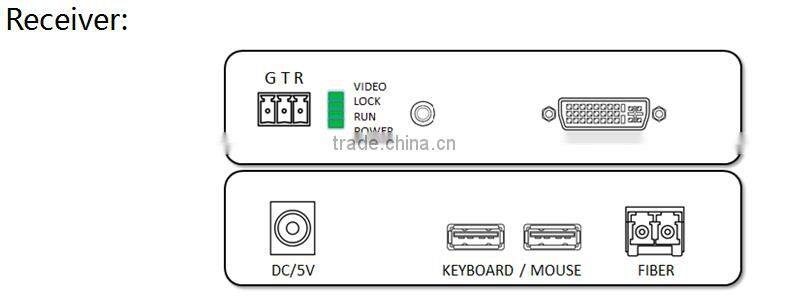

Panel
Port name | Description |
DVI IN/OUT | DVI signal input/output |
Audio IN/OUT | Stereo audio signal input/output |
RS232 | Serial port( G: Ground, T: transmit, R: receive ) |
DC/5V | Power adapter socket |
FIBER | SFP module---LC connector |
K/M TO PC | Mini-USB connect to PC |
KEYBOARD/MOUSE | USB connect to keyboard and mouse |
LED indicator | Description |
VIDEO | Video signal connection indicator |
LOCK | Video signal lock indicator |
RUN | System status indicator |
POWER | System power indicator |

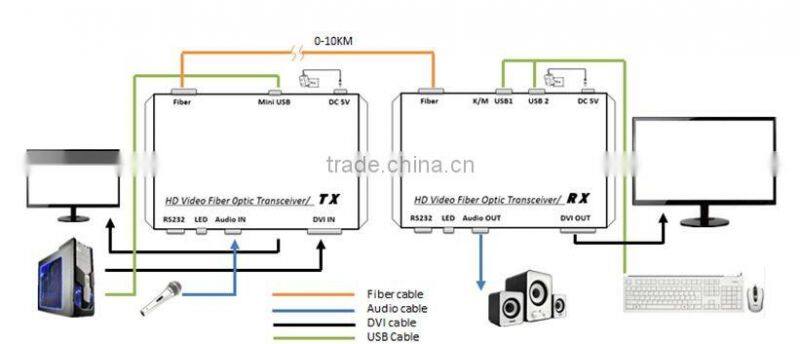

Diagram
