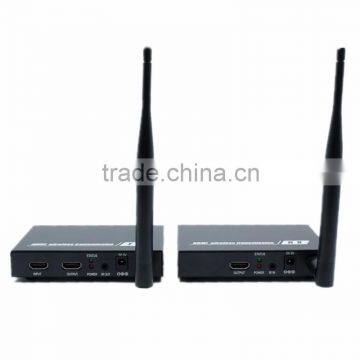

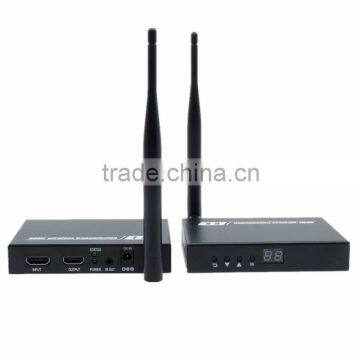

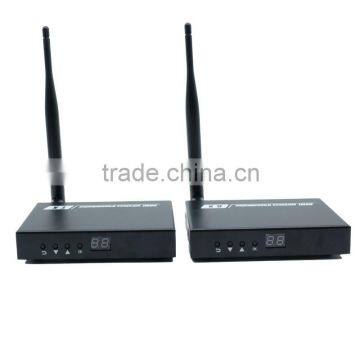

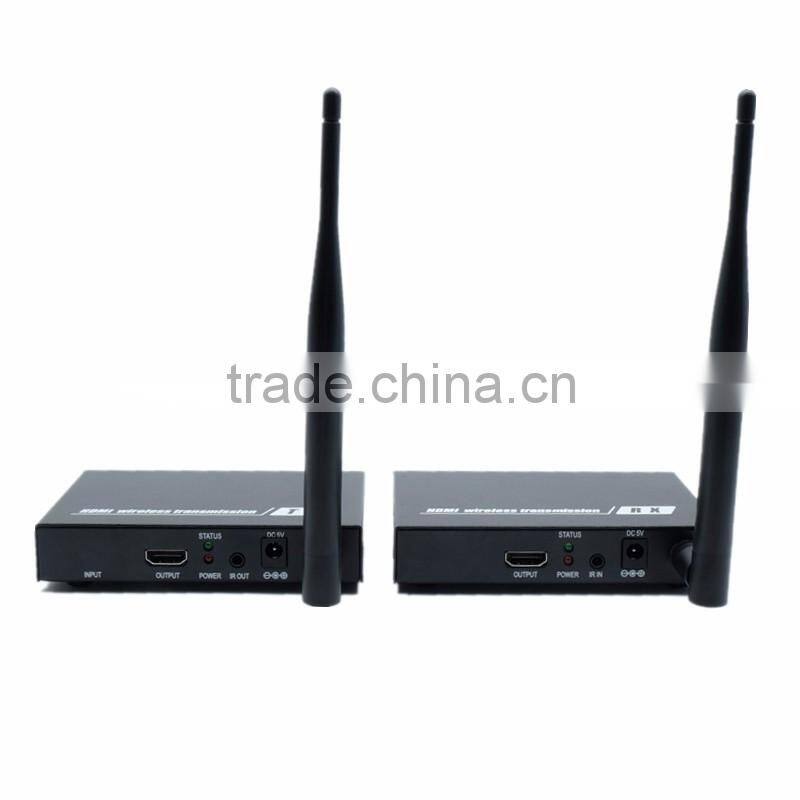

Wireless Video Audio Transmission Wireless HDMI Transmitter Receiver 1080P Wireless HDMI Extender With Loop Out up to 50m/164ft

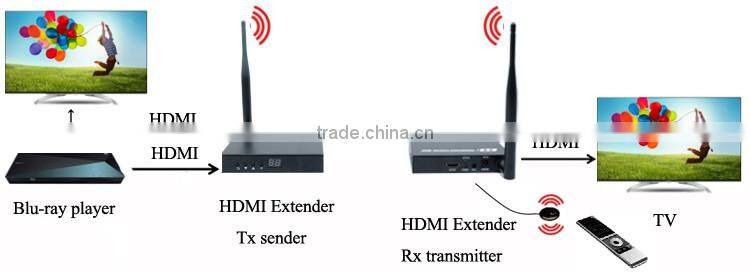

This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 2.4GHz/5GHz band, with very low latency.

It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.

This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.

Features

• Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.
• Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz.
• Support IR remote control function to control source device content from long distance.
• Transmitter have one local loop out.
• Low latency <200ms.
• Effective Range: 50m ( Line of sight ).
• No cable between sender (TX) and receiver (RX).
• Easy and clean installation.
• Plug & Play – full hardware design, no software is required.
• Transmission distance will be different due to the environment.
• Wall, brick or glass will shorten the signal cover range or cause big signal loss

  Specifications





  Parameter		Description
  Video	Standard Protocol	HDMI 1.3; HDCP 1.2
  	Maximum pixel clock	165MHz
  	Maximum data rate	6.75Gbps
  	Resolution	480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
  	Connector	HDMI-A
  	Impedance	100Ω
  	Compress Formats	H.264
  IR	Interface	3.5mm earphone seat
  	Signal direction	unidirectional
  	IR frequency	38kHz
  WIFI	Frequency	2.4GHz/5GHz
  	Transmission distance	50m
  	Wireless Standard	802.11AC
  Other	Power supply	The power adapter: DC 5V/2A
  	Power dissipation	MAX 6W
  	Temperature	Operating: -5℃ ~ +70℃
  	Humidity	Operating: 5% ~ 90%
  	Dimension
  	The warranty	1 year free warranty



  Port name	Description
  HDMI IN/OUT	HDMI signal input/output
  IR IN/OUT	IR signal input/output
  DC IN	Power adapter socket
  Channel	Display Channel

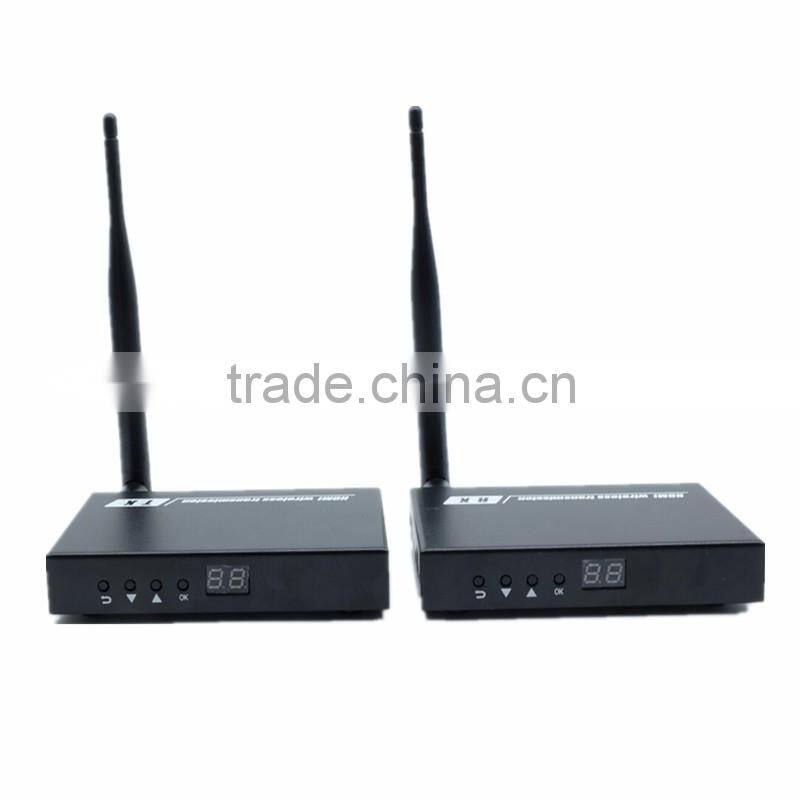

  Back Down UP OK Key	Adjust 2.4G/5GHz channel.
  LED indicator	Description
  STATUS	Video signal connection indicator
  POWER	System power indicator
