50M Hdmi Extender Cat5e x1 Transmitter up to 1080P With EDID Function

50M Hdmi Extender Cat5e x1 Transmitter up to 1080P With EDID Function photo-1
50M Hdmi Extender Cat5e x1 Transmitter up to 1080P With EDID Function photo-2
50M Hdmi Extender Cat5e x1 Transmitter up to 1080P With EDID Function photo-3

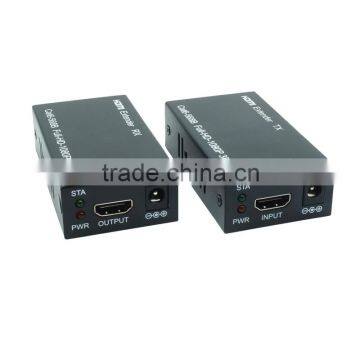

50M Hdmi Extender Cat5e x1 Transmitter up to 1080P With EDID Function photo-4
50M Hdmi Extender Cat5e x1 Transmitter up to 1080P With EDID Function photo-5
50M Hdmi Extender Cat5e x1 Transmitter up to 1080P With EDID Function photo-6
US$ 1 - 28 MOQ: 1 Pair
Key Specifications
Get Latest Price
Brand Name:
Pway
Model Number:
PW-HT101
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Pway
Model Number PW-HT101
Place of Origin Guangdong, China
Product Description



50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function



50M hdmi extender cat5e x1 transmitter  up to 1080P with EDID function



Product Introductions

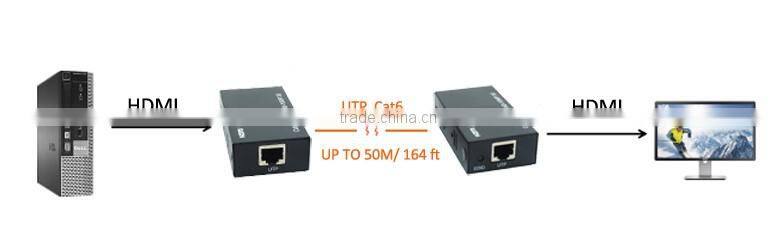

The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function

Feature

  • Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
  • Support video resolution up to 1920*1080P@60Hz, 3D signal;
  • Support copy EDID, can match many kinds of display device;
  • Compliance with HDMI 1.3 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;





Specification



Parameter

Description

Video



Standards

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

1920X1080@60Hz, 3D

Connector

HDMI-A

Impedance

100Ω

HDMI Cable Range

<5M (Reosution up 1080P)

Ethernet

Interface

RJ45

Transmission distance

CAT6---60m

Other

Power supply

The power adapter: DC 5V/1A

Power dissipation

MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

72*69*25mm

The warranty

1 year free warranty



Pictures

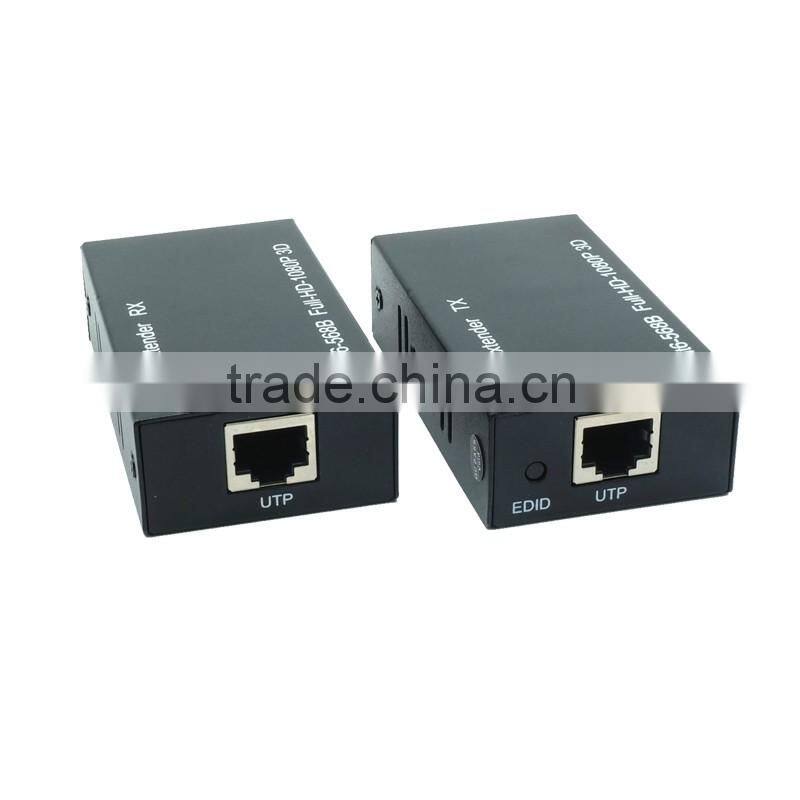

50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function

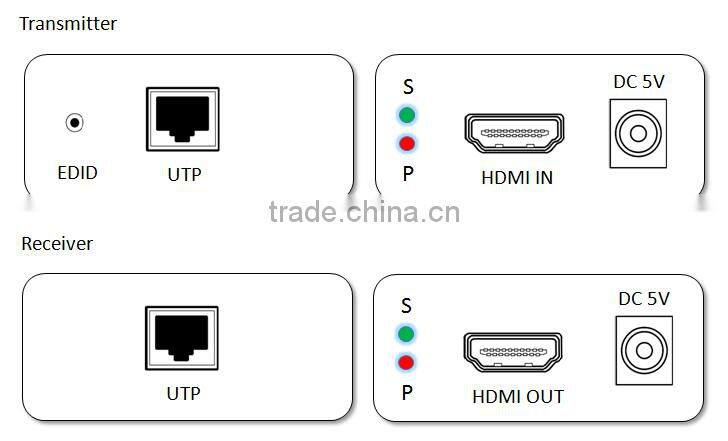

Panel

50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function

Port name

Description

HDMI IN/OUT

HDMI signal input/output

UTP

UTP Cat6 Port

DC/5V

Power adapter socket

EDID

EDID button, press 3 second to copy EDID of display device

LED indicator

Description

S

System status indicator

P

System power indicator

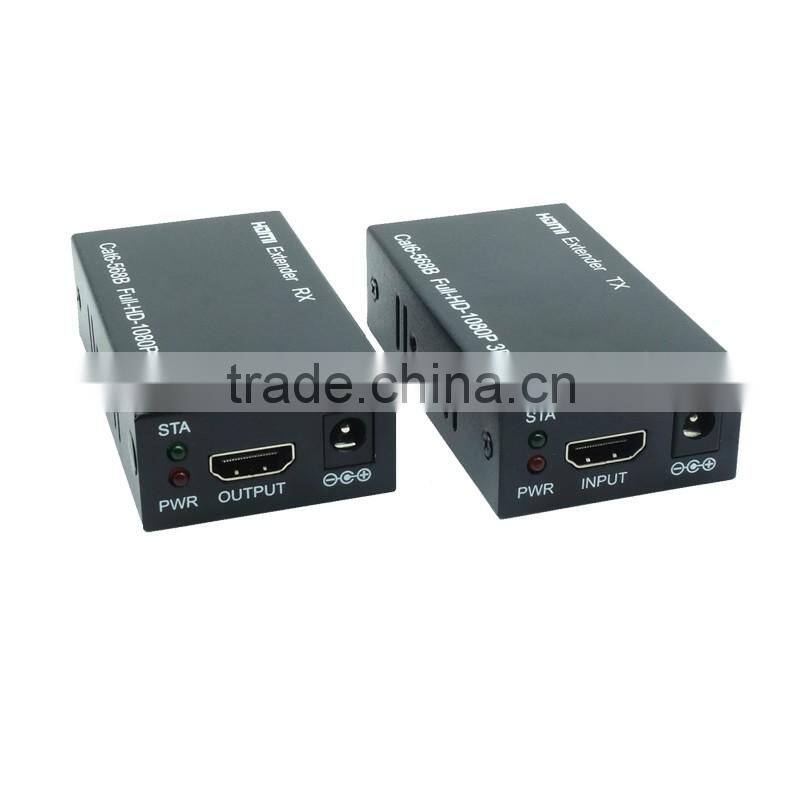

 50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function

Packaging & Shipping

50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function 50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function

FAQ

Where is your factory ? Can I have a visit ?

Add: 5/FL, Block 3, Heng Chang Rong XingHui Technology Park, West Hua Ning Road, Da Lang Community,Longhua District, Shenzhen  in CHINA.

Can I buy samples from your company?

We can provide samples .Contact me to talk about the details please.

How about the payment terms?

We accept T/T, western union......

What is the after-sales service?

One year warranty and professional engineers to solve your matter .If customer find quality problems within 15 days after received merchandise, please inform us, we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products itself. Then we will make solution with relevant department and feedback to customer on time.

Are you manufacturer or trading company?

We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,converter series products.

If you are not clear about how to use the products?

Each of your products with a manual, you can read it or you may consult us.

How long could I get reply of my inquiry?

You will get a reply within 24 hours.

How does your factory do regarding quality control?

Quality is a priority .  Pwaytek people always attached great importance to quality controlling  from start to finish.50M hdmi extender cat5e x1 transmitter up to 1080P with EDID function
