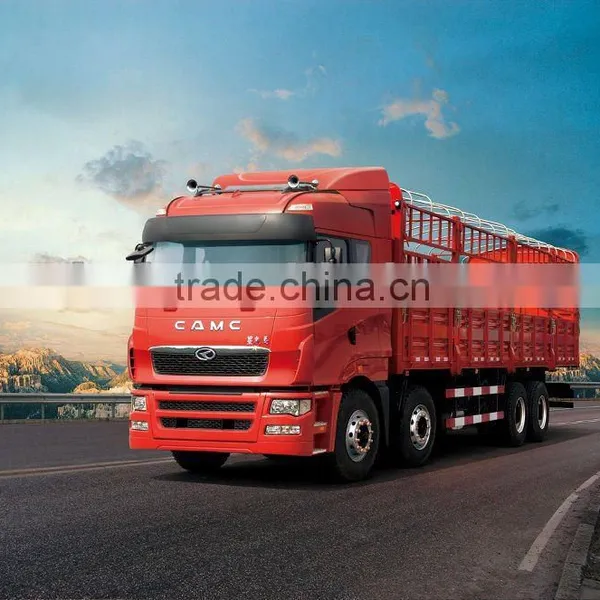

CAMC Cargo Truck

Name: CAMC Cargo Truck
Brand: CAMC
SKU: 134996301

US$ 25,000 - 35,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Capacity (Load):

31 - 40t

Drive Wheel:

6x4

Shandong Mengling Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin/Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 31 - 40t

Drive Wheel 6x4

Horsepower 251 - 350hp

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Gross Vehicle Weight 8700

Place of Origin Shandong, China

Brand Name CAMC

Our company supply many kinds of CAMC trcuks, with godd quality and competitive prcie.

If you are interested in our products, pls have no hesitate to contact with me,

Best regards

stone

CAMC 8x4 Standard Model Tipper (HN3310P38C3M)
Product Name		Dump Truck
Product Model		HN3310P38C3M
Place of Origin		Maanshan, Anhui, China
Kerb mass		15955kg
Rated Payload		14850kg
Drive Type		Left-Hand(optional RHD)
Drive Model		8x4
Vehicle Body Color		White(optional)
Engine	Brand	CUMMINS
	Model	L375 20
	Max. Power (kw/r/min)	273/2200
	Displacement	8900ml
	Emission Standard	Euro II
Clutch	Model	Φ430 diaphragm spring
Transmission	Brand	FAST GEAR
	Model	9JS165T
	Type	twin countershaft; all synchronizer
Rear Axle(drive axle)-Load		13000kg x 2
Front Axle-Load		7500kg x 2
Cabin type		European style flat roof(Optional CF)
Cabin		With A/C, Radio, Bunk
Steering System		HITACHI
Wheelbase (mm)		1850+3370+1350
Wheel/Tire	Type	Bias/Radial tube/Radial tubeless
	Model(optional)	11.00-20/11.00R20/11R22.5

		12.00-20/12.00R20/12R22.5
	Tire number	12+1
Oil Tank	Volume(L)	320
Dimensions	Overall (mm)	9880x2495x3360

(L×W×H)	Body interior (mm)	7000x2300x1500
Body Steel Thickness		Bottom 8mm/Side 5mm
Body Lifting System		Hydraulic Frontal Lift
Front overhang/Rear overhang(mm)		1370/1000
Approach/Departure Angle(°)		24/23
No. of steel spring(front/rear)		2009-9-12
Max. Speed (km/h)		75
