Help CenterUps Inverter 500va
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CAP ups inverter 500va
Model Number:
ups inverter 500va
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
CAP ups inverter 500va
Model Number
ups inverter 500va
Phase
Single Phase
Protection
Other, overcurrent overvoltage short circuit unbalanced loads
Weight
5.8kg
Output Voltage
220V
Type
Other, Line Interactive, ups inverter 500va
Application
Networking

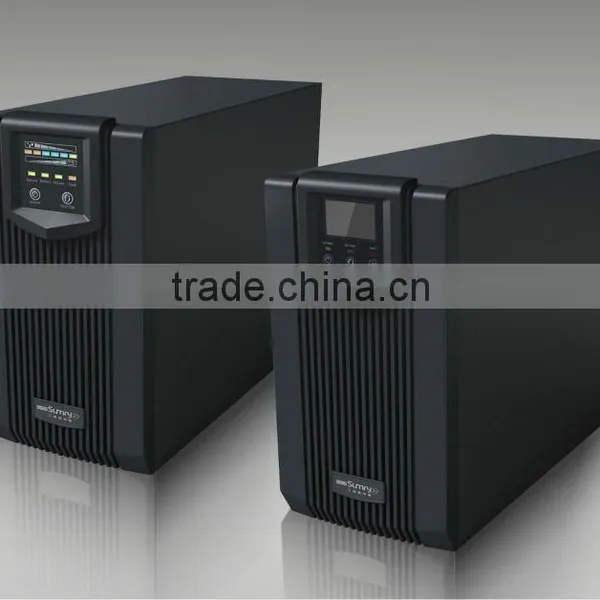

Ups Inverter 500VA
Specifications:
1. 500kva600va1000kva1200kva offline ups
2. AVR CPU in offline ups
3. input & output :110/220VAC
4. QTY of relays is 4
5. with transformer
Main Features:
a. AVR function in offline ups
b. High reliability with CPU control in offline ups
c. Advanced PWM technology for inverter output.
d. Advanced battery management system with automatic re-charging function.
e. Special surge suppression output sockets.
f. Perfect automatic protection against extremely high and low voltage, overload, over-current, short circuit, or low battery.
Technical specifications
| Model | 500VA/600VA | 1000VA/1200VA | |
| Max capacity(VA) | 500VA(300W) | 1000VA(600W) | |
| Rated capacity | 600VA(360W) | 1200VA(720W) | |
| Input | Commerical power range | 145VAC-280VAC | |
| AVR range | 165VAC-270VAC | ||
| Frequency | 50Hz±10% | ||
| Output | Commerical power | Sine-wave | |
| Inversion | Simulated sine-wave | ||
| Frequency | Commercial power supply:shared frequency with the commercial inversion state:50Hz±0.5 | ||
| AVR voltage range | 220VAC±10%(Auto-sensing) | ||
| Transfer time | Typical:5ms(Including detection time) | ||
| Protection | Overload | UPS automatically shutdown if overload exceeds 150% of normal value for 30 seconds and 180% for 3 seconds | |
| TEL/FAX/MODEM | No | ||
| Short circuit | UPS Output is cut off immediately or input circuit breaker protection | ||
| Alarm | Battery back-up | Beeping sound every 4 seconds when the input is cut off | |
| Battery low voltage | Beeping sound every 1 seconds when the input is cut off | ||
| Overload | Continuously beeping sound when overload | ||
| Battery | Type | Sealed,maintenance-free lead acid | |
| Capacity | (12V,7AH)X1 | (12V,7AH)X2 | |
| Recharge time | 8 Hours to 90% of full capacity | ||
| Back-up time | Typical 20 min(Halfload) | ||
| Battery protection | Automatic self-test,discharge protection | ||
| Communication interface | RS232(port)(B) | Bi-directional communication port(Compatible with Bpro500A/600A Bpro-1000/1200a) | |
| Appearance | Net weight | 5.8kg | 12kg |
| Gross weight | 6.1kg | 12.5kg | |
| Size(mm)DxWxH | 260x97x135 | 375x130x190 | |
| Outside Packing | Weight | 19kg | 28.5kg |
| Quantity | 3 | 2 | |
| Size(mm)DxWxH | 455x366x228 | 495x460x315 | |
| Remark | Communication port: NO | ||
| Specification only for reference . Subject to change without prior notice | |||
| We accept order with special specifications | |||
