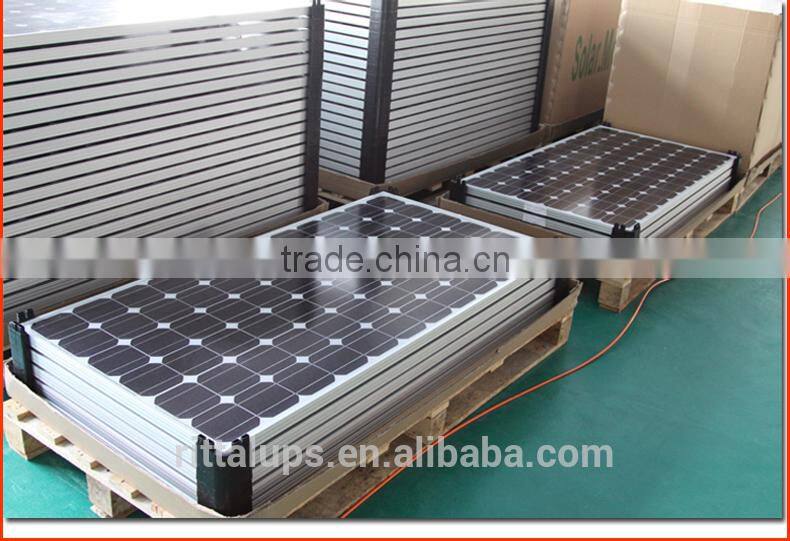

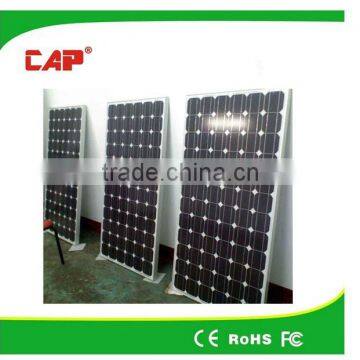

Factory wholse product more than 25 years warranty 300w mono solar panel
solar panel:
1.Optional watts solar panel
2.High sufficient feature and design
3.Monocrystalline material

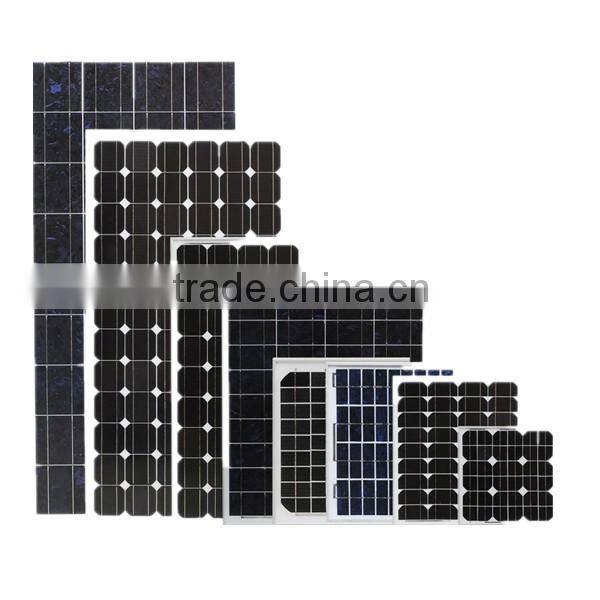

4.Various size;Chip quantity 72
5.CE,Rosh,ISO
Characteristics :
l High and stable conversion effeciency based on over 4 years professional experience
l High reliability with guaranteed +/-10% output power tolerance
l Proven materials, tempered front glass, and a sturdy anodized aluminum frame allow modules to operate reliably in multiple mountily configurations
l Combination of high effeciency and attractive appearance
Quality and Safety :
l 25 year 80%,10 year 90% power warranty 3 year power warranty;
l ISO9001:2000 (Quality Management system) certified factory;
l Product Quality warranty & products Liability Insurance to guarantee and user' benefits;
l Certifications CE.
Specifications
solar panel
1.High sufficient feature sun light power pv cells from China manufacturer accept OEM
2.Monocrystalline material
3.Various size;Chip quantity 72
4.Long lifespan 30 years life time
Temperature Coefficients :
NOCT | 45+/-2°C |
Voltage temperature coefficient(Voc) | -0.36%/°C |
Current temperature coefficient(Isc) | +0.033%/°C |
Power temperature coefficient(Pmpp) | -0.44%/°C |
Minimum power tolerance | +/-10% |
(NOCT:Nominal Operating cell Temperature)
Mechanical Data:

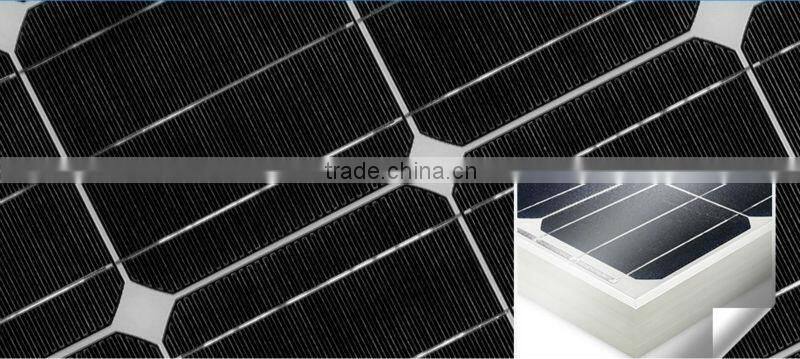

Solar Cells | Mono-crystalline 125*125mm |
Front Glass | 3.2mm tempered |
Junction Box | IP 65 rated |
Output Cables | 900mm length cable/compliable with MC 3 or MC4 connectors |
Frame | Anodized aluminium |
Technical specifications:
Model | HL-80W | HL-85W | HL-100W | HL-110W | HL-120W | |||||||||
Nominal peak power(Wp) | 80W | 85W | 100W | 110W | 120W | |||||||||
Nominal voltage(Vmp) | 17.2V | 17.2V | 17.2V | 17.2V | 17.2V | |||||||||
Nominal current(Imp) | 4.65A | 4.94A | 5.81A | 6.40A | 6.98A | |||||||||
Open circuit voltage(Voc) | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | |||||||||
Short circuit current(Isc) | 5.14A | 5.47A | 6.61A | 6.98A | 7.50A | |||||||||
Module efficiency | 12.5% | 13.3% | 10.2% | 11.2% | 12.2% | |||||||||
Weight | 8kg | 8kg | 12kg | 12 kg | 12kg | |||||||||
Dimensions(mm) | 1196*534*35 | 1483*665*35 | ||||||||||||
Model | HL-130W | HL-170W | HL-175W | HL-180W | HL-185W | |||||||||
Nominal peak power(Wp) | 130W | 170W | 175W | 180W | 185W | |||||||||
Nominal voltage(Vmp) | 17.2V | 35.9V | 36.0V | 36.0V | 36.2V | |||||||||
Nominal current(Imp) | 7.56A | 4.74A | <, SPAN style="FONT-SIZE: 10pt">4.86A | 5.00A | 5.11A | |||||||||
Open circuit voltage(Voc) | 21.6V | 44.5V | 44.8V | 45.0V | 45.2V | |||||||||
Short circuit current(Isc) | 8.02A | 5.12A | 5.17A | 5.20A | 5.32A | |||||||||
Module efficiency | 13.2% | 13.6% | 14.0% | 14.4% | 14.5% | |||||||||
Weight | 12kg | 15kg | 15kg | 15kg | 15kg | |||||||||
Dimensions(mm) | 1483*665*35 | 1580*808*35 | ||||||||||||
Model | HL-190W | HL-200W | HL-210W | HL-220W | HL-230W | |||||||||
Nominal peak power(Wp) | 190W | 200W | 210W | 220W | 230W | |||||||||
Nominal voltage(Vmp) | 36.2V | 26.6V | 27.0V | 29.5V | 29.9V | |||||||||
Nominal current(Imp) | 5.25A | 7.52A | 7.78A | 7.46A | 7.69A | |||||||||
Open circuit voltage(Voc) | 45.4V | 33.2V | 33.2V | 36.8V | 37.2V | |||||||||
Short circuit current(Isc) | 5.44A | 8.36A | 8.44A | 8.06A | 8.24A | |||||||||
Module efficiency | 14.9% | 13.3% | 14.1% | 13.4% | 14.0% | |||||||||
Weight | 15kg | 18kg | 18kg | 20kg | 20kg | |||||||||
Dimensions(mm) | 1580*808*35 | 1496*1000*50 | 1652*1000*50 | |||||||||||
| Model | HL-250W | HL-260W | HL- 270W | HL- 280W | HL-300W | |||||||||
| Nominal peak power(Wp) | 250W | 260W | 270W | 280W | 300W | |||||||||
| Nominal voltage(Vmp) | 36.0V | 36.0V | 35.6V | 36.1V | 36.13V | |||||||||
| Nominal current(Imp) | 6.9A | 7.2A | 7.5A | 7.77A | 7.80 | |||||||||
| Open circuit voltage(Voc) | 36.2V | 39.15v | 39.2v | 39.3v | 39.6v | |||||||||
| Short circuit current(Isc) | 7.8A | 8.03A | 8.13A | 8.86A | 9.16A | |||||||||
| Module efficiency | 14.8% | 15.4% | 15.9% | 16.5% | 17.2% | |||||||||
| Weight | 20.5 | 25.5 | 25.5 | 25.5 | 25.5 | |||||||||
| Dimensions(mm) | 1675*1000*50 | 1920*1000*50 | 1920*1000*50 | 1920*1000*50 | 1920*1000*50 | | ||||||||
| TEM NO | SRTP-3W-300W |
| Maximum Power(W) | 300W |
| Maximum Power Voltage(Vmp) | 34.9V |
| Maximum Power Current(Imp) | 7.16A |
| Open Circuit Voltage(Voc) | 43.2V |
| Short Circuit Current(ISC) | 7.87A |
| Maximum System Voltage | 1000V |
| Power Tolerrance | ±5% |
| Maximum Series Fuse Rating | 15A |
| Temperature coefficient of ISC | –0,04%/°C |
| Temperature coefficient of VOC | –0.38 %/°C |
| Temperature coefficient of P Max | –0.47 %/°C |
| Warranty | 90% of 10 years, 80% of 25 years |
| Standard Test Comditions | AM1.5 1000W/m2 25°C+/-2°C |
| Cable | Electrical cable of 0.4mm2 (CLASS II) |
| Size of Module(mm) | 1950*995*50mm |
| Solar Cell | 156*156 Polycrstalline |
| Backing(Material) | TPT |
| Temperature Range | -40°C to +85°C |
| Frame(Material Corners,etc.) | Aluminum-Alloy |
| Number of Cell(PCS) | 72=6*12pcs |
| Weight(Kg) | 22Kg |
| Tolerance Wattage(e.g.+/-5%) | ±3% |
| Front Glass Thickness(mm) | 3.2 |
| Surface Maximum Load Capacity | 2400Pa |
| Allowable Hail Load | 23m/s, 7.53g |
| Packing | 2PCS/CTN1980×1020×120mm |
| Container loading | 234PCS |
| 468PCS | |
| 566PCS |
Usage of the solar panel:

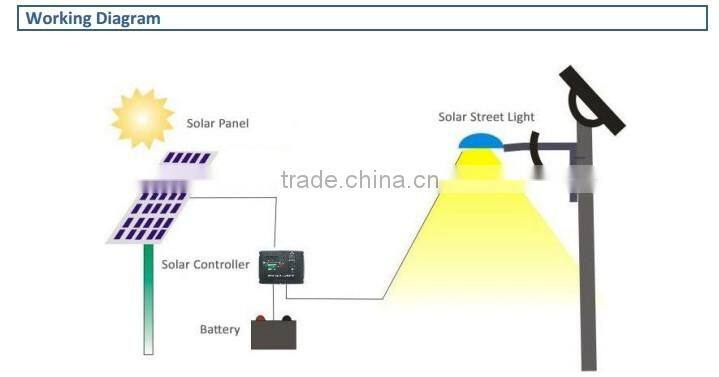

1. for streetlight, solar lamp, garden lamp use
2. For water proof, drinking water, irrigate solar water pump.

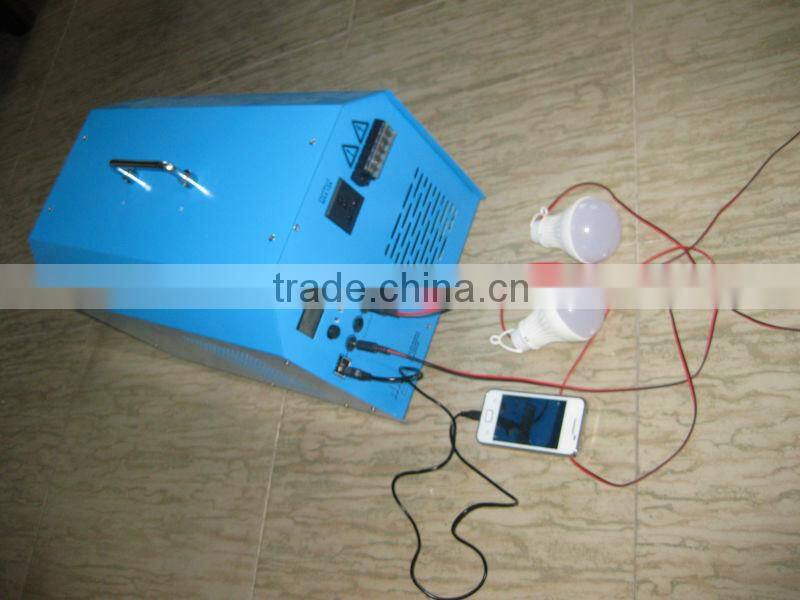

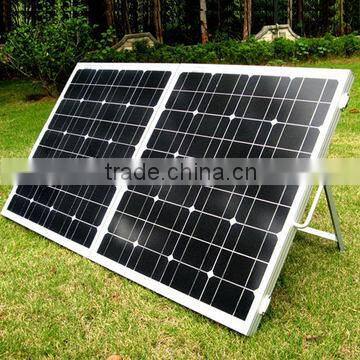

3. portable solar system for house & camping.

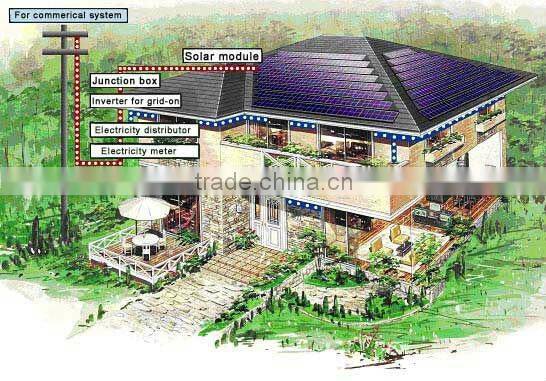

4. For house, factory or electric generation, on grid electricity use

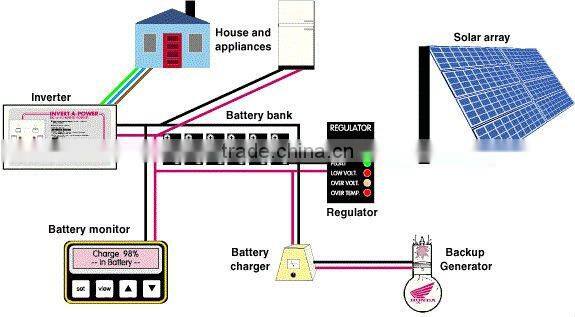

5. For house & appliances use, off grid solar system with battery bank!
Contact us:
Rittalups & CAP power produce green stable high quality inverter ,solar system, solar controller, portable solar system,
we light your life,light up the world,we grow up everyday,join us !!
Pls feel free to contact me for favorable price!!
Miss Fu
Skype: rittalups5
QQ: 2355552470
Tel: +86-13580432763 (whatsapp/Wechat)
Please Email Me!!
Send Inquiry to This Supplier
