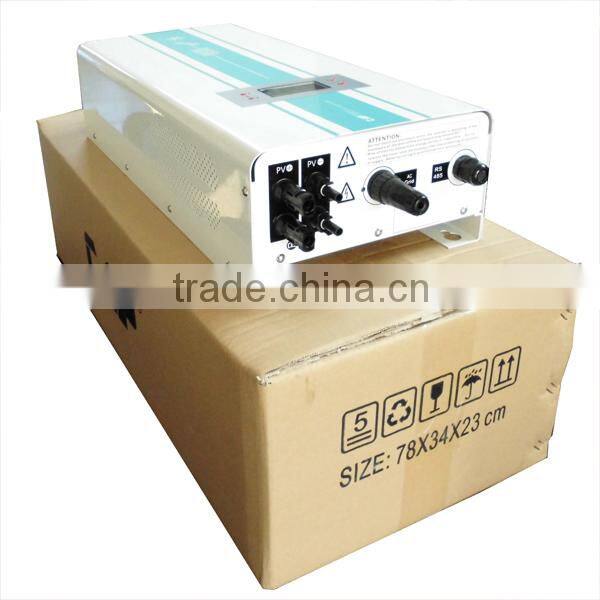

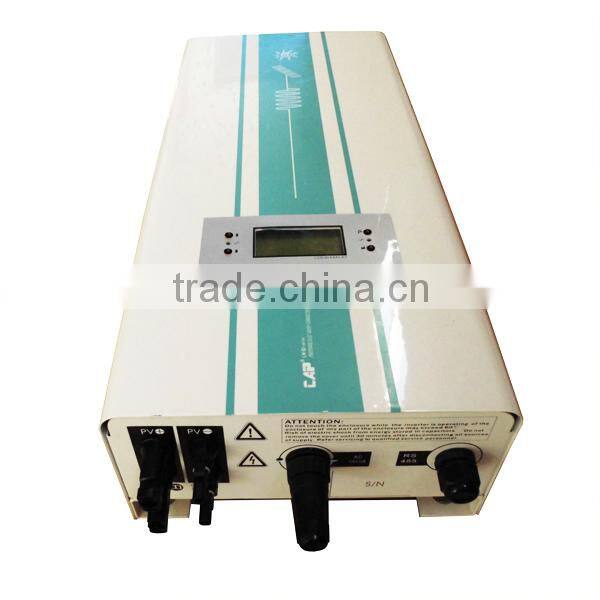

Competitive price solar grid tie inverter 4000w built in mppt solar regulator
Feature:
The Solatra inverter is a solar inverter which converts the DC power to AC power and feed it into the public grid. The operational limits of inverters must be observed. Improper use may cause lethal hazard. Inverters may only be operated with PV modules. Do not connect any sources of energy other than PV modules to the inverter.
Start way: As long as wind turbines or solar panels from the issue of an electric, it can automatically get the power to the grid, do not need to manually boot.
Also directly with a load, working like off grid inverter.
DC to AC high transfer efficiency up to 90--96%
Grid tie power generation systems is composed of photovoltaic modules (array), photovoltaic grid-connected inverter power supply, and entering device.
PV modules (array) convert solar energy to DC current, and then convert DC to AC which is the same frequency and feed-in as grid through our grid-connected inverter.
technical data
Model |
SLT |
|
|
DC Input |
MPPT Voltage Range |
DC100~450V |
Rated DC Voltage |
360V |
|
Control System |
MPPT |
|
|
AC Output |
Rated Output Power |
5000W |
Rate voltage |
AC220 |
|
Voltage range |
AC 185~264V 1 phase |
|
Normal Grid Frequency |
50/60Hz Grid frequency |
|
Phases |
1 phase 2 wire |
|
Power Factor |
more than 0.95 |
|
Current THD |
At rated power and in the sine wave less than 3. 5% |
|
Control System |
mppt |
|
Anti-islanding |
not more than0.5 sec |
|
Total Max.Current |
9A |
|
Max. Efficiency |
97% |
|
Euro Efficiency |
96.4% |
|
|
Structure |
Protection Class |
IP65 |
Cooling system |
Natural cooling |
|
Noise |
less than 50dB |
|
Data Interfaces |
External RS232C/RS485 |
|
Display |
LCD |
|
|
Packing Dimensions (W*H*D) |
680*415*325mm |
|
Net weight |
25 kgs |
|
Gross weight |
27kgs |
|
|
Protection |
Inverter |
Input over voltage, output short circuit, overheat, output DC component. |
Grid |
Anti-islanding, over/under voltage of grid, over/under frequency of grid. |
|
|
Environment |
Environment |
No corrosion gas, flammable gas, oil mist, dust etc. |
Operation temperature |
-10 deg c~40deg c |
|
Stored temperature |
-20 deg c~65 deg c |
|
Relative humidity |
0~100% Do not wet with dew |
|
