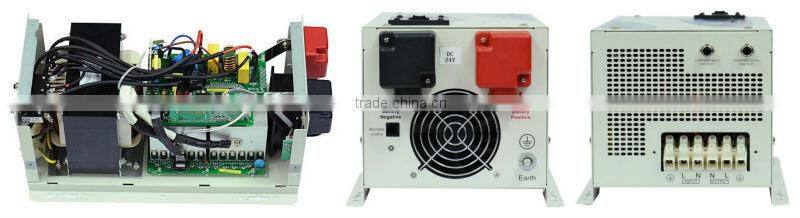

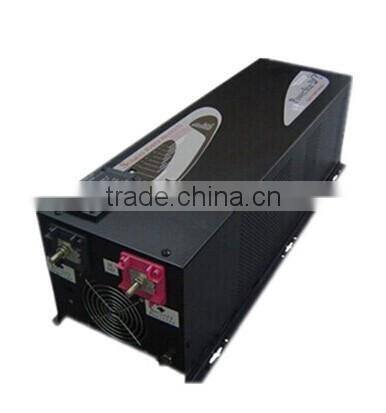

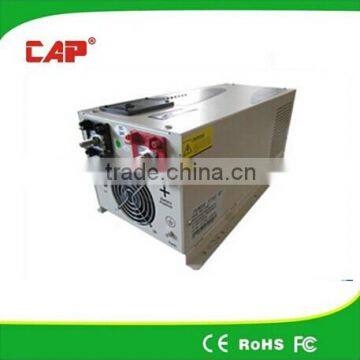

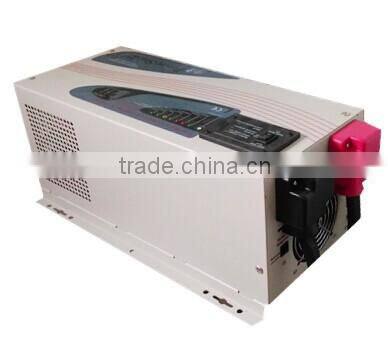

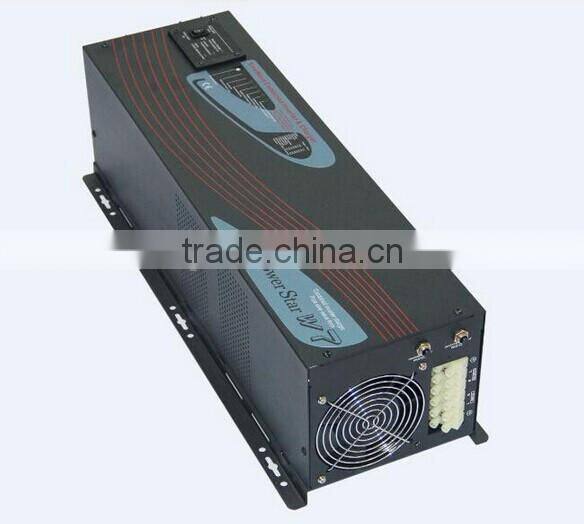

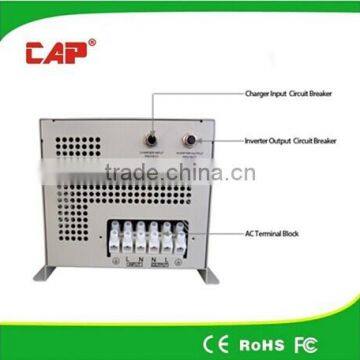

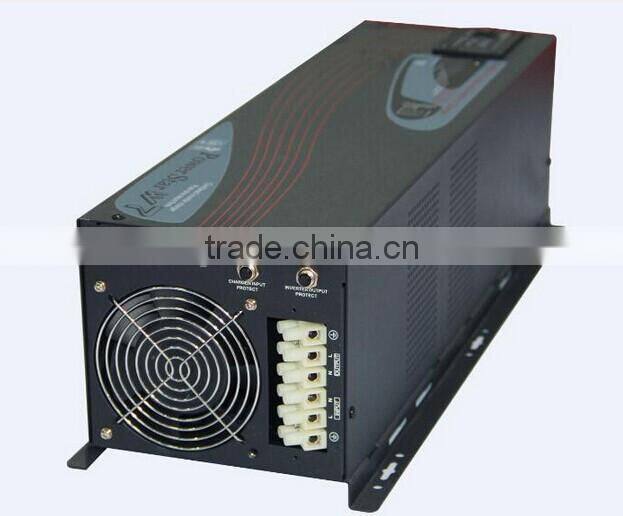

Pure Sine Wave Inverter With Battery Charger 1000watt to 6000watt 12volts 24volts 48volts
US$ 99 - 425
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CAP
Model Number:
1000W-6000W
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
On-grid Solar Inverter Pure Sine Wave Inverter With Built in MPPT Charger Grid Tie Inverter 2000w 4000w 6000wUS$ 99 - 599MOQ: 1 Piece -
1kw -6kw Micro Inverter Solar Power Inverter With Mppt ControllerUS$ 159 - 689MOQ: 1 Piece
-
24V DC 220V AC 3000W 4000W 5000W Power InverterUS$ 229 - 799MOQ: 1 Piece
-
5kw 6kw Pure Sine Inverter Circuit Diagram With ChargerUS$ 159 - 689MOQ: 1 Set
-
2016 Cheap Price 3000w 48v 120v Pure Sine Wave Power Inverter/chargerUS$ 244 - 252MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CAP
Model Number
1000W-6000W
Output Power
1 - 200KW
Output Type
Single
Size
442x218x179mm, 1kw to 6kw
Weight
22kg
Input Voltage
24V
Output Voltage
220V
Type
DC/AC Inverters
Output Frequency
50-60HZ
Output Current
40A
pure sine wave inverter with built in battery charger
Product Description
Features:
- Pure sine wave output, available for sensitive load
- 4-step progressive charging, 7 battery type selector
- Fast and powerful charger with 30A and 70A
- Accept generator’s energy output
- High power factor
- Automatically transfer between battery and line modes
- Microprocessor control guarantees high reliability
- Bypass without battery connected
- Remote control function
Data
-
Model No. 10001(2)
20001(2,4)
30001(2,4)
40002(4)
50002(4)
60002(4)
Nominal Power 1000W
2000W
3000W
4000W
5000W
6000W
AC Input Phase & waveform Single phase & sinewave Voltage 120VAC/230VAC Acceptable Voltage 194-243VAC164-243VAC(wide mode) Line Low Transfer 85V±4%/184(154 wide mode±4%) Line Low Return 95V±4%/194(164 wide mode±4%) Line high Transfer 135V±4%/253±4% Line high Return 127V±4%/243±4% Frequency 50Hz or 60Hz (auto sensing) Line Low Transfer 47Hz for 50Hz,57Hz for 60Hz Line high Transfer 55Hz for 50Hz,65Hz for 60Hz Output Phase & waveform Single phase & sinewave(bypass mode sync to input) Voltage 230VAC(bypass mode sync to input) Voltage Regulation ±10%rms(bypass mode sync to input) Frequency 50Hz±0.3Hz(bypass mode sync to input) Crest Power 3 times of ratings Short Circuit Protection Yes,shutdown after 10 minutes Power Factor 0.9-1.0 DC Input Battery Voltage 12V/24V
12V/24V/48V
24V/48V

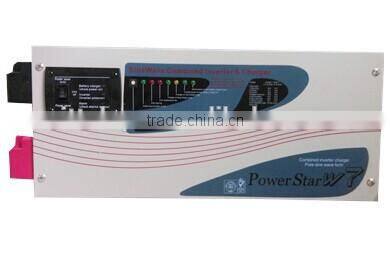

Minimum Start Voltage 10V for 12V,20V for 24V,40V for 48V Low Battery Alarm 10.5V for 12V,21V for 24V,42V for 48V Low Battery Transfer 10V for 12V,20V for 24V,40V for 48V High Voltage Alarm 16V for 12V,32V for 24V,64V for 48V Max Charging Current 70A35A Over Charge Voltage 15.7V for 12V,31.4V for 24V,62.8V for 48V Transfer Efficiency line Mode >95% Battery Mode >88% power saver Available when the load is less than 25 Watts Indicators 7-LED Display From the right to the left,LED1 line mode (green lighting),LED2 inverter mode
(green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged
(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded
shutdown(red lighting),LED7 Saving Mode(green lighting)3-LED Display Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) Switch selector Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is
turning the inverter off.Audible Alarm Sounding when the heatsink's tem is over 105C and shutdown after 30 seconds. Protections low battery,over charging,over temp,over load Communications RS-232/USB(custom-made) Enviromental Operating Environment 0-40C,0-90%RH(non-condensing) Audible Noise <60dB Physical Net Weight(KG) 18
20
22
35
38
40
Dimension,D X W X H(mm) 218X179X442
218X179X598
*Specifications are subject to change without prior notice.

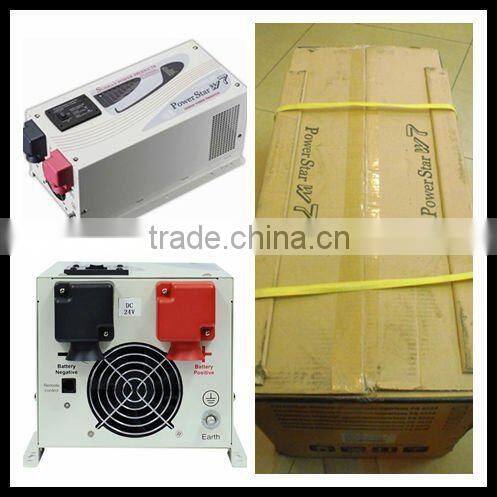

Packaging & Shipping
