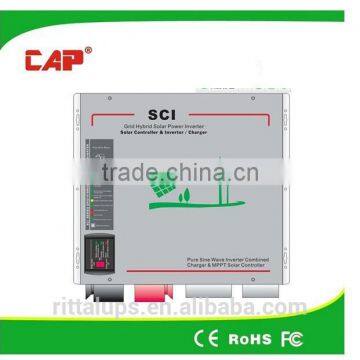

1kw 3kw 5kw 6kw Off grid power inverter
Specifications
1.inverter hybrid solar controller with DC/AC pure sine wave output
2.Wide input voltage range
3.PFC for charger
4.MPPT topology
5.CE, ISO, RHOS certertification
solar hybrid inverter--Pure sine wave off grid inverter
Features:
- Pure sine wave output, available for sensitive load
- 4-step progressive charging, 7 battery type selector
- Fast and powerful charger with 35A and 70A
- Accept generator’s energy output
- High power factor
- Automatically transfer between battery and line modes
- Microprocessor control guarantees high reliability
- Bypass without battery connected
- Remote control function
Protection against:
- Over load, over temperature, over charging, low battery
- Reverse connection(optional by hard connector)
- blackouts
| Model No. | SCI1000 |
SCI1500 |
SCI2000 |
SCI3000 |
SCI4000 |
SCI5000 |
SCI6000 |
| Nominal Power | 1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
6000W |
| AC Input | |||||||
| Phase & waveform | Single phase & Pure sinewave | ||||||
| Voltage | 110/120/220/230/240VAC | ||||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | ||||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | ||||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | ||||||
| Line high Transfer | 135V±4%/253±4% | ||||||
| Line high Return | 127V±4%/243±4% | ||||||
| Frequency | 50Hz or 60Hz (auto sensing) | ||||||
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz | ||||||
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz | ||||||
| AC Output | |||||||
| Phase & waveform | Single phase (utility or generator) & pure sine wave(bypass mode sync to input) | ||||||
| Voltage | 110/120/220/230/240VAC (bypass mode sync to input) | ||||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | ||||||
| Frequency | 50Hz±0.3Hz 60Hz ±0.3Hz(bypass mode sync to input) | ||||||
| Crest Power | 3 times of ratings | ||||||
| Short Circuit Protection | Yes,shutdown after 10 minutes | ||||||
| Power Factor | 0.9-1.0 | ||||||
| DC Input | |||||||
| Battery Voltage | 12V/24V |
12V/24V/48V |
24V/48V |
||||
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | ||||||
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | ||||||
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | ||||||
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | ||||||
| Max Charging Current | 70A35A | ||||||
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | ||||||
| Transfer Efficiency | |||||||
| line Mode | >95% | ||||||
| Battery Mode | >88% | ||||||
| power saver | Available when the load is less than 25 Watts | ||||||
| Indicators | |||||||
| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded shutdown(red lighting),LED7 Saving Mode(green lighting) |
||||||
| 2-LED Display(MPPT) | Power,CHG.Mode | ||||||
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) | ||||||
| LCD Display | Input Voltage,Output Voltage,Frequency,Battery Voltage,Load |
||||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
||||||
| Working mode | AC Power Priority(1-6)/Battery Power Priority(7-9) | ||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105C and shutdown after 30 seconds. | ||||||
| Protections | low battery,over charging,over temp,over load | ||||||
| Communications | RS-232/USB(custom-made) | ||||||
| Enviromental | |||||||
| Operating Environment | 0-40C,0-90%RH(non-condensing) | ||||||
| Audible Noise | <60dB | ||||||
| Physical | |||||||
| Net Weight(KG) | 18 |
20 |
20 |
22 |
35 |
38 |
40 |
| Dimension,D X W X H(mm) | 486*400*181 |
486*432*181 |
|||||
| *Specifications are subject to change without prior notice. | |||||||
The solar inverter has been made to 7kw, 8kw,9kw and 10kw, 12kw, pls contact for the detail information.
Factory picture:
Quality controller Applications:
Computer center,network center,communication system,automation control system or other critical system ect.
TCT: CE Certificate
Customers Service:
(1)Warranty :
Our product warranty is valid for 2 years after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
(2)Lead time:
a.Sample orders(1-20pcs) will be delivered from our factory within 3-5 working days .
b.Bulk orders will be delivered from our factory within 10-20 working days.
(3)shippment :
By sea ,airway , EMS, DHL, FedEx, TNT, UPS or other express.
(4)Payment: T/T (Telegraphic transfer), and Western Union
Contact us:
CAP power produce green stable high quality inverter ,solar system, solar controller, portable solar system,
we light your life,light up the world,we grow up everyday,join us !!
Pls feel free to contact me for favorable price!!
Miss Fu
Skype: rittalups5
QQ: 2355552470
Tel: +86-13580432763 (whatsapp/Wechat)
/ www.rittalups.en.china.cn
Email Me!!
Company Product:
Power inverter 1kw-20kw
Solar inverter: 1kw-12kw
High frequency solar inverter: 200w-3000w
On Grid /grid tie inverter: 1kw-6kw
Solar controller: 10A-100A (MPPT function)
Portable solar energy system: 100w-3kw
Pls contact us freely!
