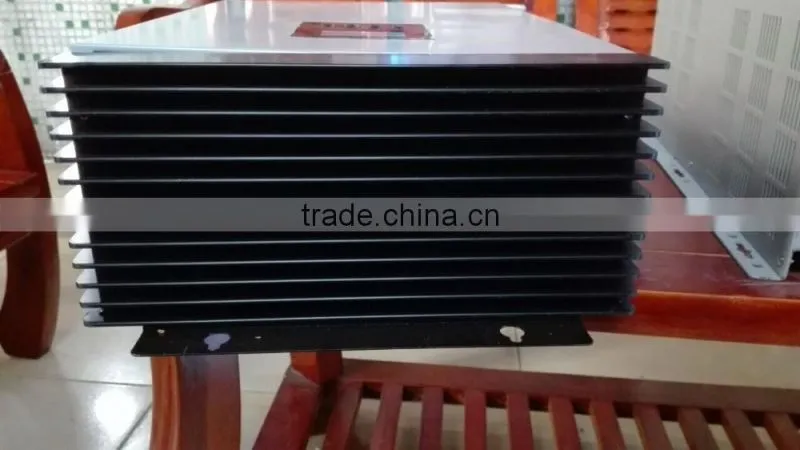

hybrid solar inverter 3kva 24v 230v built in mppt solar controller
SPECIFICATIONS
Table 1 Line Mode Specifications
|
INVERTER MODEL
|
1KVA 24V
2KVA 24V
3KVA 24V
1KVA 48V
3KVA 48V |
2KVA 24V Plus
3KVA 24V Plus
2KVA 48V Plus
3KVA 48V Plus |
4KVA
5KVA
6KVA |
|
Input Voltage Waveform
|
Sinusoidal (utility or generator)
|
||
|
Nominal Input Voltage
|
120Vac or 230Vac
|
||
|
Low Loss Voltage
|
95Vac± 7V or 170Vac± 7V (UPS) 65Vac± 7V or 90Vac± 7V (Appliances) |
||
|
Low Loss Return Voltage
|
100Vac± 7V or 180Vac± 7V (UPS); 70Vac± 7V or 100Vac± 7V (Appliances) |
||
|
High Loss Voltage
|
140Vac± 7V or 280Vac± 7V
|
||
|
High Loss Return Voltage
|
135Vac± 7V or 270Vac± 7V
|
||
|
Max AC Input Voltage
|
150Vac or 300Vac
|
||
|
Nominal Input Frequency
|
50Hz / 60Hz (Auto detection)
|
||
|
Low Loss Frequency
|
40± 1Hz
|
||
|
Low Loss Return Frequency
|
42± 1Hz
|
||
|
High Loss Frequency
|
65± 1Hz
|
||
|
High Loss Return Frequency
|
63± 1Hz
|
||
|
Output Short Circuit Protection
|
Line mode: Circuit Breaker Battery mode: Electronic Circuits |
||
|
Efficiency (Line Mode)
|
>95% ( Rated R load, battery full charged )
|
||
|
Transfer Time
|
10ms typical (UPS); 20ms typical (Appliances |
||
|
Output power derating: When AC input voltage drops to 95V or 170V depending on models, the output power will be derated. |
|
||
Table 2 Inverter Mode Specifications:
|
INVERTER MODEL
|
1KVA 24V
2KVA 24V
3KVA 24V
2KVA 24V Plus
3KVA 24V Plus |
1KVA 48V
3KVA 48V
2KVA 48V Plus
3KVA 48V Plus |
4KVA
5KVA |
||
|
Rated Output Power
|
1KVA/0.8KW 2KVA/1.6KW 3KVA/2.4KW |
1KVA/1KW 2KVA/1.6KW 3KVA/2.4KW |
4KVA/3.2KW 5KVA/4KW
|
||
Output Voltage Waveform |
Pure Sine Wave
|
||||
Output Voltage Regulation |
110/120VAC±5% or 230Vac±5%
|
||||
Output Frequency |
60Hz or 50Hz
|
||||
|
Peak Efficiency
|
90%
|
||||
|
Overload Protection
|
5s@≥150% load; 10s@110%~150% load
|
||||
|
Surge Capacity
|
2* rated power for 5 seconds
|
||||
|
Nominal DC Input Voltage
|
24Vdc
|
48Vdc
|
|||
|
Cold Start Voltage
|
23.0Vdc
|
46.0Vdc
|
|||
|
Low DC Warning Voltage @ load < 20% @ 20% ≤ load < 50% @ load ≥ 50%
|
22.0Vdc
21.4Vdc
20.2Vdc
|
44.0Vdc
42.8Vdc
40.4Vdc
|
|||
|
Low DC Warning Return Voltage @ load < 20% @ 20% ≤ load < 50% @ load ≥ 50%
|
23.0Vdc
22.4Vdc
21.2Vdc
|
46.0Vdc
44.8Vdc
42.4Vdc
|
|||
|
Low DC Cut-off Voltage @ load < 20% @ 20% ≤ load < 50% @ load ≥ 50%
|
21.0Vdc
20.4Vdc
19.2Vdc
|
42.0Vdc
40.8Vdc
38.4Vdc
|
|||
|
High DC Recovery Voltage
|
29Vdc
|
58Vdc
|
|||
|
High DC Cut-off Voltage
|
31Vdc
|
62Vdc
|
|||
No Load Power Consumption |
<25W
|
<50W
|
|||
Saving Mode Power Consumption |
<10W
|
<15W
|
|||
