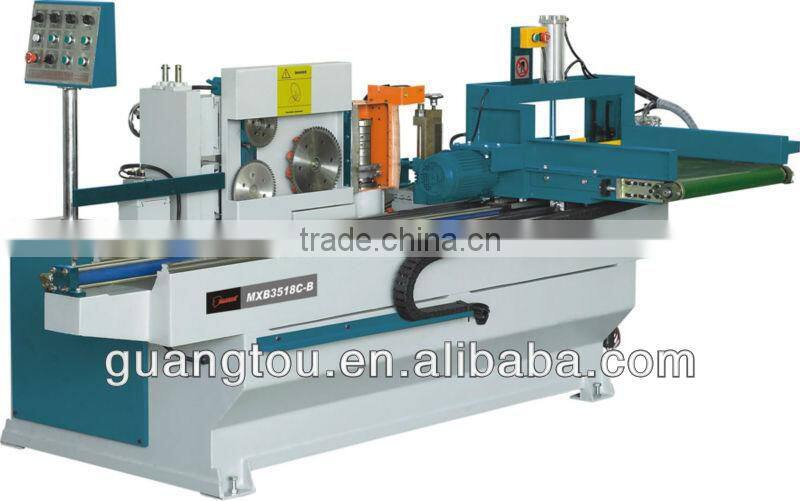

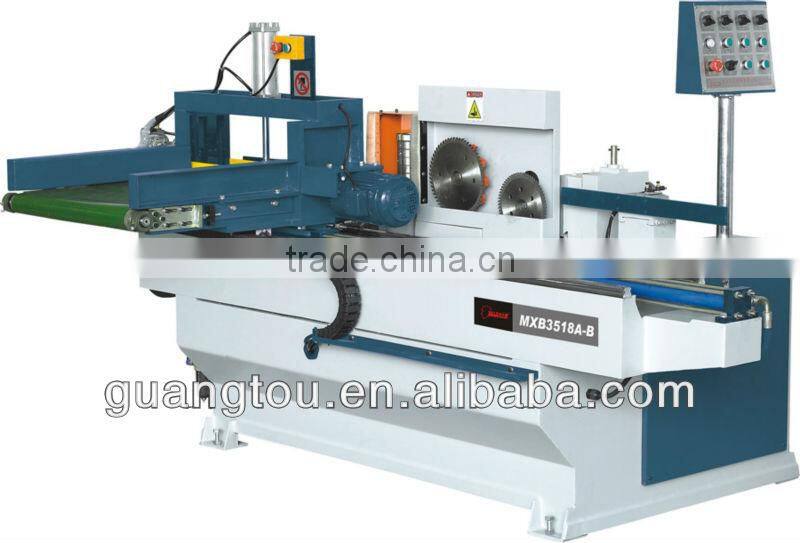

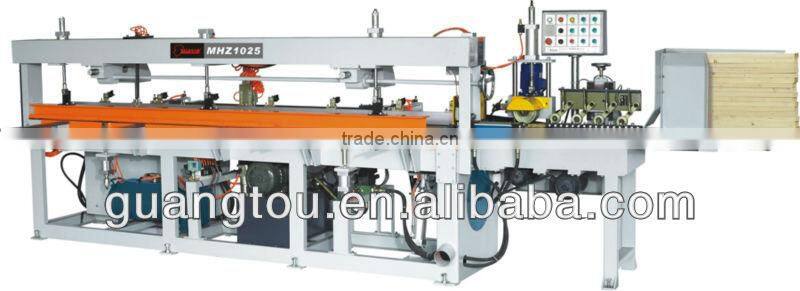

Semi-auto Finger Jointer Machine

Semi-auto Finger Jointer Machine thumbnail-1
Semi-auto Finger Jointer Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Bald
Contact Supplier Request Quote Chat Now
Bald Woodworking Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name Bald
Model Number RL-590C
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1) Semi-auto combination production line
2) two sets of the finger joint shaper
3) one set for the finger jointer

Semi-auto finger jointer machineSemi-auto finger jointer machineSemi-auto finger jointer machine

  Finger tenon jointer
MHZ1546/1550/1560		   Finger tenon shaper
MXB3518A-B		   Finger tenon shaper
MXB3518C-B
Max.wokring length 4600mm/5000mm/6200mm   900mm   900mm
Max.wokring windth&height Max.width:150mm   Width:590mm   Width:590mm
Min.width:75mm   Height:180mm   Height:180mm
Feeding speed 70m/min
Conveyor motor power     400w   400w
Saw blade diameter φ355mm   φ200mm   φ200mm
Rotary speed 2825r.p.m   2825.r.p.m   2825.r.p.m
Motor power 2.2kw   0.75kw   (0.75kwx2)kw
Saw blade(rear) diameter     φ250mm   φ250mm
Rotary speed     2840.r.p.m   2840.r.p.m
Motor power     4kw   4kw
Miller cutter diameter     φ240mm   φ240mm
Tenon spindle diameter     φ50mm   φ50mm
Rotary speed     6750.r.p.m   6750.r.p.m
Motor power     11kw   11kw
Oil pump output ure 140kg/cm2   70kg/cm2   70kg/cm2
Oil pump motor power 4kw   2.2kw   2.2kw
Working air pressure 0.8Mpa   0.8Mpa   0.8Mpa
Rating voltage 380V 50Hz 3ph   380V 50Hz 3ph   380V 50Hz 3ph
Machine Dimension 6670X1250X1600mm   2800x1650x1450mm   3300x1900x1450mm
7100x1250x1600mm
8500x1250x1600mm
N.W 4.6m:7240kgs
6.2m:7580kgs
