2.45GHz/915MHz Microwave Transmitting waveguide component

Specifications

Microwave Transmiting Systems are designed to use in waveguide components for industry heating;

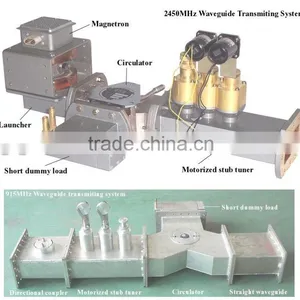

   A full complement of waveguide components are also available for both 2450 MHz and 915 MHz sources. The standard waveguide is WR340 (BJ26) for 2450 MHz sources, but WR284 (BJ32) or WR430 (BJ22) adaptors are available; WR975 for 915 MHz sources. The flanges of WG components will be made in accordance with the customers requirements. Custom lengths are available upon request. All 2450 MHz WG components are made in brass, all 915 MHz in aluminum. All 2450 MHz WG components (except 3 port circulator and the short dummy load which are rated separately) are rated for max 10 kw power handling capacity. Most 915 MHz WG components are rated for power capacity and those without rating can handle 30 kw power capacity.
